| Advertisement No: | #00253610 |
| Category: | Discharge Unit |
| Brand: | Erichhahn |
| Model Type: | ARU |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | 75.Yıl Mah. / Odunpazarı / Eskişehir |
| Sales Detail: | Bank Transfer, Credit Cart, Negotiated |
| Delivery Status: | Made to Order |

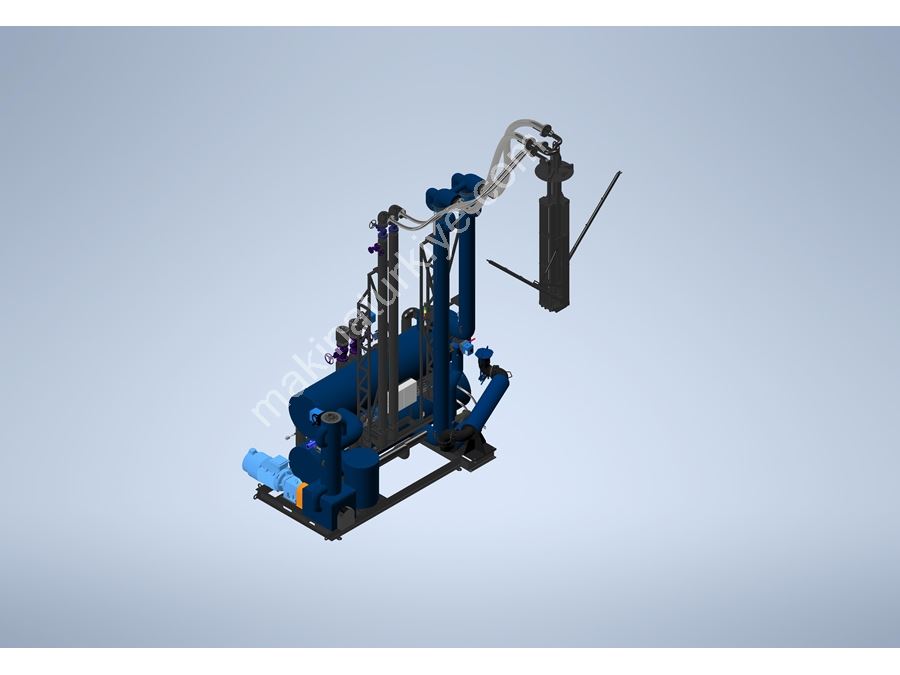

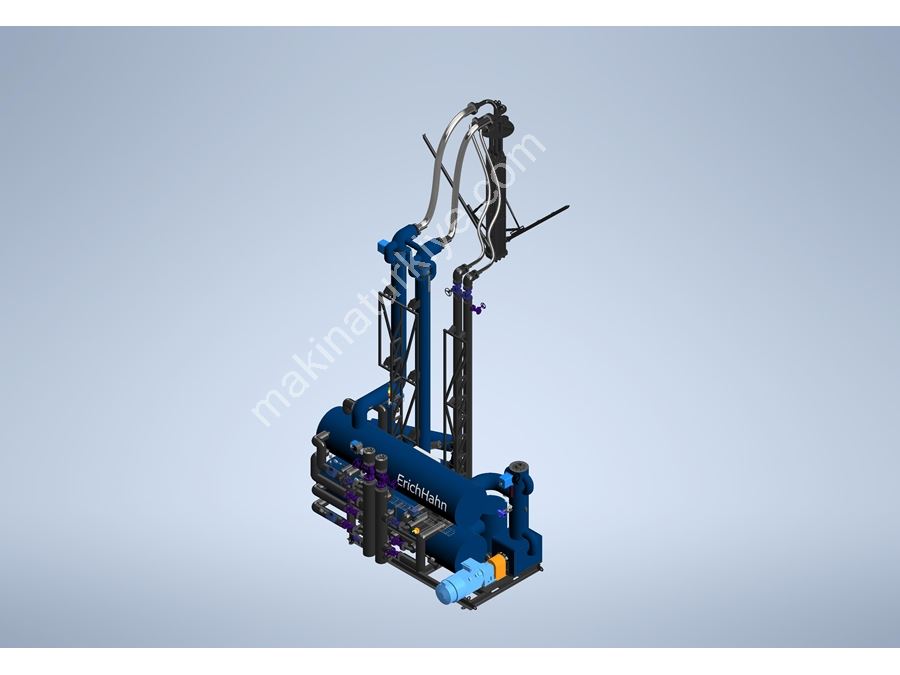

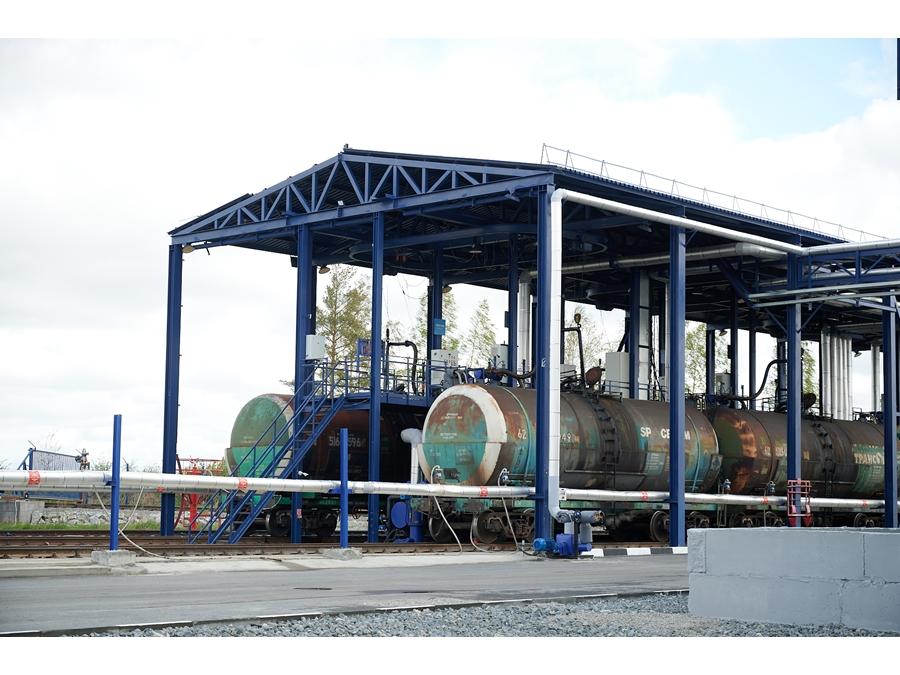

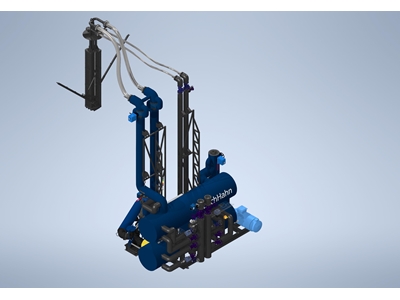

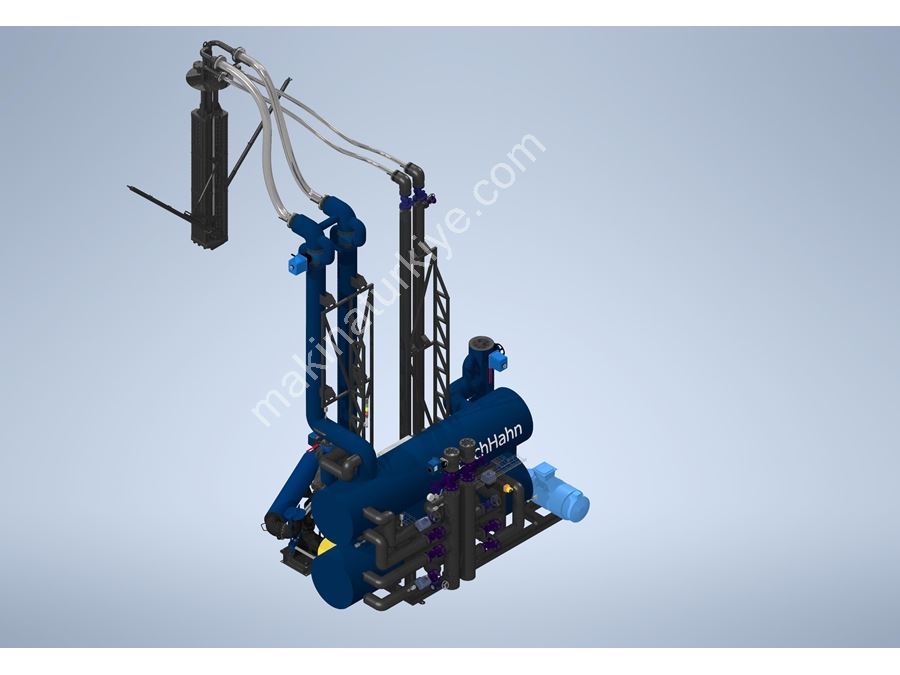

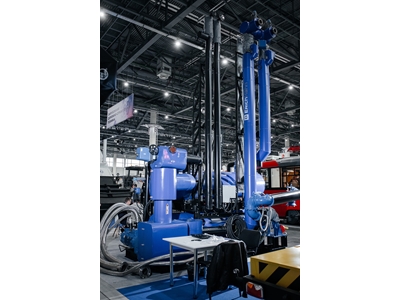

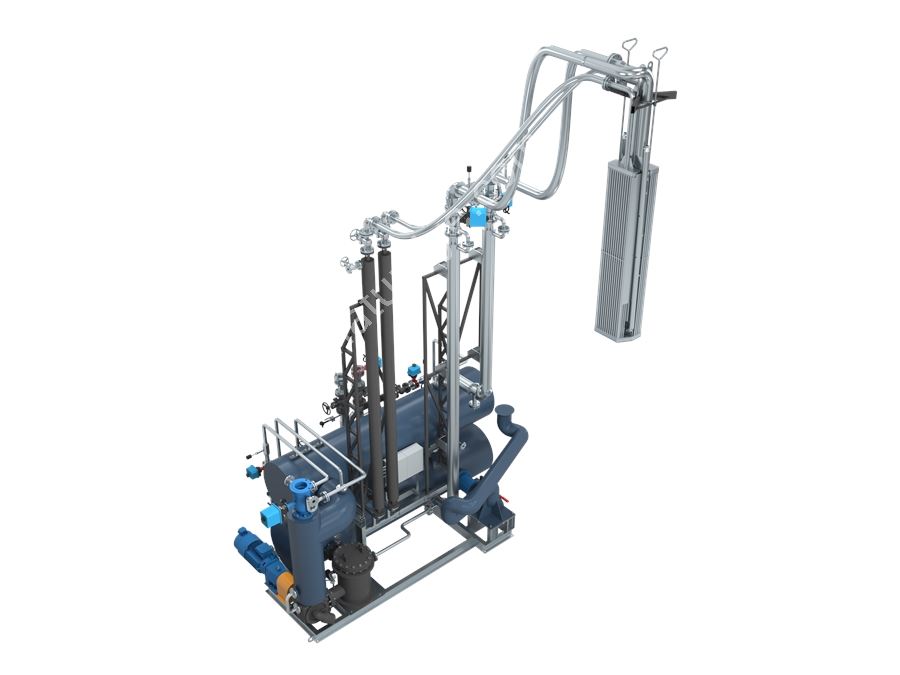

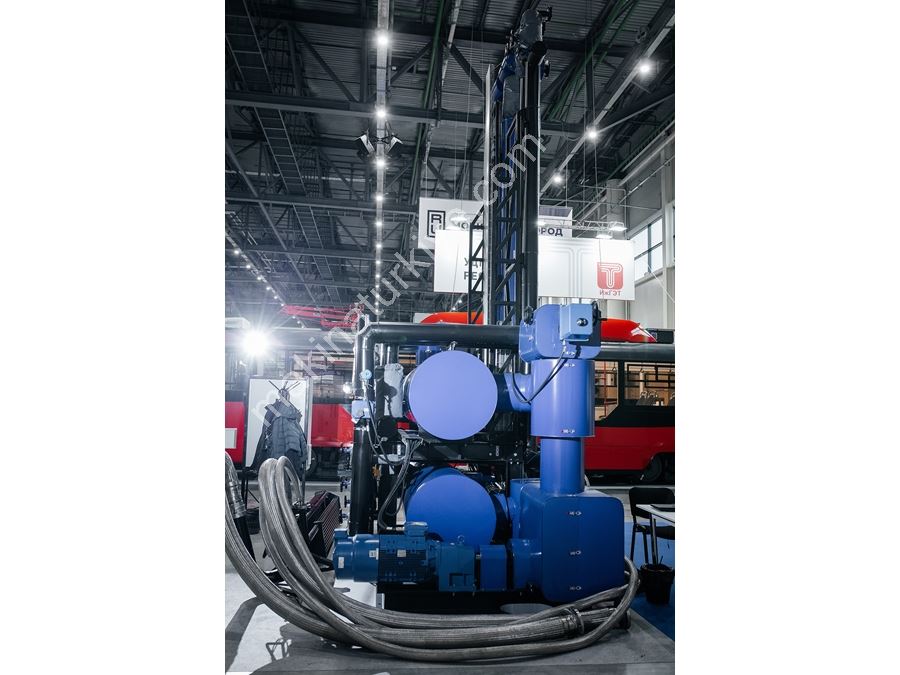

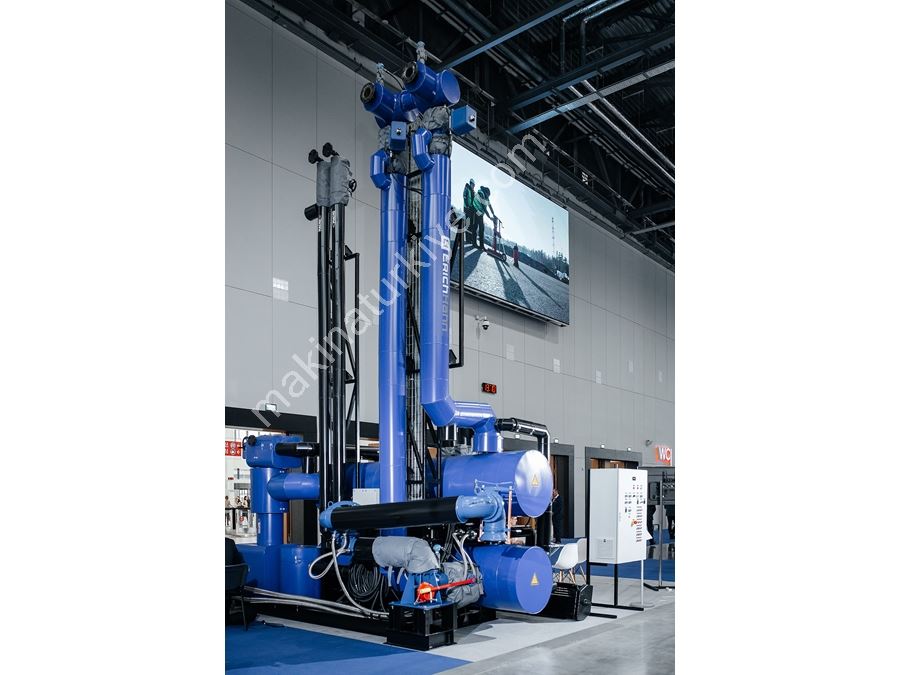

It is designed for the rapid heating and discharge of viscous and hardened materials from tank cars on railway lines. The discharge time depends on the season and region in which the operation is performed. In summer, bitumen is discharged in 7 to 17 hours, while in winter this time varies between 10 to 24 hours. Advantages of ErichHahn ARU Purpose of Use Specifications Equipment Installation Liquid type Viscous petroleum product or material with similar physical properties External environmental conditions Medium Ambient temperature, °C -40 to +40 Maximum operating temperature, °C 180 Operating pressure, MPa 0.6 Heat transfer capacity, kW 350 Discharge and heating time of heavy (dark) oil from 4-axle railway wagons at ambient temperatures: +25°C 7 to 17 hours -40°C 10 to 24 hours Gear motor Motor power, kW 30 Revolution speed, rpm 405 Current frequency, Hz 50 Electric voltage, V 380 Protection class IP55 Clutch Flexible gear belt clutch Pump Gear type Filter connection, DN, mm 150 Nominal capacity, m³/hour 90 Overpressure valve Provided Filter Mesh diameter, mm 8 Heating system Heat type Hot oil Nominal diameter of connection flanges, DN, mm 40 Maximum oil temperature at 0.6 MPa, °C 200 Automation system Provided Overall dimensions Length, L, mm 4700 Width, W, mm 2700 Height, H, mm 6150 Maximum weight, kg 7100 Min. service life, min. years 10 Country of origin TurkeyErichHahn ARU Railway Tank Automatic Discharge Unit
It is designed for the rapid heating and discharge of viscous and hardened materials from railway tankers.
Erichhahn ARU Technical Specifications
