| Advertisement No: | #00095629 |
| Category: | Laminating Machine |
| Brand: | Topkapı |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Other |
| Location: | Yenikent Mah. / Esenyurt / İstanbul |
| Warranty Status: | 2 Yıl Guaranteed |
| Sales Detail: | Bank Transfer, Negotiated |
Product Information:

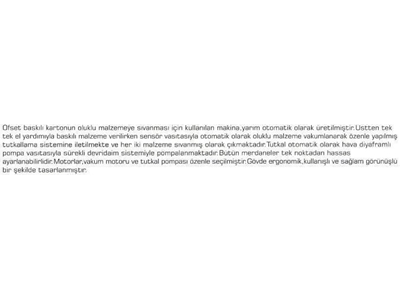

The machine used for laminating offset printed cardboard to corrugated material is semi-automaticly produced.
While the printed material is fed manually from the top, the corrugated material is conveyed to the carefully made gluing system through vacuum with the help of a sensor and both materials come out laminated.
The glue is constantly pumped with an air diaphragm pump in a continuous circulation system. All rollers can be precisely adjusted from a single point.
Motors, vacuum motor and glue pump are meticulously selected. The body is designed to be ergonomic, practical and sturdy in appearance.
Technical Specifications:
Cardboard Thickness: 120-400 gr/m2
Cardboard Feeding: Manual
Cardboard Size (min): 500x500mm
Cardboard Size (max): 1400x1200mm
Flute Thickness: 0.8-8mm
Flute Feeding: Automatic
Flute Size (min): 500x500mm
Flute Size (max): 1400x1200mm
Glue Feeding: Automatic with Vacuum
Main Motor: 2.2 Kw
Flute Feeding System Motor: 1.5 Kw
Vacuum Motor: 1.1 Kw Siemens
Glue Type: Dextrin / PVA
Glue Pump: Air Diaphragm Ran Pump
Speed: 3700 m/h
Machine Size: 2500x2500x1750
Machine Weight: 1750 Kg
