Advertisement No: | #00222427 |

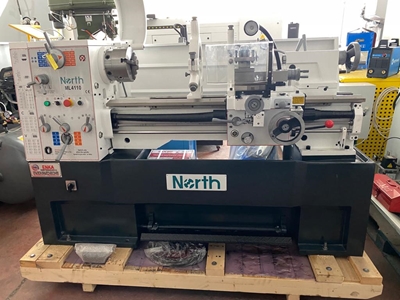

Category: | Universal Lathe Machine |
Brand: | North |
Model Type: | ML4110 Ø 400X1000 |
Product Type: | For Sale |
Product Status: | Service |
Origin: | Turkey |
Delivery Status: | In stock |
Location: | İkitelli OSB Mah. / Başakşehir / İstanbul |
Sales Detail: | Bank Transfer, Credit Cart |
Top Slide Diameter
: 410 mm
Carriage Diameter
: 255 mm
Gap Diameter
: 580 mm
Top Width
: 250 mm
Distance Between Centers
: 1000 mm
Gap Length
: 190 mm
Spindle Nose
: D1-6
Spindle Bore Diameter
: 52 mm
Spindle Taper
: 6 morse
Spindle Speed Range
: 16
Spindle Speed Range
: 45-1800 rpm
Longitudinal Feed Rate
: 0.05 - 1.7 mm/rev
Cross Feed Rate
: 0.025 - 0.85 mm/rev
Maximum Cross Support Movement
: 210 mm
Maximum Transversal Support Movement
: 140 mm
Pencil Holder Size
: 20x20 mm
Number of Metric Threads
: 39
Metric Thread Pitch
: 0.2 - 14 mm
Number of Inch Threads
: 45
Inch Thread Pitch
: 2-72 TPI
Module Thread Number
: 18
Module Thread Pitch
: 0.3-3.5 mm
Diametric Thread Number
: 21
Diametric Thread Pitch
: 8-44 DP
Counter-Point Pinol Movement
: 120 mm
Counter-Point Taper
: MT4
Main Motor Power
: 3.3 KW
Coolant Pump Power
: 0.1 KW
Dimensions WxDxH
: 1940 x 850 x 1.320 mm
Net Weight
: 1,160 kg
ACCESSORIES
: Telescopic Chuck Guard
: Two-Speed Main Motor
: Chip Guard
: Rotating Point
: Fixed Point
