| Advertisement No: | #00139738 |
| Category: | The Pincer |
| Brand: | Kanmak |
| Model Type: | KM-650 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Hacıkadın Mah. / Fatih / İstanbul |
| Sales Detail: | Credit Card Installments, Bank Transfer, Credit Cart |
| Delivery Status: | In stock |

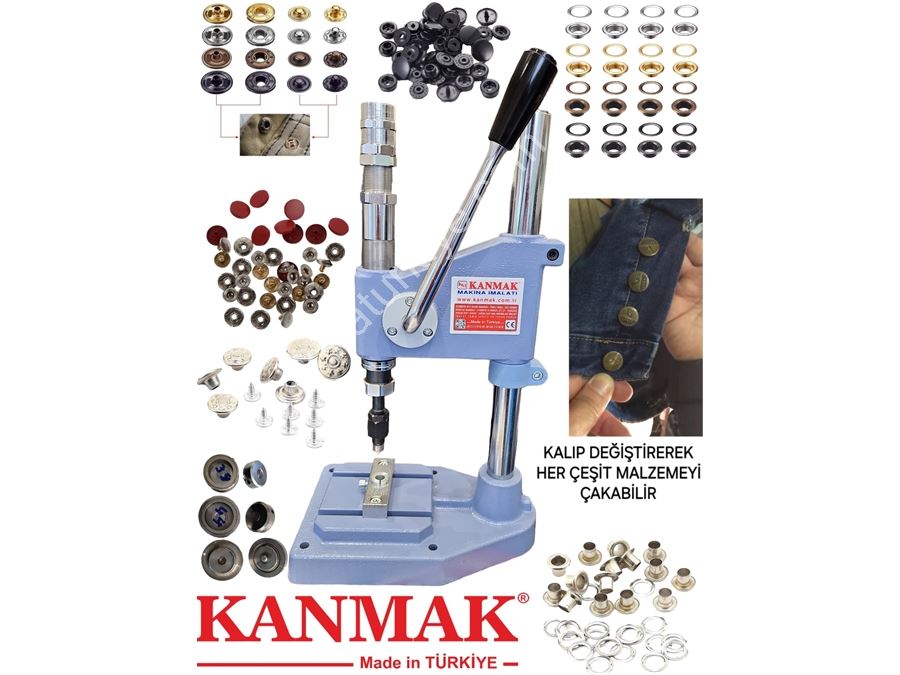

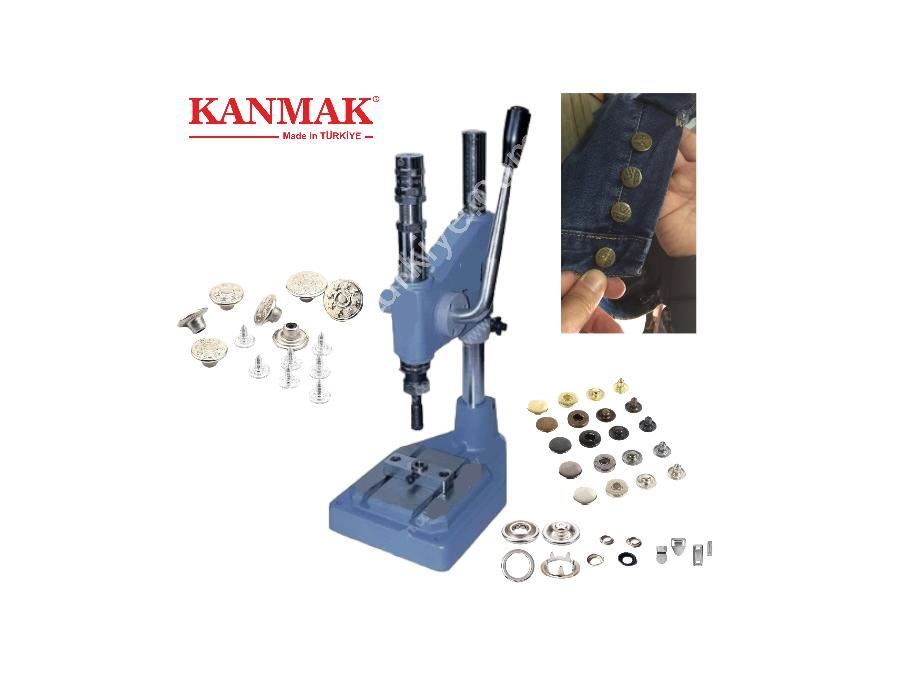

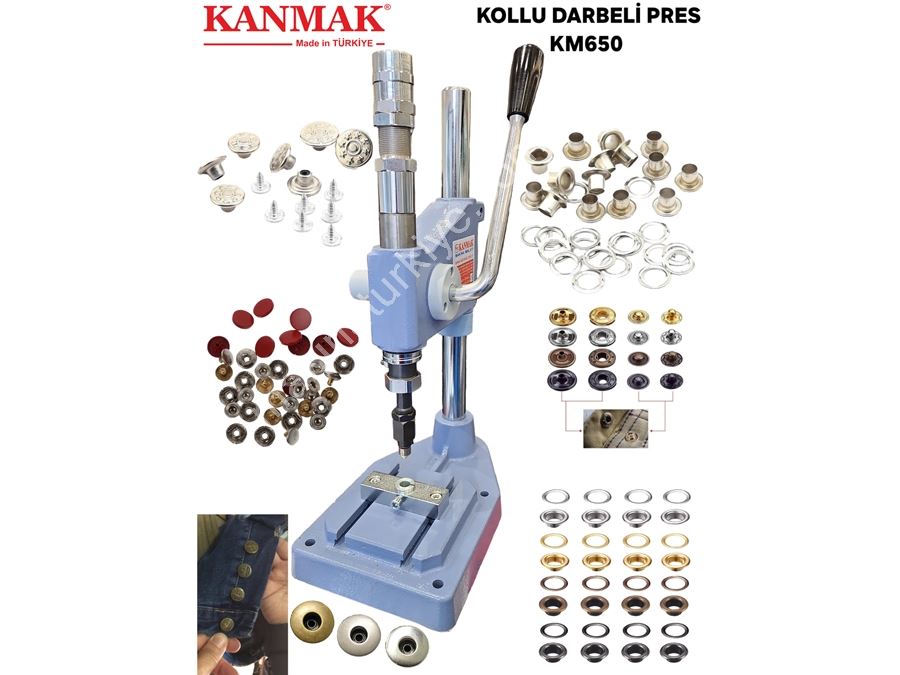

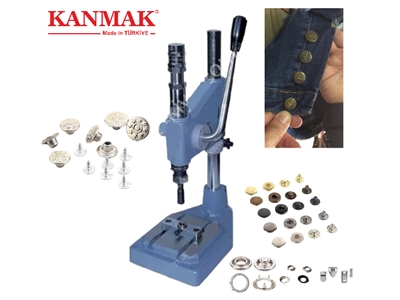

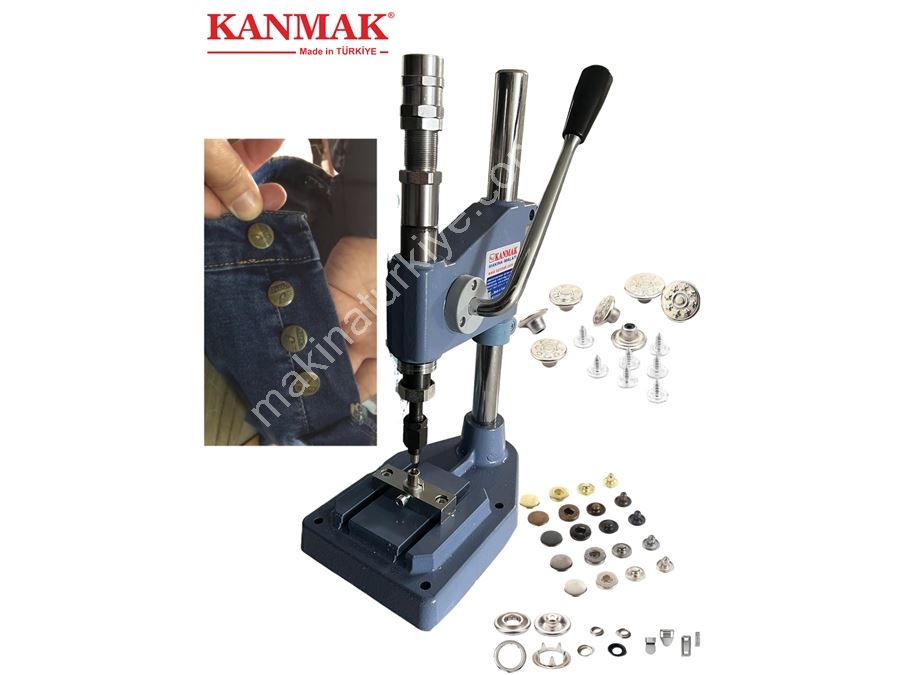

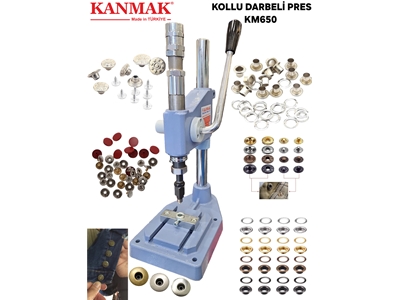

Lever Impact Press Wide Base Kanmak KM 650 Our KM 650 lever impact press is made of cast iron and is processed by our expert team on our CNC machines. The machine consists of two cast parts and height adjustment can be made. The iron components are produced with heat treatment and parts that come out of quenching. The use of our machine is very easy; after attaching the upper and lower molds and making the center adjustment, it is ready for use. The center adjustment is made by loosening the Allen screw located at the back of the upper body, allowing only left-right and height adjustments. The apparatus to which the lower mold is connected can be adjusted to align front and back. After these adjustments, you can place your material in the upper and lower slots and perform the punching process. Changing the mold is a one-minute process. The maintenance of the machine is very simple; the spindle system that goes up and down is cleaned nicely with grease oil once a week, and then the lubrication process is carried out. Areas of Use Used by advertisers, sign makers, poster makers, eyelet makers, textile workers, eyelet, rivet, button covering, hook, snap rivet, trop, kılıkıt, etc. in industries such as electrical and electronic assembly, door and window assembly; in aluminum, blinds, packaging, etc.; in traffic plate registration; in marking, etc.; in automotive and printing, drilling, punching, hem bending, riveting, cosmetic and toy assembly. You can use it for all your jobs by changing the mold with a single machine. Technical Specifications Impact Force: max. 1300 kg / cm2 Our company that produces lever impact machines does not compromise on quality. Prices include VAT.
Part Height: 320 mm.
Column Diameter: Ø 36 mm.
Distance Between Spindles: 138 mm
Table Width: 160 x 160 mm
Jaw Hole: Ø 9 mm.
T Slots: 8 H 12 DIN 650
Dimensions: 640 X 380 X 170 mm
Weight: 27 kg.
