| Advertisement No: | #00116259 |
| Category: | Band Saw Machine |
| Brand: | Beka-Mak |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Başköy Mah. / Nilüfer / Bursa |
| Warranty Status: | 1 Yıl Guaranteed |
| Sales Detail: | Maturity occurs, Guaranteed Sale Available, Suitable for Leasing |
| Delivery Status: | 45 Day |

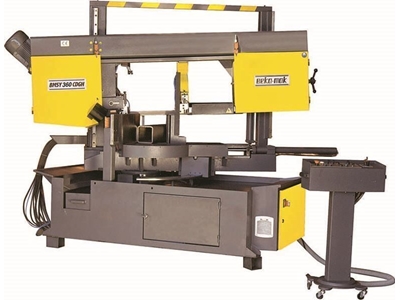

Yarı Otomatik Çift Açılı Kesim Sutunlu Şerit Testere Makinesi Beka-Mak (BMSY-360CDGH)
Ürün Açıklaması
Kesim kapasitesi 360x640 olan makinemiz, düz ve açılı kesimlerde
hızlı ve istenilen açılarda kesim gerçekleştirmek
için tasarlanmıştır.
BMSY 360CDGH ın hassasiyeti, yüzdelik açıları kesilebilmesine
imkan vermektedir.
BMSY 360CDGH otomatik kumanda sistemine sahiptir.
Tabla üzerinde bulunan merdaneler, malzemenin makine üzerinde
rahat hareket etmesi için tasarlanmıştır.
Sabit ve hareketli kol üzerine yerleştirilen hidrolik tertibat ile kesim
hızı iniş hızı otomatik olarak ayarlanarak hassas
bir kesim gerçekleştirilir.
Şerit durumu mekanik siviç sistemi ile kontrol altına alınmıştır.
Döner göbek sayesinde, malzemenin açısını değil kafanın açısı
değiştirilerek, azımsanmayacak kadar bir
alandan tasarruf sağlamıştır.
Üst gövde ve kol hareketi hassas lineer kayar yatakları ile
yapılmaktadır.
Teknik Detaylar
PARAMETRE
BİRİM
DEĞER
Yükseklik
mm
1910
Genişlik
mm
1200
Uzunluk
mm
3000
Ağırlık
kg
1635
Malzeme Besleme Yüksekliği
mm
800
Şerit Testere Ölçüsü
mm
5000x34x1,1
Kesme Hızları
m/min.
20 - 100
Soğutucu Motor
kW
0,12
Hidrolik Motor
kW
1,1
Ana Motor
kW
3
-45° Kare Kesme Kapasitesi
mm
360
-45° Lama Kesme Kapasitesi
mm
390 x 360
-45 Yuvarlak Kesme Kapasitesi
mm
360
-30° Kare Kesme Kapasitesi
mm
360
-30° Lama Kesme Kapasitesi
mm
510 x 360
-30° Yuvarlak Kesme Kapasitesi
mm
360
+60° Kare Kesme Kapasitesi
mm
270
+60° Lama Kesme Kapasitesi
mm
250 x 360
+60° Yuvarlak Kesme Kapasitesi
mm
310
+45° Kare Kesme Kapasitesi
mm
360
+45° Lama Kesme Kapasitesi
mm
390 x 360
+45° Yuvarlak Kesme Kapasitesi
mm
360
+30° Kare Kesme Kapasitesi
mm
360
+30° Lama Kesme Kapasitesi
mm
510 x 360
+30° Yuvarlak Kesme Kapasitesi
mm
360
Kare Kesme Kapasitesi
mm
360
Lama Kesme Kapasitesi
mm
640 x 360
Yuvarlak Kesme Kapasitesi
mm
360
Opsiyon Özellikler
Standart Özellikler
