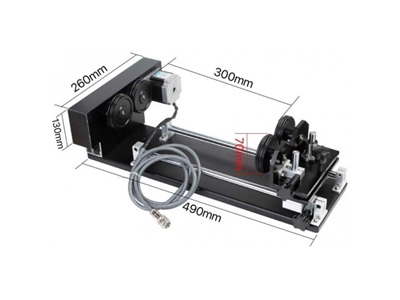

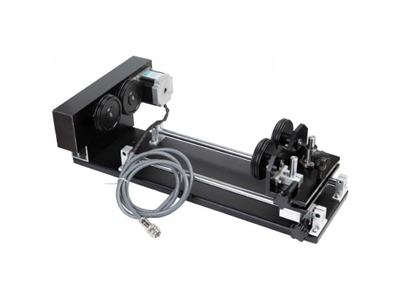

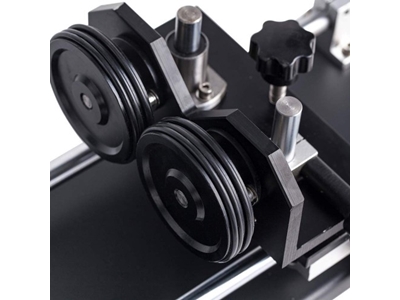

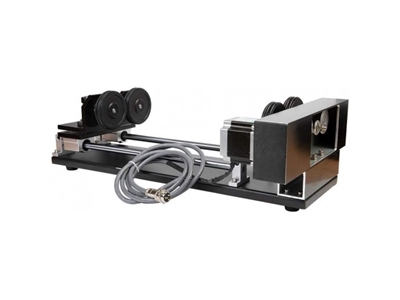

Rotary Axis Joint Our Standard Rotary Joint is ideal for engraving laser cylinder parts. It can be quickly and easily adjusted to size for a wide variety of items, from glasses to tumblers, wine bottles, flashlights, Anything round.

Feature:

Closed Loop Control, No More Lost in Steps, Up to Maximum Torque

Reduced Engine Heating and More Efficient

Smooth Movement and Super Low Engine Noise

Higher Torque and Higher Speed

No Tuning and Always Stable

Zero Speed ​​Stability

Features:

3 Phase Stepper Motor

Phase: 3 (Or 2 Phase Stepper Motor)

Step Angle: 1.2 Degree (1.8 for 2 Phase Stepper Motor)

Angle precision: plus or minus 5% (full step, no load)

Insulation Resistance: 100M ohm min.500VDC

Current/phase (A): 5.6A

Use of:

Match Drivers:

3DM580 / 3DM683 - 3 Stage

DM542 / DM556--2-Phase

Machine operating instructions

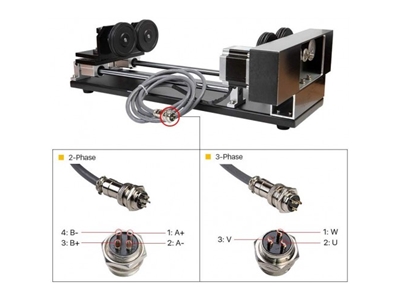

Step 1: Connect the motor to the drive on the rotary axis (Y axis on the machine). Please make sure the phase matches. If your motor driver on your machine is 2 phase (Port A+, A-, B+, B-), please select the machine for rotary axis. The port of 3 Phase motor is U, V and W.

Step 2: Enable Rotation in the software and set the diameter of the engraving piece and the Circle Stroke to the correct value for engraving. The reducer ratio for doner is 1:2.

Step 3: Do the carving. If you need further assistance, do not hesitate to contact the ABP LASER technical support team.
