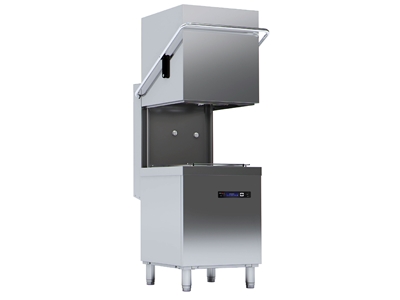

AD-125 Giyotin Tipi Bulaşık Yıkama Makinesi

DENOMINATION:

Hood-type dishwasher with digital control

DESCRIPTION :

- Hood-Type dishwashers - EVO Generation

- Constructed in stainless steel.

- Counterbalanced hood with handle and spring system.

- Double rotating wash and rinse system, top and bottom, in stainless

steel.

- 440 mm hood opening (Accepts GN 1/1 trays).

- 750 W wash pump providing high water flow.

- Rounded tank to facilitate washing and drainage.

- Stainless steel armoured heating elements in the wash tank and rinse

boiler.

- Multi-voltage: Allows the machine to be connected to a single-phase or

three-phase voltage network. (230 1N~/230 3~/400V 3N~).- AISI-304

stainless steel filter trays in the wash tank.

- Thermostatic control of temperatures (wash, 60°C, and rinse, 85°C).

- Thermal stop system which guarantees a rinse temperature of 85°C.

- Safety stop switch in hood opening.

- Safety thermostat.

- Water consumption per 2.4 litre cycle.

- Model for 500 x 500 mm baskets.

- Model with electronic and digital control.

- Digital display with information on programs, times and temperatures.

- Electronic programmer with help system for technical service.

- Rinse pump which guarantees a perfect hygiene result with complete

linear rinse cycle at 85°C. (EFFIRINSE) de acuerdo con las espe

cificaciones de seguridad e higiene de la norma DIN10512.

- 55s, 75s,120s, 480s and ´Glass´ wash cycles.

- ‘Glass’ wash program for glassware, complying with the safety and

hygiene specifications of regulation DIN10511.

- Theoretical maximum production of 65 baskets/hour (1170 plates/h).

- Program for tank emptying cycle.

- Double-walled Hood with special compressed insulating material.

- Tank with volume of 28 litres, with 2.1 kW heating element.

- Boiler with volume of 9 litres, with 9 kW heating element.

- Simultaneous tank and boiler heating.

- Maximum Total power: 11.85 kW (simultaneous).

- Drainage pump - power 70 W - tank emptying program.

- Rinse aid doser incorporated.

- Rinse aid doser incorporated.- Air Brake check valve system type AA

according to EN 1717/WRAS.

- IPX5 anti-humidity protection.

- 55s, 75s,120s and 480s wash cycles.

- Double-walled Hood with special compressed insulating material.

- Rinse pump - 150 W

- Built-in drain pump - power 95 W - drainage cycle

- Built-in detergent doser.

POSSIBLE OPTIONS :

- Electric connection for ships 440V

POSSIBLE ACCESSORIES :

- ACCESSORIES DISHWASHING

DIMENSIONS

X Width 630 mm X Gross width 765 mm

Y Depth 750 mm Y Gross depth 905 mm

Z Height 1465 mm Z Gross height 1610 mm

Net Weight 144,0 kg Gross Weight 164,0 kg

Net volume 0,659 m3 Gross volume 1,115 m3

ELECTRICITY TECHNICAL SPECIFICATIONS

Engine power 0,75 kW

Electric power 11,850 kW

Amperage (A) 19,3

Heating power 9,00 kW

Voltage 380-415V - 3N

Electric frequency 50Hz

MULTIPOWER

CONNECTION RATED

POWER (kW)

RATED

CURRENT (A)

BOILER

(kW)

TANK (kW)

230V, 1N~ 6,2 kW 27,4 A 4,5 kW 1 kW SIM

230V, 1N~ 8,15 kW 35,4 A 6 kW 1,4 kW SIM

400V, 3N~ 11,85 kW 19,3 A 9 kW 2,1 kW SIM

230V, 3~ 11,85 kW 31,1 A 9 kW 2,1 kW SIM

WATER TECHNICAL SPECIFICATIONS

Pressure H2O: 100-400kPa (1-4bar)

Water max consumption 60,00 L/h

CONNECTIONS TECHNICAL SPECIFICATIONS

230 V three-phase wiring 3X10+T - 63 A

Single-phase 230V wiring 2X16+T - 80 A

Three-phase +N 400V wiring 4X6+T - 40 A

Drain 1 diameter 2"

OTHERS

Noise level 72,00 dB
