Ankastre Soğuk Teşhir Ünitesi

DENOMINATION:

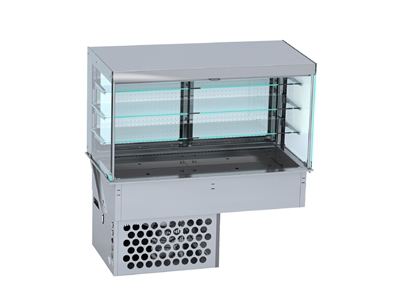

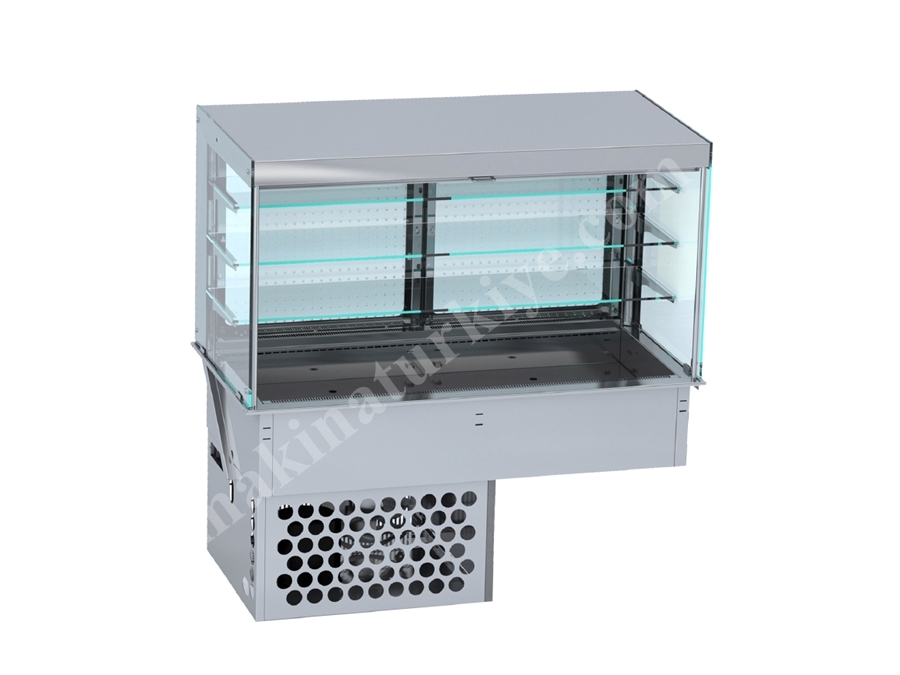

3-level cubic refrigerated ventilated display curtain customer side

swing doors service side 4 GN 1/1 capacity FVCR7-CT-4 230V 1N 50/60 Hz

climate class 4 cold group included refrigerant gas R455a

DESCRIPTION :

- Cubic refrigerated ventilated display specially designed to hold,

display and serve chilled food (e.g. fruits, desserts, yogurts, cold

appetizers, presented on plates/ramekins, etc.) and beverages (bottles,

cans) keeping displayed product at optimum temperatures during extended

service times, up to 24-hour operations.

- Previously refrigerated food is kept chilled for a limited duration of

2-3 hours when the display is open on the customer side.

- Manufactured in stainless steel with satin finish.

- Ventilated refrigerated well with height-adjustable base to display

pans with different heights. Flat display level and drainage area

slightly bent.

- Ventilated cooling system creates a constant flow of chilled air at

the back side of the display coming from the evaporator module fans. The

flow of cold air is then channeled into the shelves. In this way, a

curtain of chilled air, continuously renewed, encircles the food

ensuring a quicker drop to the working temperature and a uniform and

stable temperature across the display.

- Ventilated refrigeration system with high-performance electronic fans

and large area evaporators.

- Polyurethane insulation with ecological injection, CFC-free, with

high-density (40 kg/mÑ) allowing energy savings by reducing loss of cold

air.

- 8 mm thickness, tempered glass display sides to maximize product

display and increase work safety during service operations.

- 4500°K pure white LED light strips, with 14.5 w/m power, integrated on

the display top and sides.

- Control panel with digital thermostat, protected by the structure

perimeter, avoiding hindrances in their daily use.

- Control panel with 1-meter long cable, allowing to be installed on

another element, e.g, furniture under the drop-in element.

- Electronic thermostat, with digital display, to control and regulate

the temperature on the ventilated well at the desired set point and with

display light ON/OFF switch.

- Automatic defrost system that minimizes compressor workload and saves

energy.

- Stamped drain on the well, to discharge condensation water. A

connection from the drain to the sanitation network is compulsory.

- Intelligent evaporation system of defrost water and evaporation tray

as accessories. With level detector to minimize energy consumption by

activating the resistor only in presence of a certain amount of water.

- Robust structure with 13 mm thick overlap, once element is dropped-in

on the worktop, ensuring cleanness and aesthetics.

- Operating temperature: From 0 ºC to +4 ºC in the ventilated well. From

+4 ºC to +10 ºC in the display.

- Tempered glass shelves.

- Open in the customer side. Display cover outside service hours with

roll-down textile curtain.

- Hinged, 180º-opening folding doors at the back of the display for easy

loading / replacement operations.

DIMENSIONS

X Width 1440 mm X Gross width 1555 mm

Y Depth 720 mm Y Gross depth 840 mm

Z Height 1430 mm Z Gross height 1666 mm

Net Weight 116,0 kg Gross Weight 136,0 kg

Net volume 1,483 m3 Gross volume 2,176 m3

ELECTRICITY TECHNICAL SPECIFICATIONS

Electric power 1,090 kW

Amperage (A) 5,91A

Voltage 230V - 1N

Electric frequency 50/60Hz

GAS TECHNICAL SPECIFICATIONS

Gas type R455A

COLD TECHNICAL SPECIFICATIONS

Refrigeration power 1,605 kW

Climate class 4

Cooling gas load 820,000 g

CONNECTIONS TECHNICAL SPECIFICATIONS

Drain 1 diameter 1/2"

SERVICE TROLLEY ACCESSORIES

Cut-out Lenght (mm) 1415

Cut-out Width (mm) 690

Capacity (GN) 4 x GN1/1

Number of trays 4

Well type Ventilated refrigerated

Depth well (mm) 20 - 59 – 109

Service side display Swing doors

Customer side display Textile curtain

Shelf levels display 3

Height adjustable shelves yes

Bottle Ø 65 mm cap. in well 200

Ramekin Ø 130 mm cap. in well 50

Plate Ø 150mm capac. in well 37

Bottle Ø65mm cap. in display 438

Ramekin Ø130mm display 109

Plate Ø150mm cap. in display 82
