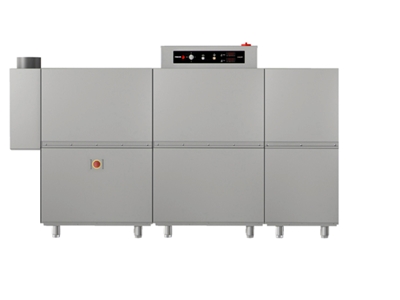

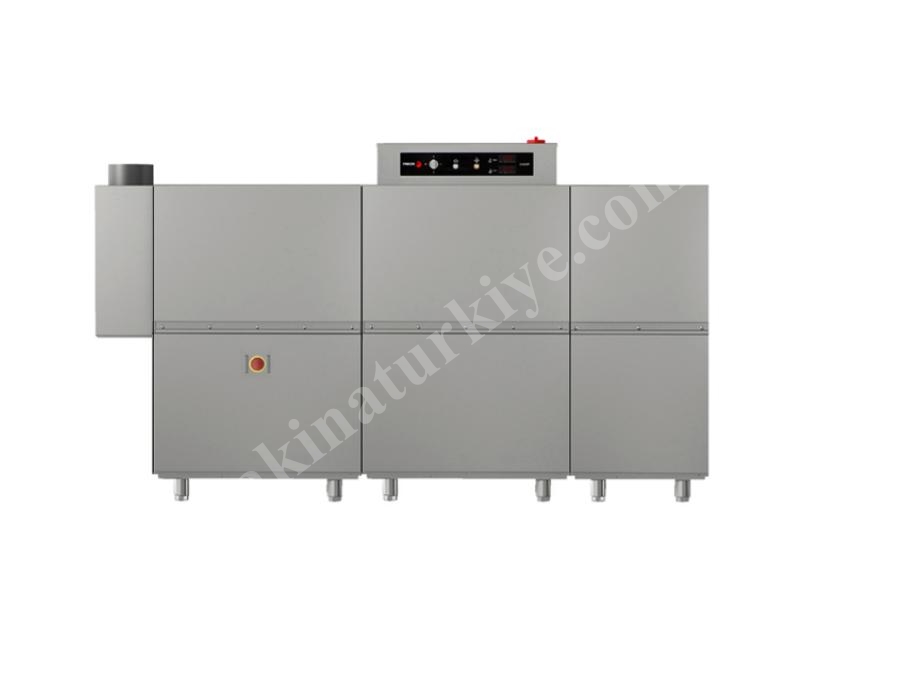

CCO-270 L CW Compact Kurutmalı Bulaşık Makinası

DENOMINATION:

Modular rack conveyor 270 racks/hour with entrance from the feft for

cold water

DESCRIPTION :

"-The Concept modular dishwashers are composed of different modules put

together, which carry out different operations, making up the washing

process.

- All the main parts are manufactured in AISI-304 anti-corrosion

stainless steel: tanks, washing and rinsing arms, rinsing jets, doors,

basket conveyance system, boiler and metal tubes.

- Upwards-opening double panel door.

- Tank tray filters made of AISI-304 stainless steel, easy to access and

remove for cleaning and access to the tank.

- Safety filter for pump suction.

- Rinsing boiler with heat insulation.

- Easy access for installation. Electrovalve located on one side (no

need to remove panels to connect the machine).

- Electrical panel designed for easy connection of dosers for liquid and

solid detergents, rinse aid, limit switches, supplementary emergency

stop button.

- Washing arms easily removable as a set, for cleaning, with a plug on

each branch providing access for cleaning inside.

- Rinse jets easily dismountable and removable.

- System of electronic regulation of speeds by means of frequency

shifter.

- Configurable electronic temperature control:

- Wash (50 - 65 °C)

- Rinse (70 - 85 °C)

- Guarantor of rinse at 85 °C.

- Pressure regulator for flow control.

- Emergency stop button incorporated.

- Extra anti-entrapment protection system at the entrance, mounted on

the AS-260 splash guard supplement (optional).

- Open door blocking system.

- IPX4 protection system.

- System for detection of blockage of conveyor carriage and automatic

reverse function.

- Energy-saving system: reduces consumption by halting operation of the

pumps, and by passing the heating of the rinse to stand-by mode (70 °C).

- Auto-timer which deactivates the conveyor motor after a pre-set period

of inactivity (10 minutes)."

"´- AS-260 splash guard supplement.

- First Wash with cold water.

- High-power washing system with 5 upper and 5 lower washing branches.

- Rinse and pre-rinse, both double effect."

Entry through the left part of the machine.

CW: Model prepared for connection with cold water from the network

(input temperature <(><<)>50 ºC.).

POSSIBLE OPTIONS :

- Electric trasformation to 230V three-phase without neutral (230V 3 ~)

- Electric trasformation to marine version (440V 3~ 60 Hz.)

- Drying tunnel

- Dying tunnel 800 mm

- Upper energy recovery system

- Anti-splash guard supplement (exit)

DIMENSIONS

X Width 2660 mm X Gross width 2750 mm

Y Depth 790 mm Y Gross depth 955 mm

Z Height 1560 mm Z Gross height 1950 mm

Net Weight 434,0 kg Gross Weight 628,0 kg

Net volume 3,874 m3 Gross volume 5,121 m3

ELECTRICITY TECHNICAL SPECIFICATIONS

Engine power 4,40 kW

Electric power 49,000 kW

Amperage (A) 77,2

Heating power 44,00 kW

Voltage 380-415V - 3N

Electric frequency 50Hz

WATER TECHNICAL SPECIFICATIONS

Pressure H2O: 200-400kPa(2-4bar)

Water max consumption 240,00 L/h

CONNECTIONS TECHNICAL SPECIFICATIONS

230 V three-phase wiring 3X70+T - 180 A

Three-phase +N 400V wiring 4X35+T - 100 A

Drain 1 diameter 38

OTHERS

Noise level 72,00 dB
