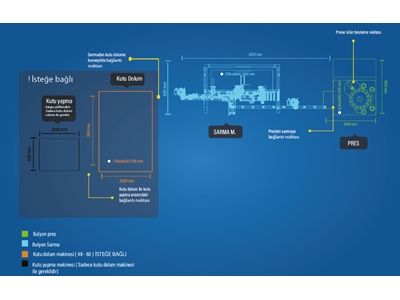

Single Line Optional Bouillon Production Line

Press and winding machine is the basic. At the end of the wrapping, the machine can optionally be connected. For example: Box filling machine, Double boxing machine, 6-8 10-12 boxing machine and jar filling machine.

Please note that these measurements are made without a conveyor. Final measurement may vary upon request.”

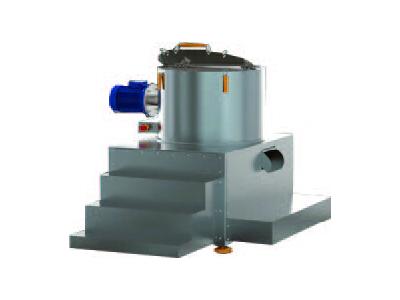

Bouillon Mixing Mixer

The product prepared according to the formula is poured into the chamber. The homogeneously mixed product is placed in crates and transferred to cold storage.

The size and weight of the mixer varies depending on the desired capacity.

Designed for bouillon

Double layer heating

Width:1000mm

Height:2000mm

Length:2000mm

304 Stainless steel body

All pneumatics are Norgren products

Between 4kWh - 11 kWh according to desired production Delta electronics

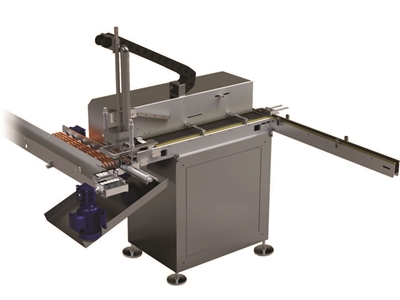

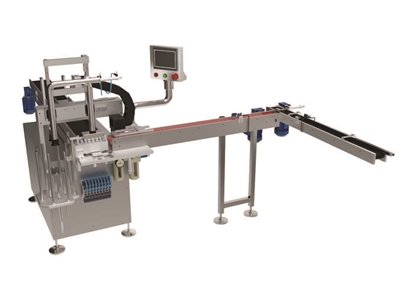

200-220 Tablets/Minute Bouillon Wrapping and Packaging Machine

The packaged product coming from the wrapper is arranged in 3 or 4 rows. The arranged products are boxed in groups. It is boxed in 3,4 and 5 layers.

Adjustability with 10 inch screen

Jamming sensors

Servo motor for main accent

Synchronization with the pressing machine

Width: 650mm

Height: 1600mm

Length: 2200mm

304 Stainless parts and chassis

7000 series aluminum tables

Mold and heat parts brass

Some hard mechanical parts that are iron are chrome plated.

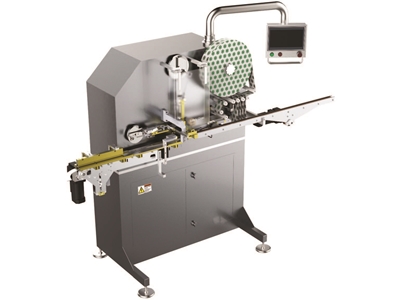

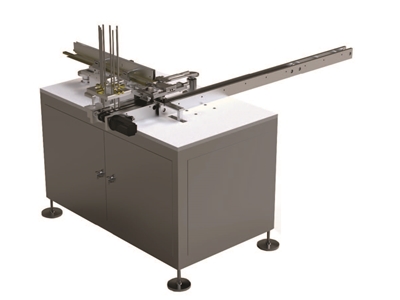

Papers taken from the printing house are placed in the magazine. Tablets coming from the wrapping machine are sorted in pairs. The paper is pushed into the mold, glued and the bouillons are placed in the mold. It is then pushed into the drying conveyor.

7 inch touch screen Adjustable head

Width:1900mm

Height:1435mm

Length:3250mm

304 stainless steel body

all pneomatics are norgren products

May vary depending on targeted production

Delta electronics

6 pieces = 33-35 boxes per minute
