TFS 850 Thermoforming Machine
| İlan No: | #00227632 |
| Kategori: | Termoform Ambalaj Makinası |
| Marka: | Yenimak |
| Model Tipi: | TFS 850 |
| Ürün Tipi: | Satılık |
| Ürün Durumu: | Sıfır |
| Menşei: | Türkiye |
| Teslim Durumu: | Stokta Var |
| Konum: | Ziya Gökalp Mah. / Başakşehir / İstanbul |
| Kısa Detay: | 2 Yıl Garantili |
| Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur
Yenimak Makina
Yenimak Makina Üretim Ve San. İth. İhr. Tic. Ltd. Şti.

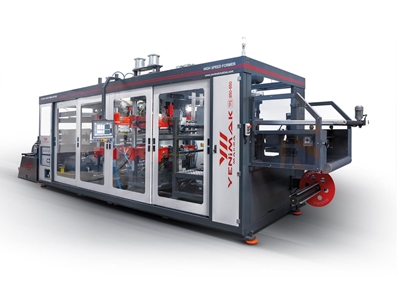

Yenimak TFS850
Thermoforming Machine
All Thermoforming Machine series in our product line designed completely by Yenimak R&D engineers are capable of production of disposable plastic bowls, plates, trays, caps, self-lidded containers, viol, vegetables and fruit cups etc.
These machines are designed for the production technique with the optimum cost mould system.
whether in the food or non-food sector, and are versatile for materials such as PET, PP, PS, PLA, PE.
Yenimak TFS850 Technicial Specifications
|
Model of the thermoforming machine |
: TFS850 |
|
Max, sheet width |
: 900 mm (+50 mm stretching) |
|
Sheet thickness |
: 0,2 mm – 2 mm |
|
Produce height (positive) |
: 140 mm |
|
Produce height (negative) |
: 140 mm |
|
Dry-run cycle |
: 75 cycles /min. |
|
Max. forming mold area |
: 850 x 650 mm |
|
Clamping force of forming station |
: 65.000 daN |
|
Clamping force of Punching station |
: 65.000 daN |
|
Clamping force of cutting station |
: 80.000 daN |
