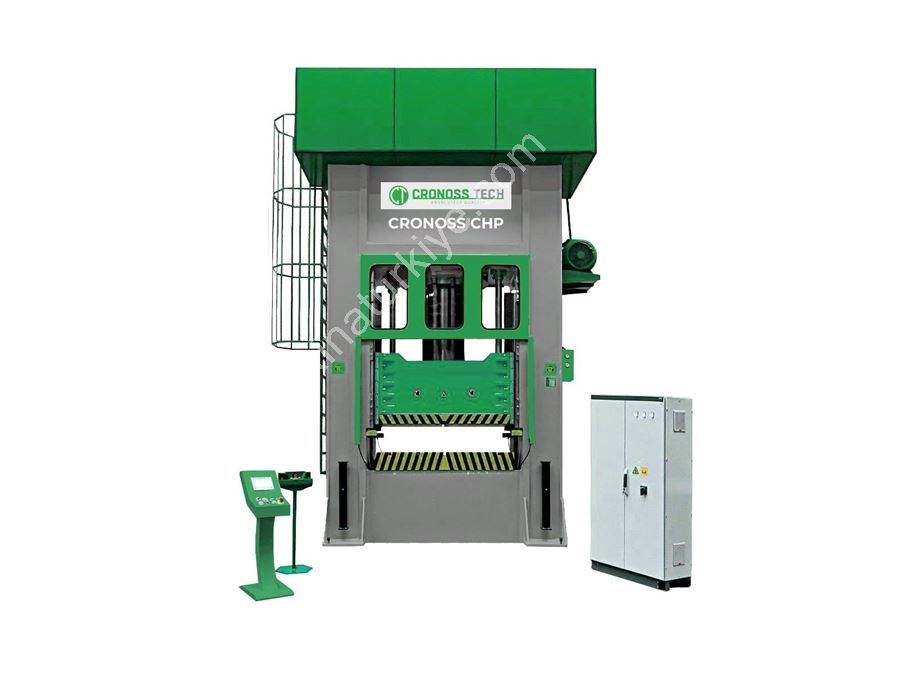

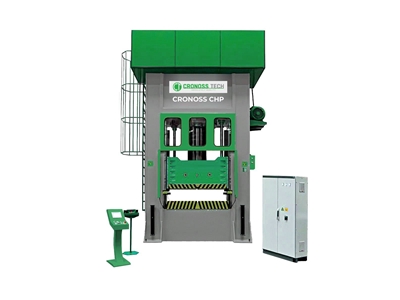

100 Ton H Type Single Effect Hydraulic Press

Advertisement No:	#00254137
Category:	H Type Hydraulic Press
Brand:	Cronosstech
Model Type:	CHP 100
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	İkitelli OSB Mah. / Başakşehir / İstanbul
Short Detail:	2 Yıl Guaranteed
Sales Detail:	Negotiated
Delivery Status:	Made to Order

Price:

Ask For Price

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

CronossTech Makina

CronossTech Makina Dış Tic. Ltd. Şti.

Advisor : Volkan Ö.

Go to the store

Add to My Favorite Store

All Ads

Send Message

Fast Chat

CHP - H Type Single Effect Hydraulic Press | 100 Tons

STANDARD FEATURES

Steel construction body and parts with stress / welding stress relieved by vibration method
8-surface slide / bedding for high precision and long-life use
PLC control system and touch operator panel
Argon welding application for fixing elements and steel draw tubes
Accredited by TÜRK-AK WPQR and WPS approval
EN ISO 15614-1:2017 welding application certificate
(Welding applications are audited by welding coordination engineers certified according to EN ISO 14731)
Parallelism and perpendicularity tolerances according to ISO and DIN standards
(≤ 120 microns per meter)
PARKER / REXROTH hydraulic unit
SIEMENS / SCHNEIDER electrical consumables
Automatic central lubrication system
Dual hand control system

OPTIONAL FEATURES

CE compliance
Safety PLC (SIEMENS Failsafe / PILZ PNOZ Multi)
Beam barriers (LEUZE, PILZ or SICK - 2 pieces)
Traceable feedback valves (REXROTH or PARKER - 3 pieces)
Hydraulic ram lock system (1 piece)
Proportional speed and pressure application
(Different speeds, stops, and pressure values are entered at different points of the pressing process,
minimizing the impact of material and mold deformations on the work being done)

TECHNICAL SPECIFICATIONS

Press Type: Steel construction, 8-slide H-type press body
Body Material: St52 - ERDEMİR
Slide Bedding: Bronze Zr14
Press Capacity (Ram): 100 Tons
Moving Table Size: 800 x 1000 mm
Fixed Table Size: 800 x 1000 mm
Parallelism Tolerance: 120 microns per mt.
Perpendicularity Tolerance: 60 microns per mt.
Ram Stroke Distance: 500 mm
Minimum Clearance: 100 mm
Maximum Clearance: 600 mm
Maximum Working Pressure: 250 bar
Total Motor Power: 11 kW - IE3
Main Pump: 22 cm³ - REXROTH or PARKER
Moving Table Rapid Descent Speed: 150 mm/s
Moving Table Pressing Speed: 12 mm/s
Moving Table Return Speed: 170 mm/s
Main Cylinder Inner Diameter: Ø 230 mm - Ck45
Assistant Acceleration Cylinders: 2 pieces
Press Approximate Height: 3400 mm
Press Approximate Width: 2950 mm
Press Approximate Depth: 2000 mm
Lower Table Height: 1250 mm
Front Fill Valve: NG 100
Cooling System: EMMEGI - CIESSE - PARKER
Off-line Filtration: REXROTH or PARKER
Air Filter: 10 micron permeability
Return Filter: 25 micron permeability
Filter Contamination Warning: Electronically controlled
Lubrication Type: Automatic (adjustable from the screen)
Ram Stroke Adjustment: Adjustable from the screen
Ram Tonnage (Pressure) Adjustment: Adjustable from the screen
System Error / Press Status Information: Viewable on the screen
Mold Memory: Available
Hydraulic Oil Temperature Information: Viewable on the screen
Linear Distance Scale: NOVATECHNIK or TURCK
PLC: DELTA
Touch Panel: DELTA 7"
Approximate Weight: 6.5 tons

Working Method Tek Tesirli

Working Pressure (Tonnes) 100
