Advertisement No: | #00251150 |
Category: | 4-Unit Edge Banding Machine |
Brand: | Mova Press |
Model Type: | KB 50 |
Product Type: | For Sale |
Product Status: | New |
Origin: | Turkey |
Delivery Status: | In stock |
Location: | Mansurlu Mah. / Aladağ(Karsantı) / Adana |
Sales Detail: | Bank Transfer, Negotiated |

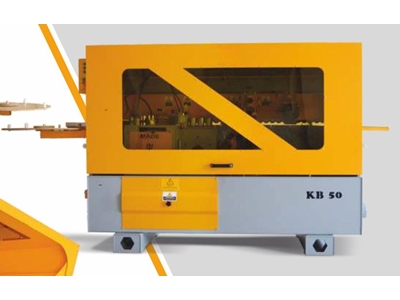

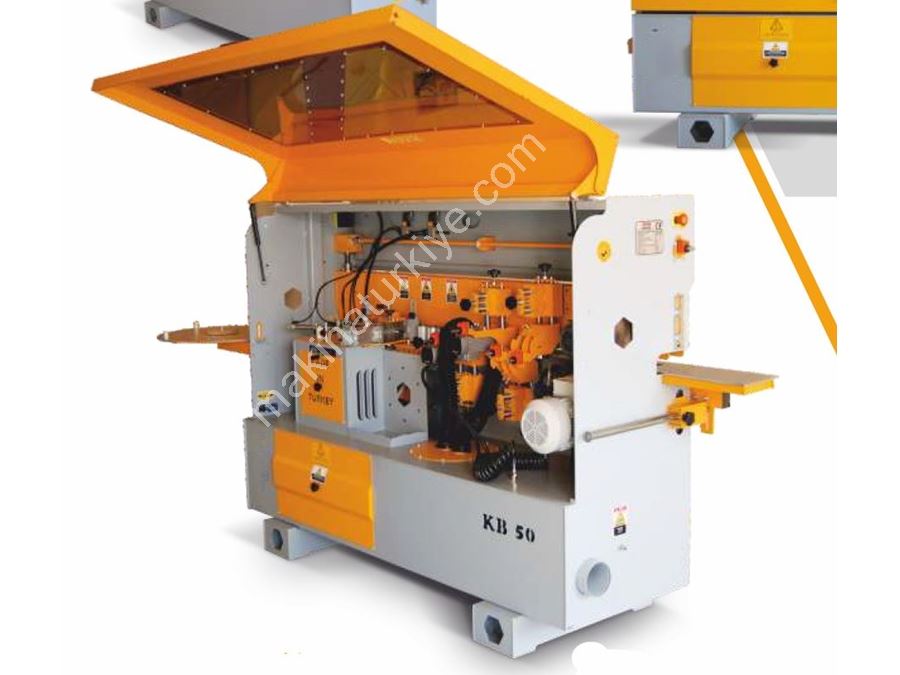

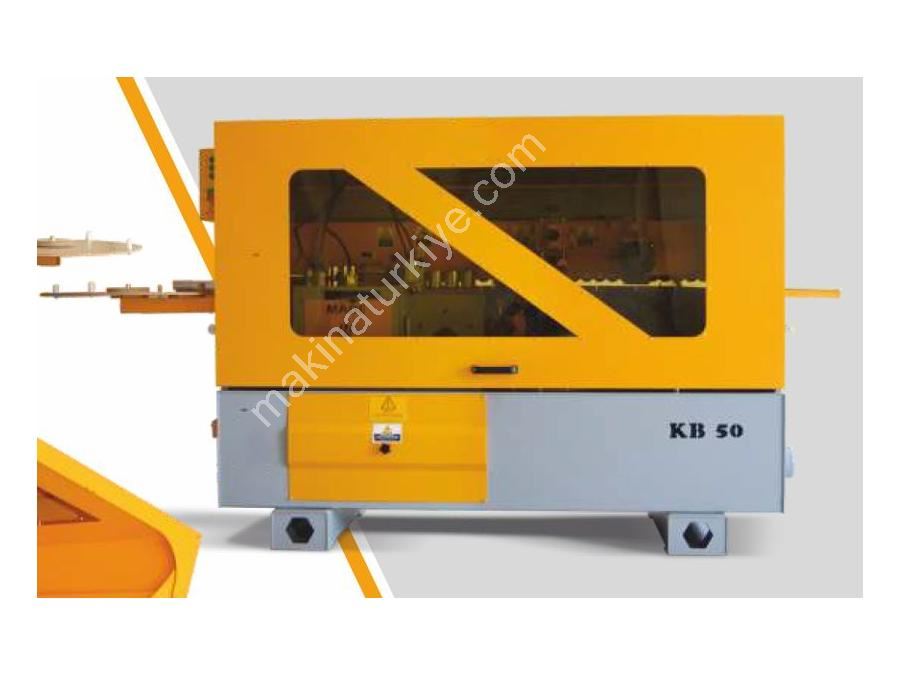

14000 mm/min 4-Unit Edgebanding Machine
An edge banding machine is a specialized woodworking tool used to apply edge bands—typically made of PVC, ABS, melamine, or wood veneer—to the exposed edges of wood panels such as MDF, chipboard, or plywood. It ensures a smooth, professional, and durable finish, ideal for modern furniture production.
Key Features
Automatic Gluing & Banding:
Applies hot melt adhesive and presses the band securely onto the panel edge.
Trimming & Buffing Units:
Removes excess banding material and smoothens the edges for a clean finish.
Corner Rounding (Optional):
Rounds off sharp corners to enhance both safety and aesthetics.
Polishing Section:
Provides a final polished and glossy appearance to the edges.
Why Use It?
Enhances the visual appeal of furniture
Protects panel edges from moisture and damage
Improves the product's lifespan and durability
Ensures a professional and high-end finish
Technical Specifications
Feature |
Value |
---|---|
Glue Heating Time |
25 min |
Band Bonding Thickness |
0.40 mm - 3 mm |
Band Bonding Height |
45 mm |
Dimensions of Parts to be Bonded |
80 mm - 150 mm |
Operating Speed |
14000 mm/min (14 m) |
Bottom-Top Milling Group |
2x 0.37 kW, 12000 rpm |
Bottom-Top Mill Blades |
6-Nozzle R3 |
Radius Scraping Thickness |
0.40 mm, 2 mm R3 |
Bottom-Top Polishing Group |
2x 0.25 kW, 3000 rpm |
Total Electric Power |
5 kW |
Grid Voltage |
380 V ~ 50 Hz |
Reducer Rotation |
19 rpm |
Pneumatic Bar Pressure |
6 Atü |
Glue Boiler Volume |
5 kg |
Dust Extraction Motor |
0.75 kW, 3000 rpm |
Machine Dimensions
Dimension |
Value |
---|---|
Length |
2600 mm |
Height |
1450 mm |
Width |
700 mm |
Weight |
665 kg (approximately) |
