| Advertisement No: | #00249321 |
| Category: | Coil Slitting Machine |
| Brand: | Kaizen |
| Model Type: | KHPSPR-1600 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Delivery Status: | In stock |
| Location: | Çavuşoğlu Mah. / Kartal / İstanbul |
| Sales Detail: | Bank Transfer, Negotiated |

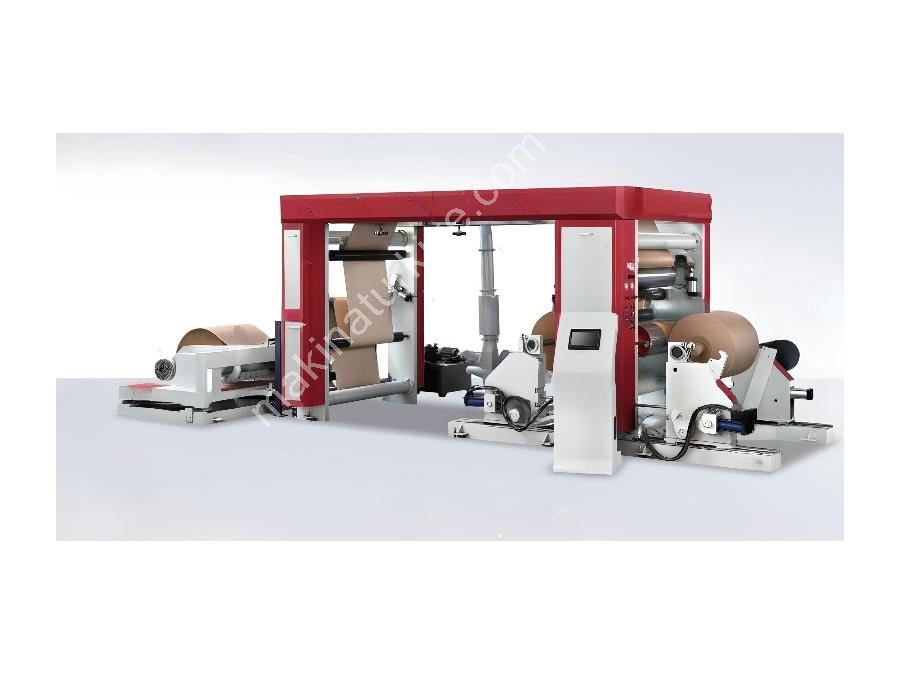

35 kW High Speed Paper Reel Slitting and Rewinding Machine The High Speed Paper Reel Slitting and Rewinding Machine is a machine used in the paper production industry and packaging sector. It is designed to cut large paper reels into smaller pieces and neatly rewinding them. This machine is designed to speed up production processes, increase efficiency, and obtain high-quality products. Equipped with high-speed and automatic features, the machine uses adjustable circular blades for the cutting process. With independent operation and rewinding arm, it is suitable for slicing and rewinding different materials such as paper and plastic film. This process works with controlled tension to wind the product evenly and compactly for rewinding. The rewinding process stops automatically when it reaches the desired size. This advanced system machine, equipped with an intelligent control panel, offers features like frequency speed control, microcomputer PLC control, automatic meter counting with photoelectric correction device, automatic stop with alarm, and digital display for tension control. The machine is suitable for cutting, slitting, and rewinding large sized coil materials such as plastic films, paper, coated and laminated paper, coated cardboard, synthetic paper, medical films, and all paper-plastic composite materials. High Speed Paper Reel Slitting and Rewinding Machine Features and Advantages High Speed: The machine operates at high speed to quickly cut and rewind large paper reels. It can work at a speed of 350 meters per minute, saving production time. Precise Slitting: The machine can precisely slice paper reels into very thin and precise pieces, ensuring high quality slices and reducing waste during production. Automatic Winding System: The sliced paper pieces are automatically wound neatly, reducing manual intervention and increasing efficiency. Flexible Adjustment Options: It allows working with different thicknesses and types of paper, film, and plastic materials, providing production tailored to the needs of various sectors. High Efficiency: It provides a fast, flexible production process with automatic feeding, rewinding, and stopping systems, increasing the production capacity of businesses. Advanced Technology and Control: Equipped with a computerized PLC control system, photoelectric detection, digital displays, and alarm systems. Low Labor Requirement: High-speed reel slitting machines have automatic systems and can operate with a minimum number of operators. High Speed Paper Reel Slitting and Rewinding Machine Applications Paper Production: Used for cutting large reels into small pieces in a hygienic, smooth, and evenly tensioned manner. Packaging Sector: Used in the preparation of paper packaging required in the food, cosmetics, and cleaning sectors. Printing Industry: Used to slice paper into sizes suitable for printing machines.
Technical Specifications
Model
KHPSPR-1100
KHPSPR-1300
KHPSPR-1600
Maximum Unwinding Diameter
1600 mm
1600 mm
1600 mm
Maximum Slitting Width
1000 mm
1200 mm
1500 mm
Maximum Rewinding Diameter
1500 mm
1500 mm
1500 mm
Minimum Rewinding Width
30 mm
30 mm
30 mm
Slitting Speed
10 - 350 m/min
10 - 350 m/min
10 - 350 m/min
Slitting Precision
±0.2 mm
±0.2 mm
±0.2 mm
Total Power
25 kW
28 kW
35 kW
Electricity
380V / 50Hz (Three-phase)
380V / 50Hz (Three-phase)
380V / 50Hz (Three-phase)
Air Pressure Supply Requirement
Max. 5.5 kg/cm² × 0.5 m³/min
Max. 5.5 kg/cm² × 0.5 m³/min
Max. 5.5 kg/cm² × 0.5 m³/min
Machine Weight
Approx. 10500 kg
Approx. 11000 kg
Approx. 11800 kg
Machine Size
9000 × 3550 × 2510 mm
9000 × 3750 × 2510 mm
9000 × 4050 × 2510 mm
