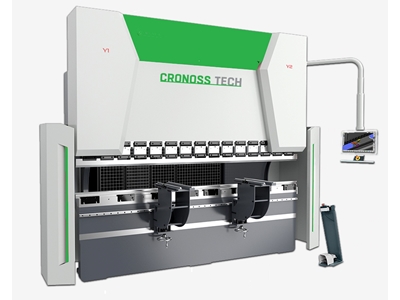

175 Ton x 3100 mm 4 Axis CNC Hydraulic Press Brake

General Description

175 Ton x 3100 mm 4 Axis CNC Hydraulic Press Brake is developed to provide high precision, repeatability, and efficient production in medium and heavy-duty sheet bending applications. Its robust steel construction body, European-sourced hydraulic components, and advanced CNC control system ensure long-lasting and reliable performance.

The ESA S630 CNC control unit, Y1-Y2-X-R 4 axis CNC control system, servo motor-driven X+R axis back support system, and CNC controlled crowning system achieve high accuracy in bending operations. The European type Promecam quick die clamping system allows for quick die changes. It offers a safe working environment with the AKAS II laser safety system and safety equipment compliant with CE standards.

Standard Equipment

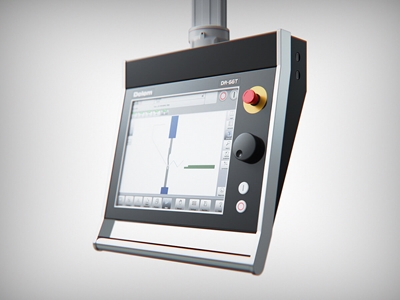

ESA S630 CNC control unit
4 axis CNC control system including Y1, Y2, X, and R
Servo motor-driven CronossTech X+R axis back support system
X axis movement distance of 750 mm
R axis movement distance of 250 mm
±0.03 mm back support positioning accuracy
Manually adjustable, 3-stage 2 back support fingers
European type Promecam E7 quick upper die clamping system
CronossTech European type narrow lower die table
Standard upper die ES1260
Standard lower die ES2067 (4 V channels)
CNC controlled CronossTech cam crowning system
B Series open cabin design
GIVI linear scale system
Hoerbiger (HAWE) hydraulic block
Eckerle hydraulic pump
Siemens drive system
Schneider or Siemens electrical equipment
Electrical panel compliant with VDE standards
LED working light on the ram
2 sliding type front sheet support arms
Single foot pedal
Energy-saving Standby mode
AKAS II front laser safety system
PLC controlled light barriers
Safety system compliant with CE standards

Technical Specifications

Feature	Value
Bending Force	175 Ton
Bending Length	3100 mm
Distance Between Columns	2600 mm
Ram Stroke	260 mm
Open Height (Daylight)	465 mm
Throat Depth	410 mm
Table Height	955 mm
Approach Speed	180 mm/s
Bending Speed	10 mm/s
Return Speed	130 mm/s
Oil Tank Capacity	180 L
Main Motor Power	15 kW
Back Support X Axis	750 mm / 300 mm/s
Back Support R Axis	250 mm / 250 mm/s
Machine Dimensions (W × D × H)	4700 × 2430 × 2975 mm
Machine Weight	8,850 kg

Areas of Use

Sheet metal processing facilities
Machine and equipment manufacturing
Steel construction manufacturing
Automotive sub-industry
Electrical panel manufacturing
Agricultural machinery manufacturing
Ventilation and air conditioning systems
Metal furniture manufacturing
Defense industry
General metal processing and contract manufacturing

Advantages

Precise and repeatable bending with 4 axis CNC control system
Servo motor-driven X+R axis back support system
CNC controlled crowning system
European type Promecam quick die clamping system
Robust steel construction body
European sourced hydraulic and electrical components
Standby mode providing low energy consumption
High production precision and long service life
Safe operation with AKAS II laser safety system
Production compliant with CE standards

Warranty

12 Month Manufacturer Warranty

Bending Capacity 175 TON

Bending Length 3100 MM

Number of Axis 4
