| Advertisement No: | #00252787 |
| Category: | Plastic PVC Profile Extruder |
| Brand: | Karakuş Makina |
| Model Type: | CB80/156 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Çarşı Mah. / Kartal / İstanbul |
| Short Detail: | Yıl Guaranteed |
| Sales Detail: | Bank Transfer, Negotiated |
| Delivery Status: | In stock |

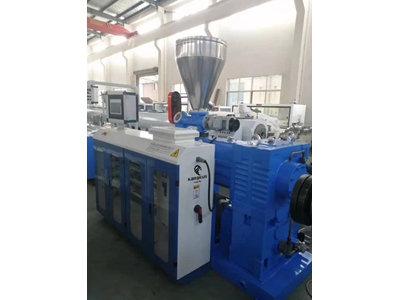

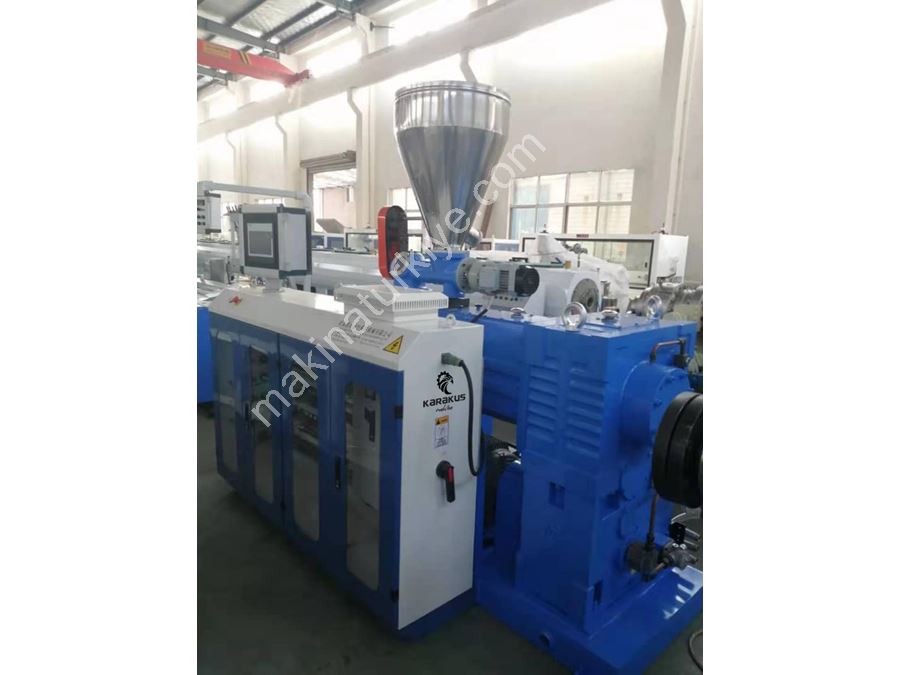

Karakuş Makina Conical Twin Screw Plastic PVC Profile Extruder – Technical SpecificationsKarakuş Machinery Conical Twin Screw Plastic Pvc Profile Extruder
What is Plastic PVC profile machine? It is a type of extruder machine used to produce Plastic PVC profiles, window profiles, PVC paneling, door paneling, wardrobe paneling, cornice, glass bead, sill and other PVC products in desired sizes and lengths.

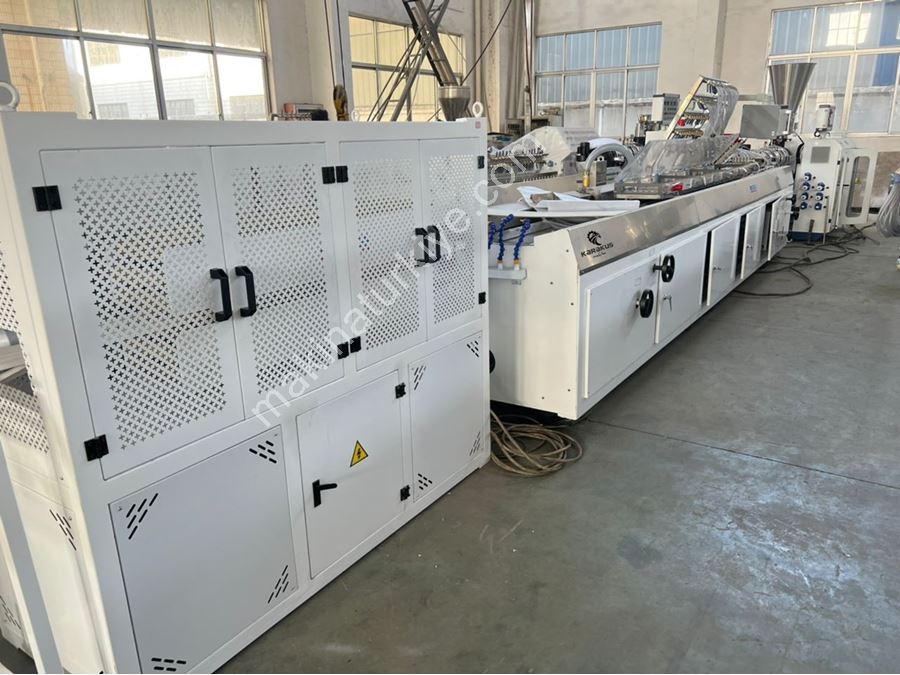

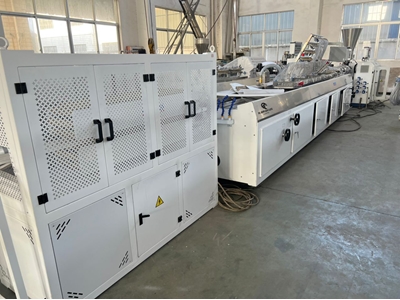

What is Plastic PVC Profile Machine and what does it consist of? This machine group consists of main machine extruder, profile mold, vacuum calibration table, haul-off pallet, profile saw, and tilting table equipment. They are classified as single screw extruders and conical twin screw extruder lines. Single screw extruders are produced as Ø50, Ø70, and Ø90, while conical twin screw extruder lines are produced as Ø50, Ø67, Ø75, Ø90, and Ø110.

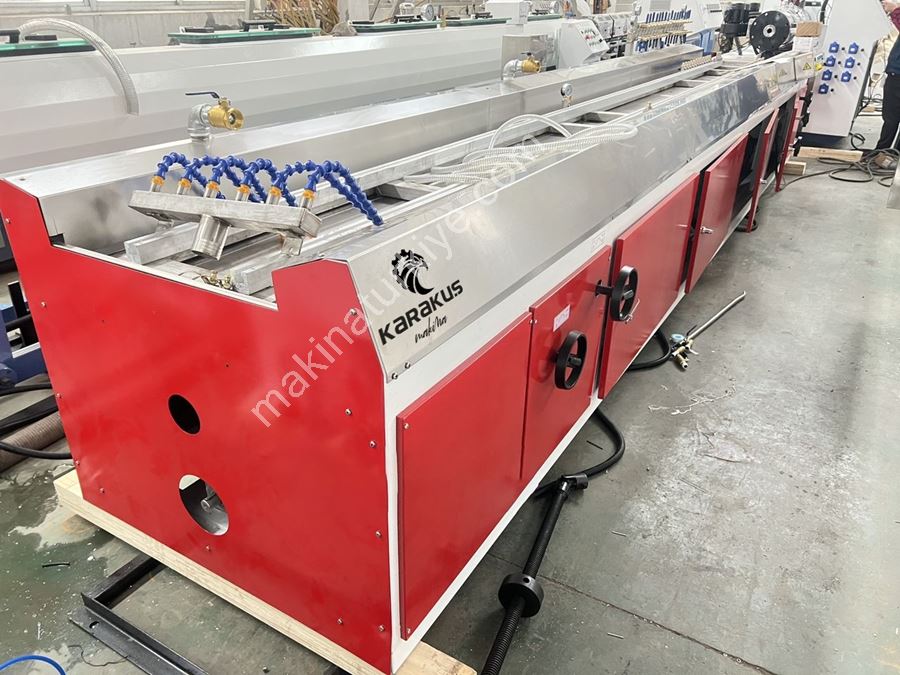

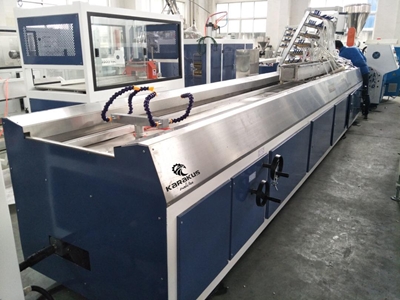

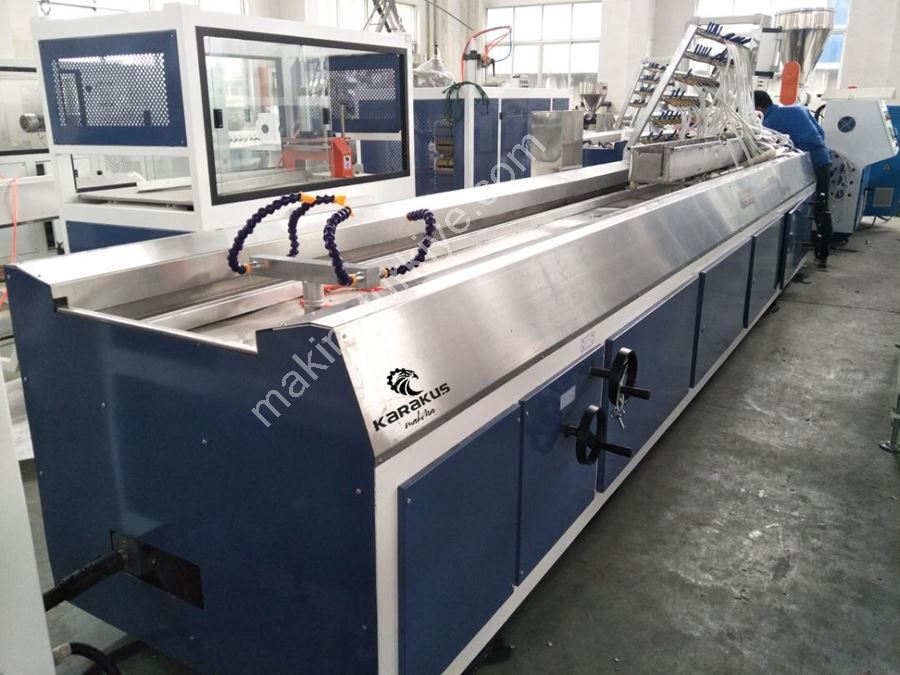

When we ask what Plastic Profile PVC Machine is and what are its working principles, the working principle of these machines is to transfer power from the main motor to the gearbox and from there to the screw barrel, and the particle called the screw rotates 360 degrees around its own axis, carrying the material from the hopper to the screw by melting it with the resistors located on top of the barrel. When the material reaches the head, it will take the shape of the head in a hot way. After the hot material exits the head, it will enter the vacuum calibration table. Here, it takes the desired shape through vacuum. There is water circulation inside the material in the calibration mold, and the product will be cooled. After the product exits the calibration, it has reached the desired size and is cooled.
After exiting the vacuum calibration table, it comes to the unit called the haul-off pallet. The duty of the haul-off is to regularl...
Specification
65/132
80/156
92/188
Screw length / L/D
1440
1843
2500
Max. backpressure
350 KN
400 KN
450 KN
Motor power
37 kW
55 kW
75 kW
Reducer rate
1/15
1/15
1/15
Screw revolution
50 rpm
50 rpm
50 rpm
Cylinder cooling system
5
6
6
Installed electric power
50 kW
70 kW
85 kW
Capacity
120–160 kg
200–250 kg
300–350 kg
