30-50 Pieces/Minute Right-Angle Flowpack Packaging Machine

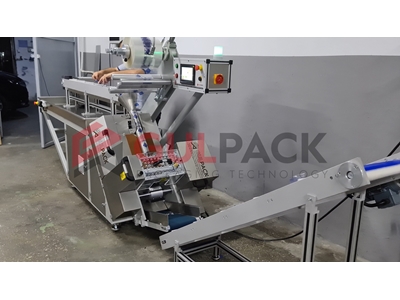

Gulpack GLP D5 30-50 Pieces / Minute Vertical Flowpack Packaging Machine

The Gulpack GLP D5 is a versatile vertical flowpack packaging machine designed for high-speed, secure, and efficient packaging of a wide range of products. It is ideal for both food and industrial products and comes with various model options such as Rotary Table, Conveyor Feeding, and Motion Control (3 Servo), providing flexibility based on the packaging needs. All product-contacting parts are made of 304 stainless steel, ensuring high hygiene standards, and the machine is CE certified for safety and compliance.

Model Options:

1. Rotary Table Model:

   • The product is placed on a rotary table and fed through the disk group for bottom sealing. Once it reaches the jaw group, the top seal is applied, and the product is packaged in a pillow pack format. The packaged product is then transferred to the output conveyor.

2. Conveyor Feeding Model:

   • Products are placed on conveyor belt trays and moved through the disk group for bottom sealing. Once they reach the jaw group, top sealing is performed, and the finished package is transferred to the output conveyor.

3. Motion Control (3 Servo) Model:

   • This model features additional touchscreen controls for adjusting the package size and eccentric adjustments without the need for mechanical changes. It also includes a jaw protection system to prevent the formation of empty packages.

Key Features:

• Machine Speed: Capable of packaging 30-50 pieces per minute, depending on the product type and package size.

• Electronic Control System: The machine is equipped with a PLC control system, servo motors, and asynchronous motors for precise control and smooth operation.

• Jaw System: Features a rotary jaw system with a guillotine knife that ensures accurate cutting and clean sealing.

• Package Size Adjustment: The package size can be adjusted precisely via the touchscreen with millimetric adjustments.

• Package Type: Pillow Pack (yastık paket) for various product types.

• Packaging Material: Compatible with OPP, laminated OPP (heat-sealable), and printed packaging materials.

• Products: Suitable for packaging hardware items, door handles, clamps, and other industrial products.

Technical Specifications:

• Machine Speed: 30-50 pieces per minute (varies based on the feeding unit, product, and package size).
• Control System: PLC controlled with servo motors and asynchronous motors.
• Jaw System: Rotary jaw system with guillotine knife for clean and precise cuts.

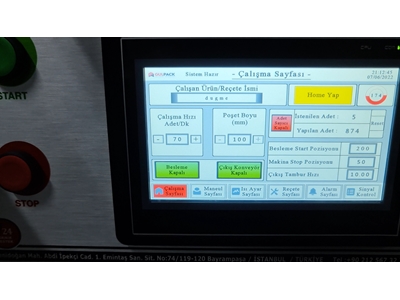

• Package Size Adjustment: Millimetric package size adjustment via a 7" touchscreen display.
• Package Type: Pillow pack.
• Packaging Materials: OPP, laminated OPP (with heat sealing), printed packaging.

Safety Features:

• Start-Stop-Emergency Stop buttons available on both the control panel and the feeding conveyor.
• Safety switches are installed on the jaw system.
• Bearings: FAG, SKF, or ORS bearings are used for durability.

Structural Features:

• Frame: 10 mm DKP steel sheet.
• Aluminum: 15 mm 5083 aluminum for strength and durability.
• Covering Material: AISI 304 stainless steel for hygienic and corrosion-resistant surfaces.
• Product Contact Parts: All parts in contact with the product are made of AISI 304 stainless steel.

Dimensions and Power Consumption:

• Width: 900 mm
• Height: 1800 mm
• Length: 3050 mm + 1500 mm (with output conveyor).
• Weight: 750 kg
• Power Consumption: 4 kW/hour

Warranty:

• The machine comes with a 24-month warranty, ensuring long-term reliability and support.

Additional Features:

• Servo Motor: 0.75 kW servo motor for the disk group.
• Motor Power Transmission: Asynchronous motors (ELK, Gamak) for the jaw, pallet, and angled output conveyor groups.
• Reducer: Infinite reducer (Imak) for the disk group.
• Temperature Control: Temperature adjustments with +/- 2°C precision, adjustable through the touchscreen.

Machine Configuration Overview:

• Conveyor Feeding System: 2000 mm feeding conveyor for smooth product handling.
• Manual Feeding via Conveyor Belt: Product feeding can be done manually through the conveyor belt system.

Safety Systems:

• Start-Stop-Emergency Stop Buttons on both the control panel and feeding conveyor.
• Jaw Group Safety Switches for preventing malfunction.
• Bearings: FAG, SKF, or ORS bearings used for durability and efficiency.

Certifications:

• CE Conformity Certificate: The machine is CE certified, ensuring it meets European safety standards.
