Advertisement No: | #00250237 |
Category: | Glass Lifting Suction Cup |
Brand: | Single Lift |
Model Type: | SL-PVL-300VRT-PL |
Product Type: | For Sale |
Product Status: | New |
Origin: | Turkey |
Delivery Status: | In stock |
Location: | Akçeşme Mah. / Merkezefendi / Denizli |
Sales Detail: | Bank Transfer, Negotiated |

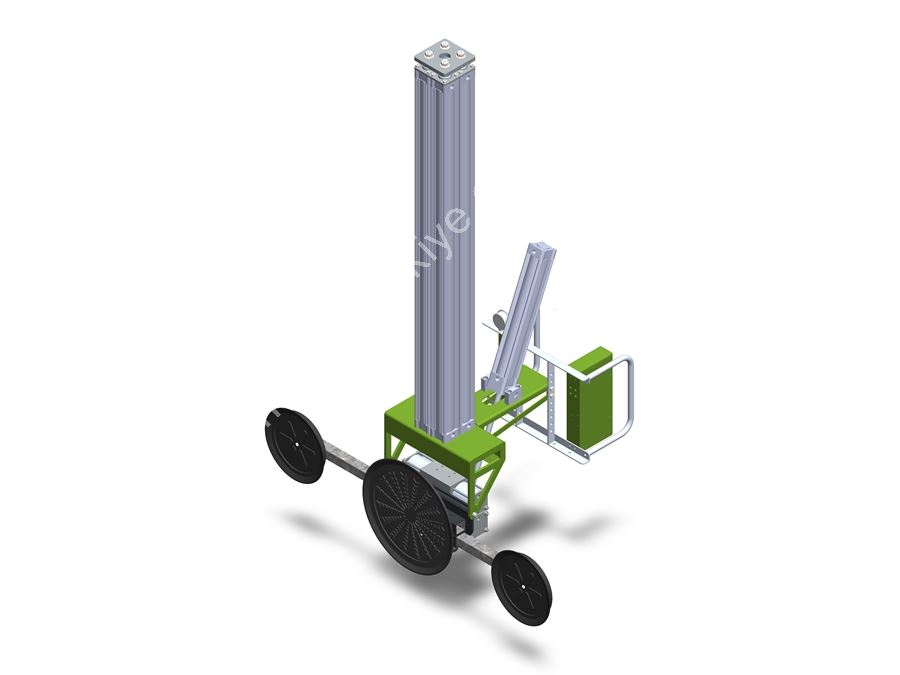

PVL-300VRT-PL – Pneumatic Cylinder Vertical Transport, Tilting and Rotating Vacuum System Specially designed for the vertical transport, 90° tilting, and 90° rotation of delicate surface materials (glass, panels, marble, ceramics, etc.), this is a compact and highly controlled vacuum lifting system. In this model, the lifting operation is carried out with a specially designed pneumatic cylinder; this increases the load balance during transport and minimizes sway. Operating with a compressed air system, PVL-300VRT-PL ensures energy efficiency without requiring electricity. It has 1 + 2 vacuum pads (445 mm and 290 mm in diameter) providing high adherence to different sized flat surface materials. With the capability of 0°-90° tilting and 0°-90° rotation during vertical transport, the system speeds up the assembly process while providing full control to the operator. Optionally, an automatic lifting distance of 1000 mm can be integrated into the system. Glass, marble, and ceramic transport and assembly operations Panel production and facade assembly lines Facilities requiring safe transport in electricity-free environments Narrow space applications requiring vertical transport, tilting, and rotating needs Controlled transportation of materials at risk of swaying on the production lineTechnical Specifications
Feature
Value
Box Dimensions (L x W x H)
660 x 1050 x 1050 mm
Box Weight
33 ± 2 kg
Machine Weight
68 ± 3 kg
Number of Pads
1 + 2
Pad Diameter
445 mm / 290 mm
Maximum Lifting Capacity
300 kg
Operating System
Compressed air (Pneumatic)
Automatic Tilting Angle
0° / 90°
Automatic Rotation Angle
0° / 90°
Automatic Lifting Distance
1000 mm (optional)
Lifting Mechanism
Pneumatic cylinder (PL)
