| Advertisement No: | #00235544 |
| Category: | Screw Compressor |
| Brand: | Aras Air |
| Model Type: | ARSV-37 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Kısıkköy / Menderes / İzmir |
| Sales Detail: | Bank Transfer, Negotiated |
| Delivery Status: | In stock |

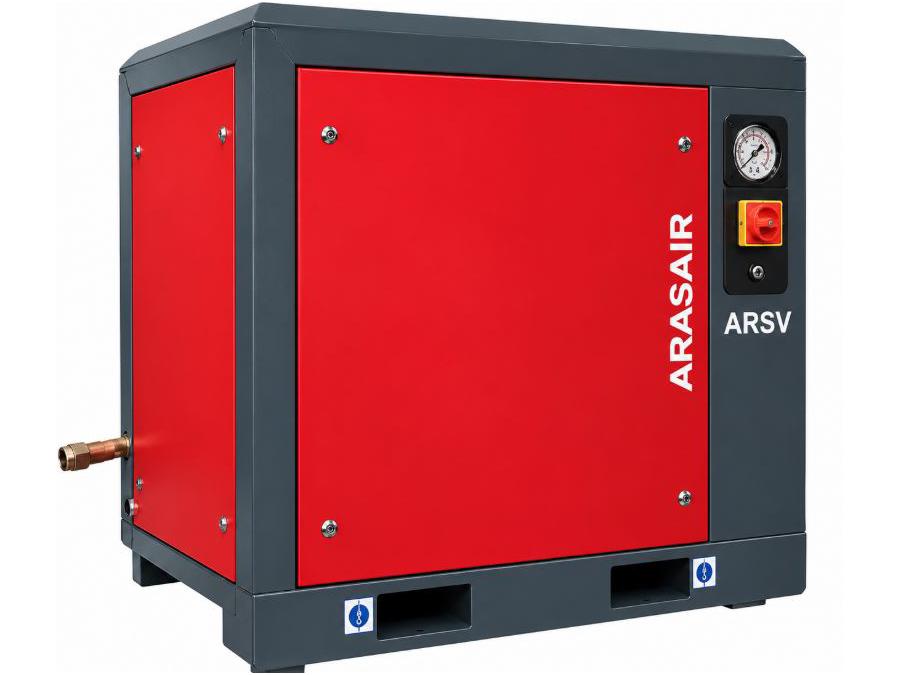

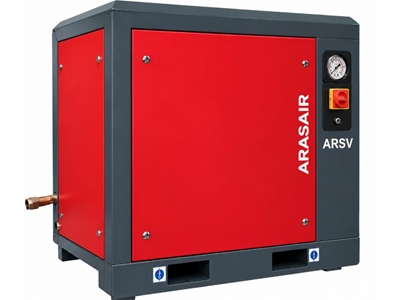

37 kW 50 Hp Screw Compressor Aras Air ARSV-37 is a screw compressor that provides high performance in industrial applications with a motor power of 37 kW (50 Hp). This model offers low energy consumption under full load and ensures efficient operation at pressure levels of 7.5 bar, 10 bar, and 13 bar. It also provides cost advantages to businesses with low energy consumption (14.1 kW/h - 14.4 kW/h) while running idle. The German-made Rotorcomp screw group and oil-injected EVO 9 screw type ensure long life and reliable performance. The low oil content remaining in the compressed air (2.4 mg/m³) provides clean and efficient air. Thanks to the micropore filter group, it offers high-performance air filtration, supporting the compressor's more efficient operation. Its compact structure and 745 kg weight make it ideal for use in large industrial facilities. Power Consumption at Full Load (kw/h) 7.5 bar 40.5 kw/h 10 bar 40.3 kw/h 13 bar 39.8 kw/h Power Consumption at Idle (kw/h) 7.5 bar 14.1 kw/h 10 bar 14.3kw/h 13 bar 14.4 kw/h Oil Amount Remaining in Compressed Air 2.4 mg/m³ Filter Group Micropore Screw Group Rotorcomp Screw Type Oil Injected EVO 9 SINGLE STAGE TYPES DESIGNED FOR 8 BAR, TWO STAGE TYPES FOR 12 BAR PRESSURES Preference for single-phase electric motors for types up to 4 kW power The compressor head, cylinder, valve, and crank are cast. Lubrication is done with the help of a rod integrated into the connecting rod. There is a mini ball valve integrated into the body that allows easy draining of the compressor oil. A removable blind cap is attached to the outlet of this valve to prevent the risk of oil drainage. It is air-cooled: Cooling is provided by the airflow created by the cooling fan and aftercoolers. The condition of the oil can be easily monitored through the sight glass integrated into the compressor head. Pressure monitoring is done with a manometer. Operation control (idle - loaded operation) is provided by a pressure switch. The safety valve, set to +1 bar above the operating pressure of the compressor, ensures protection against excessive pressure in the system. The air filter element is placed inside a plastic filter housing that allows for easy replacement. The safety of the belt-pulley system is ensured by a closed enclosure in accordance with CE standards. The compressor unit is mounted on the air tank and can also be mounted externally. A ball valve is installed on the air outlet of the air tanks. Additionally, a mini ball valve is used for condensate water drainage at the bottom of the tanks. SAFETY SYSTEMS The compressor is a machine powered by a motor used to compress air or other gases to pressures higher than atmospheric pressure. In environments where compressed air is required, it is used not only to provide air support but also for cooling purposes in systems that operate with ammonia. The working principle of the compressor is to use the air it takes from the outside by raising it to high pressures. While the advantages of compressed air are significant, as the pressure level produced by the compressor increases, the electricity consumption also rises, leading to increased costs. Today, various types of compressors are used in businesses. Although piston compressors were common in the past, due to their noisy operation and the increasing demand for larger amounts or pressures of air, they are being replaced by screw compressors in terms of operational efficiency. Screw compressors are easier to use and have higher efficiency compared to piston compressors. FACTORS TO CONSIDER WHEN CHOOSING A COMPRESSOR Aras Air ARSV-37 Technical Specifications Aras Air ARSV-37 is a reliable and efficient solution in industrial applications with its powerful motor and low energy consumption. Thanks to the micropore filter group and Rotorcomp screw system, it offers long life and high energy efficiency performance. With low energy consumption at full load and idle, it provides cost advantages to businesses, making it an ideal choice for those seeking high performance and reliability in industrial facilities.
Feature
Value
Tank Volume
500-1000 Liters
Voltage
380V
Motor Power
37 kW (50 Hp)
Air Intake
5.6 m³/min
Pressure
8 bar
Number of Cylinders
Screw
Dimensions
1200 x 900 x 1400 mm
Weight
745 kg
Power Consumption at Full Load (7.5 bar)
40.5 kW/h
Power Consumption at Full Load (10 bar)
40.3 kW/h
Power Consumption at Full Load (13 bar)
39.8 kW/h
Power Consumption at Idle (7.5-13 bar)
14.1 - 14.4 kW/h
Oil Amount Remaining in Compressed Air
2.4 mg/m³
Filter Group
Micropore
Screw Group
Rotorcomp
Screw Type
Oil Injected EVO 9
