450 Kg Glass Installation Vacuum Suction Cup

Advertisement No:	#00257884
Category:	Glass Mounting Suction Cups
Model Type:	RZM-MV450
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	Büyükkayacık Mhl. / Selçuklu / Konya
Warranty Status:	2 Yıl Guaranteed
Sales Detail:	Bank Transfer, Credit Cart, Negotiated
Delivery Status:	In stock

Ask For Price

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

Rızalar Makine

Rızalar Endüstriyel ve Mimari Cam Alüminyum Makina San. ve Tic. Ltd. Şti.

Advisor : Rızalar M.

Go to the store

Add to My Favorite Store

All Ads

+90 552 661 52 **

Send Message

Fast Chat

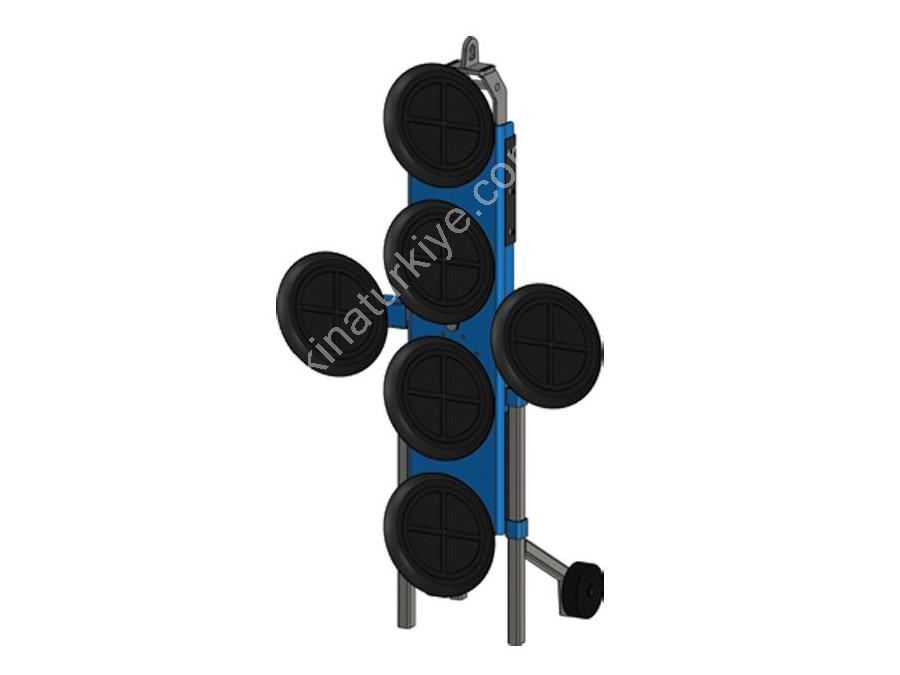

About RZM MV450 450 Kg Glass Installation Vacuum Suction Cup

The RZM MV450 Glass Installation Vacuum Suction Cup is a professional vacuum lifting equipment developed for lifting, transporting, rotating, and precisely positioning glass sheets during installation. With a 450 kg lifting capacity, 360° full rotation, and 90° tilting-lifting feature, it can be used in factory and construction site environments for glass transportation and installation operations.

The multi-suction cup system helps to grasp the glass surface from different points, facilitating controlled transportation of the load. Thanks to its rechargeable operation structure, it can be used without the need for a fixed electrical connection. Depending on environmental conditions, it offers up to 10 hours of operating time and can be charged in approximately 4-5 hours.

Areas of Use

Glass installation operations
Installation of facade glasses
Lifting glass sheets
Transporting large glasses
Positioning glasses horizontally and vertically
Glass production and processing factories
Construction site type glass applications
Architectural glass installation
In-factory glass transfer
Glass loading and unloading operations

Technical Specifications

Feature	Value
Brand	RZM
Model	MV450
Product Type	Glass Installation Suction Cup
Lifting Capacity	450 kg
Number of Suction Cups	6 Pieces
Rotation Capability	360° Full Rotation
Tilting / Lifting Angle	90°
Operating Time	Up to 10 Hours Depending on Environmental Conditions
Charging Time	4-5 Hours
Width of Suction Cup Group	850 mm
Closed Body Depth	392 mm
Open Position Depth	767 mm
Usage Environment	Factory and Construction Site

450 Kg Lifting Capacity

The RZM MV450 can be used for lifting and transporting glass sheets up to 450 kg. It helps transfer the glass from the production area to the installation point and brings it to the appropriate working position.

6-Cup Suction System

There are 6 large surface suction cups on the machine. The multi-suction placement helps to grasp the glass surface from different points and keeps the load controlled during the lifting process.

360° Full Rotation

The RZM MV450 allows for 360-degree full rotation of the grasped glass. This feature particularly facilitates bringing the glass to the correct direction and angle during installation.

90° Tilting and Lifting

The 90-degree tilt capacity allows for moving glasses between horizontal and vertical positions. Thus, lifting, turning, and preparing the glass for installation can be done with the same equipment.

Rechargeable Operation System

The rechargeable operation system provides freedom of movement, especially at construction sites and different working points. The system has an operating time of up to 10 hours depending on environmental conditions, and the charging time is approximately 4-5 hours.

Highlighted Advantages

450 kg lifting capacity
6 suction cup gripping system
360° full rotation capability
90° tilting and lifting
Up to 10 hours of operating time
4-5 hours charging time
Suitability for installing large glasses
Horizontal and vertical glass positioning
Durable structure suitable for factory and construction site conditions
Usability in facade and architectural glass applications
Easy movement thanks to transport wheels

Shipping and Delivery Information

The product can be prepared for shipment in a manner suitable for industrial lifting equipment transportation.
Transportation is available throughout Turkey.
Delivery time may vary depending on stock status and delivery address.
Shipping and delivery conditions can be clarified with the seller before ordering.
