| Advertisement No: | #00253631 |
| Category: | Long Term Storage Tanks |
| Brand: | ErichHahn |
| Model Type: | ST-4900 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | 75.Yıl Mah. / Odunpazarı / Eskişehir |
| Sales Detail: | Bank Transfer, Credit Cart, Negotiated |
| Delivery Status: | Made to Order |

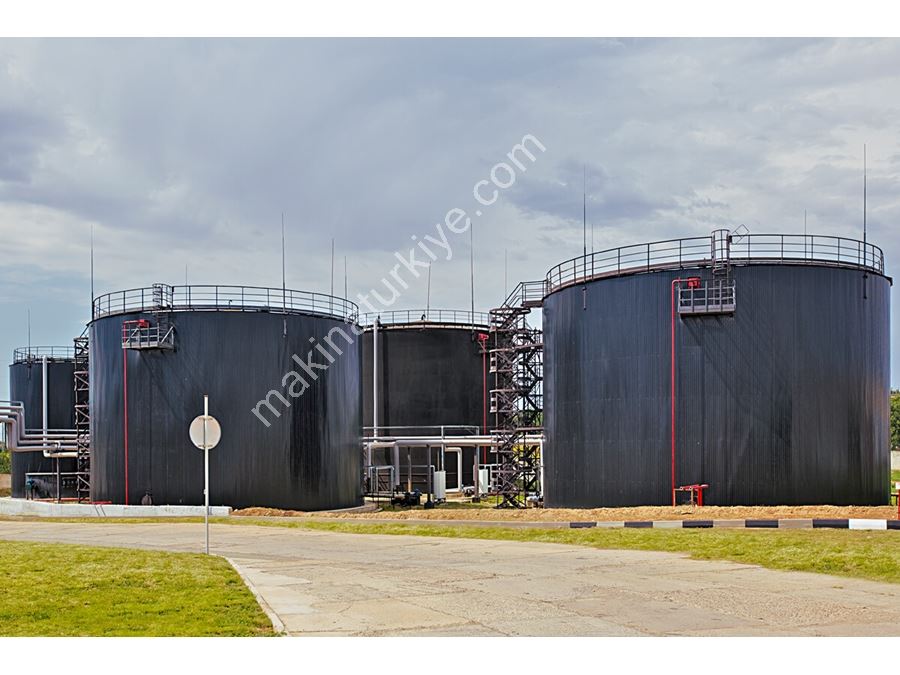

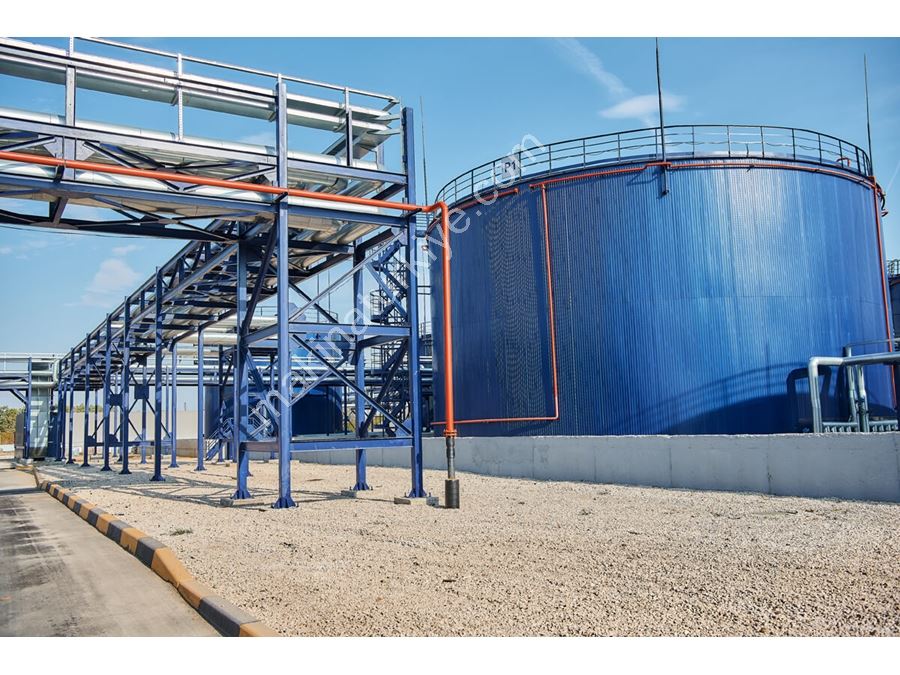

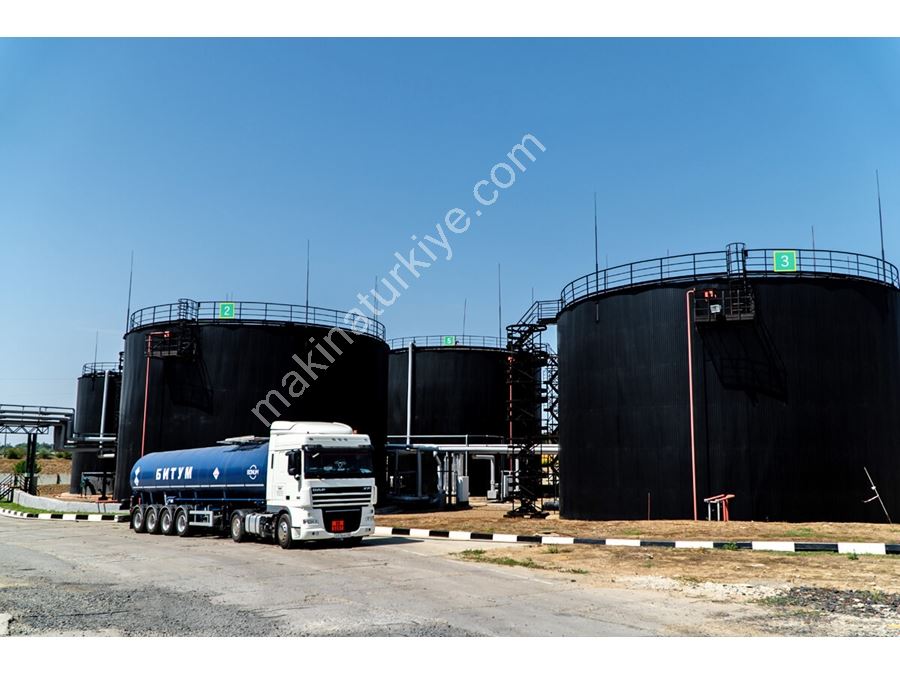

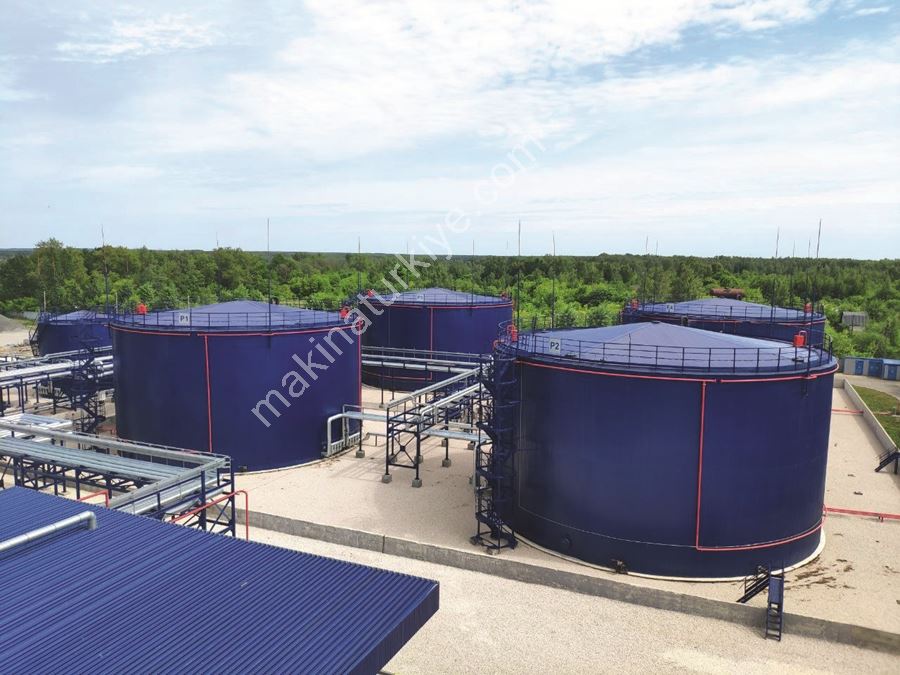

ErichHahn ST long-term storage tanks are vertical cylindrical steel tanks with capacities ranging from 4,900 to 10,000 m3, with different heights and diameters. The tanks are equipped with all necessary process piping systems. The product range includes ST-4900, ST-9000, ST-10000 ErichHahn ST Advantages Mobile tanks are designed for the active heating of heavy oil and the preservation of its quality. Mobile tanks can also be used as process tanks in the oil, gas, chemical, food, and other industries. Components of Heating Tanks Vertical Steel Structure The steel structure consists of a wall, roof, and base. The production and assembly of the tanks are carried out using both rolled and sheet methods. Insulation A heat insulation layer covered with a protective casing made of galvanized steel has been provided to reduce heat loss and maintain the temperature regime. Loading System The electrically actuated gate valve is remotely controlled by a signal from the control panel. Discharge Device The emptying of the tanks is carried out by an electrically actuated gate controlled remotely by a signal from the control panel. A shut-off valve is provided for manual control. Side Mixer The mixer is mounted at a 90° angle to the tank. The sealing of the shaft outlet is ensured by a mechanical seal. Heating System The product is heated to the required temperature by the oil heating sections located at the bottom of the tank. Each heating section consists of a support frame and a tubular structure. The number of sections depends on the diameter of the tank. Oil Distributor The operation of individual heating sections can be stopped manually or automatically. In automatic mode, tank heating can be remotely stopped using an electrically operated adjustable gate mounted at the outlet of the return manifold. Steam Discharge Device The steam discharge device consists of a ventilation pipe and a steam trap. Emergency Overflow Protection In the event of an automation failure, when the maximum emergency level of the tank is exceeded, the product is discharged into an emergency tank through a special pipe. Control Cabin The tank comes with a local control panel. The panel allows monitoring and controlling instruments in the field or remotely and can be integrated into the APCS. External environment conditions Medium Ambient temperature, °C -40 to +40 Working environment Viscous and solidifying liquids Max. temperature of working environment, °C 160 Nominal volume, m³ 4900 Tank capacity, m³ 4848 Inner diameter, mm 19000 Height, mm 18000 Weight, kg 144030 Stairs Circular staircase with railing Inspection covers Provided Steam discharge device Provided Emergency overflow protection Provided Steel structure parameters Number of tank layers 12 Layer thickness, mm 12.Haz Roof coating thickness, mm 4 Bottom thickness, mm 4 Wall structure Rolled Bottom structure Rolled Roof structure Framed, conical Insulation Wall insulation thickness, mm 200 Roof insulation thickness, mm 200 Coating material Polymer coated steel sheet Loading system Tank loading type Top Gate valve Provided Connection flange, DN, mm 150 Discharge system Tank discharge type Bottom Electrically actuated gate valve Provided Connection flange, DN, mm 150 Mixer Device type - Quantity - Electric actuator power, kW - Shaf speed, rpm - Heating system Number of oil heating sections 4 Heat transfer fluid Hot oil Max oil temperature at 0.6 MPa, °C 200 Oil distributor Pressure sensor Provided Temperature sensor Provided Electrically actuated valve Provided Connection flange, DN, mm 100 Instrumentation Radar level transmitter Provided Maximum level alarm Provided Sampling device Provided Temperature transmitter Provided Bimetallic thermometer Provided Control panel Provided Country of origin Turkey ErichHahn ST-4900 Long-Term Storage Tank
It allows for the top filling of the oil product. The inlet is placed above the maximum level. The entire system is mounted inside the tank. The channel prevents oil splashing during loading.
The discharge device is designed for emptying the tanks and releasing the product remaining at the bottom. It consists of a pipeline and shut-off valves.
The side mixer is designed to homogenize the heavy oil stored in the tanks. The device consists of a three-bladed mixing shaft driven by a gear motor.
The oil distributor is designed to evenly distribute the heat transfer fluid to the tank heaters. It consists of a two-pipe distributor (for supply and return), brackets for tank connection, shut-off valves, and temperature and pressure sensors.ErichHahn ST-4900 Technical Specifications
