| Advertisement No: | #00250368 |
| Category: | Gas Metal Arc Welding Machine |
| Brand: | Magmaweld |
| Model Type: | ID 500MW-5 Pulse Smart |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Çamçeşme Mah. / Pendik / İstanbul |
| Sales Detail: | Bank Transfer, Negotiated |
| Delivery Status: | In stock |

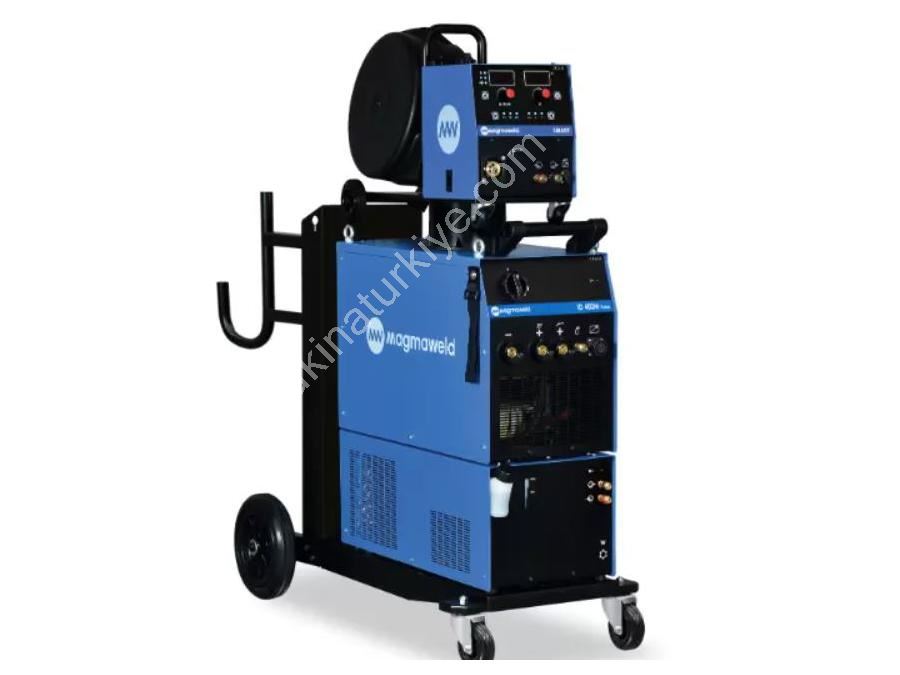

Magmaweld ID 500MW-5 Pulse Smart - 500 A Gas Shielded Welding Machine Works with 3 Phase 400V~50/60 Hz mains voltage and generators. Tolerates voltage fluctuations up to 15%. Thanks to inverter technology, it is more energy efficient compared to conventional machines. With vertical and horizontal welding characteristics (CC/CV), it can be used for MIG/MAG method as well as Electrode, Carbon Cutting and TIG welding. Splash is kept at a minimum level thanks to optimized electronic inductance. Offers 3 different operating modes: Conventional, Smart and Synergetic. In synergetic mode, welding parameters (wire type, diameter, gas type, metal thickness) can be easily adjusted. Soft Start, Pre Gas, Post Gas, Burnback settings are available for the user. All gas and welding settings can be controlled from a single interface with wire feeding unit. It has 3 program memories. With 4-roller and 4-pulley encoder-controlled wire feeding system, deformation-free welding can be done even with long torches. It has free wire feeding and gas test button. It is compatible with different wire diameter rollers and all barrel packaging. There is a 24V AC power output for CO2. Welding data can be stored, monitored and reported in real time with magNET integration. (Optional) In water-cooled system, fan and pump work automatically, providing energy savings. The system life is extended with smart cooling control. Blockage is prevented with elevator wire feeding to work with large coils. Standard accessories are provided with the machine. Technical Specifications
Feature
Value
Mains Voltage (3 Phase)
400 V
Power Drawn from the Mains
32.7 kVA (%40)
Power Efficiency
MMA 85.74% / MIG 86.12%
Standby Power Consumption
23 W
Rated Welding Current
500 A (%40)
Welding Current Adjustment Range
50 - 500 A
Open Circuit Voltage
82 V
Weight (Net)
103.5 kg
Dimensions (w x d x h)
1139 x 528 x 1082 mm
Wire Feeding System
4-roller
Welding Wire Diameter
0.80 - 2.4 mm
Wire Feeding Speed
1 - 24 m/min
Torch Trigger Control
2 / 4
Wire Feeding Unit Size
684 x 330 x 447 mm
