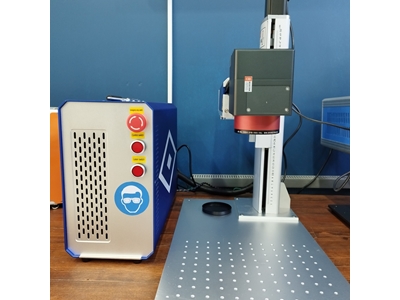

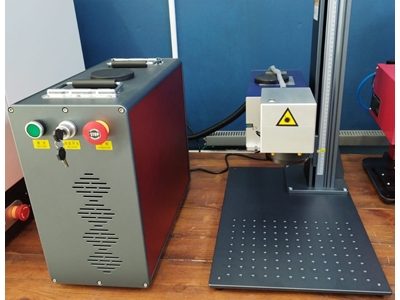

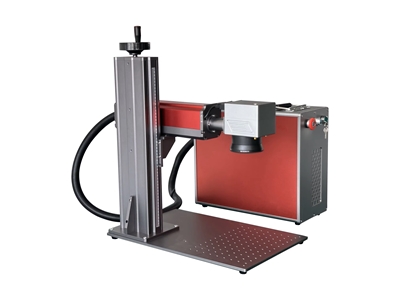

5W UV Laser Marking Machine

UV Laser Marking Machine

UV Laser Marking Machine
Type: Ultraviolet Solid State Portable Static Model

There are very few materials that cannot be marked, almost none. In the shared video, materials where Fiber and Co2 struggle are especially marked. Laser does not heat the material, does not create an explosion effect. Provides Precise and Clean Work. Bring the materials you have been postponing for years, let's mark them...

Flymark Engineering is a machine-engineering company established in 2023 with an expert team to reflect the experience it has gained in the field of marking from the past to the sector. One of our areas of activity is Laser Applications.

Although all these types of industrial laser marking machines seem similar in structure, there are significant differences between them. We recommend not buying a machine without knowing what you're buying. Most of them appear to work the same way and do the same job, but there are differences between them. Without realizing it, you consume the life of the machine you bought incorrectly or use it incorrectly more quickly. We are here with our expert team to manage these processes for you. We provide service all over Turkey. At the same time, we can provide technical service for laser marking, laser cleaning, and micro welding. You can visit our company, get information about our machines. Or for Istanbul and surrounding provinces, we can come and make on-site demonstrations, meet you and discuss, please contact us.

Some challenging materials you can work with UV; Glass, Mirror, Polymers; PS, PVC, PTFE, Teflon, Nylon, PU, PC, PET, PP, LDPE, HDPE, ABS, Amber Stone, Acetate, Coated Metal, Bare Metal, Precise marking on all Metals (surface without engraving), Leather, Wood, Thin Film Marking etc.

Shared Configuration:

Available in Stock

Credit Card Accepted. Invoiced in TRY (₺).

Power: 5W laser power, 355nm wavelength, Control Software: Ezcad

Includes Pedal and Protective Glasses. Air Cooled design, no dealing with water cooling.

Manual Focusing (With dual auxiliary red light),

110x110 mm Marking Area. 0.2 mm Character size. Ergonomic, modern design.

Machine Dimensions: 620 mm (Height) x 488mm (Width) x 318 mm (Depth)

Compatible with Windows XP / 7 / 8 / 10 - 32 / 64 Bit operating systems.

Usage with 220V/50 Hz mains voltage. 240 W power consumption. CE certified.

 Computer is not included. It is shaped according to the customer's request.

The shared system is a portable standard 25 kg.

Comes with 2 years warranty. We can provide for facilities/workplaces with grounding. It is recommended to use with UPS power source provided by us.

Types of laser source technologies that can be supplied: Fiber, CW Fiber, QCW, Q-switched, Pulsed Fiber, CO2, YAG:Nd, UV, Green, MOPA Fiber

Laser Welding Brands we use in Applications: IPG, Coherent, Synrad, JPT, Raycus, MAX, V-GEN, DAVI, FOTIA etc.

Working Area Widths: 70x70mm, 100x100 mm, 110x110 mm, 150x150mm, 200x200mm, 300x300 mm, 500x500mm, and Cartesian solutions for more.

Marking Speeds: Up to 3000 mm/s - 15000 mm/s.

Laser Output Powers: From 1W to 200Watt (Power Adjustment: up to 100%)

Control Software: Ezcad 2.0, Ezcad 3.0, Ligthburn etc.

For Marking Machines only, Enclosed, Tabletop, OSH compliant mini enclosures, Camera products, Dynamic Marking (Flymark applications), Cartesian products, Enclosed Cartesian products, Automatic focusing, Vision-engraved Machines, 3D marking machines, Handheld Portable products, special designs for cleaner environments and much more.
