About 500 Kg Glass Installation Suction Cup

About RZM YV500 500 Kg Auxiliary Glass Lifting Suction Cup

The RZM YV500 Auxiliary Glass Lifting Suction Cup is designed for lifting and holding glass sheets.

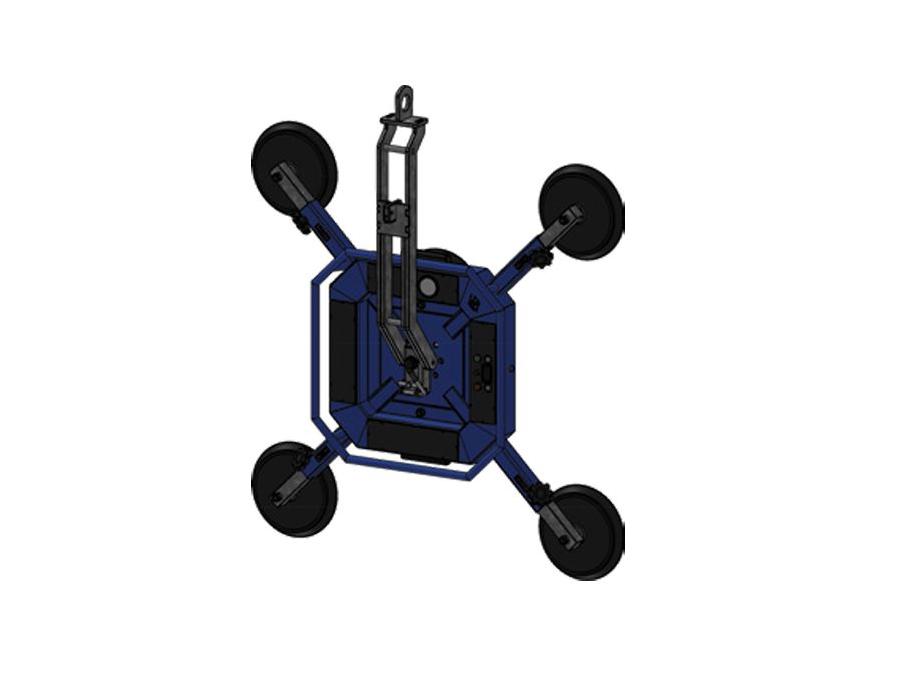

About RZM MV500 500 Kg Glass Installation Suction Cup

The RZM MV500 Glass Installation Suction Cup is a vacuum glass lifting equipment developed for lifting, rotating, tilting, and positioning large and heavy glass sheets during installation. With a 500 kg lifting capacity, it can be used in professional glass handling and installation applications in factory and construction site environments.

The machine allows for 360° full rotation and 90° tilting and lifting of the glass. Thanks to the rechargeable operating system, it can be used at different working points without needing a fixed electrical connection. It offers up to 10 hours of operating time depending on environmental conditions.

Areas of Use

• Facade glass installation

• Lifting large glass sheets

• Positioning glass horizontally and vertically

• Glass loading and unloading operations

• Internal glass transfer in factories

• Glass production and processing facilities

• Construction site type glass installation applications

• Architectural glass applications

• Transporting heavy glasses to the installation point

Technical Specifications

500 Kg Lifting Capacity

The RZM MV500 is designed for lifting and positioning glass sheets up to 500 kg. It helps in controlled movement during the installation of large and heavy glasses.

360° Rotation and 90° Tilting

After being grasped by the glass suction cups, 360° full rotation can be performed. Additionally, thanks to the 90° tilting and lifting feature, the glass can be moved between horizontal and vertical working positions. This feature provides ease of use, especially in facade and architectural glass installations.

4 Suction Cup Gripping System

The machine has 4 wide-surfaced suction cups that help grasp the glass from different points. The vacuum holding system is designed for lifting and positioning glass sheets with suitable surface conditions.

Rechargeable Operating System

The RZM MV500 offers up to 10 hours of operating time depending on environmental conditions. It can be prepared for reuse with an approximate 4-5 hour charging time. The rechargeable structure provides freedom of movement, especially in construction sites and different working points.

Highlighted Advantages

• 500 kg lifting capacity

• 4 suction cup gripping system

• 360° full rotation capability

• 90° tilting and lifting

• Up to 10 hours of operating time

• 4-5 hour charging time

• Suitable structure for large and heavy glasses

• Horizontal and vertical glass positioning

• Suitability for factory and construction site use

• Practical use in glass installation and handling operations

Shipping and Delivery Information

• The product can be prepared for shipment suitable for industrial lifting equipment transportation.

• Transportation is available throughout Turkey.

• Delivery time may vary depending on stock status and delivery address.

• Shipping and delivery conditions can be clarified with the seller before the order.

It is a pneumatic vacuum lifting equipment developed for lifting, rotating, and positioning glass. The system with a 500 kg lifting capacity is designed to assist the operator in managing heavy glasses more easily, especially in glass processing and production lines.

The machine operates with 8 bar filtered and conditioned air. Vacuum production is carried out with a pneumatic ejector venturimeter system. The controls on the oval guiding handle allow for capturing, releasing, quick unloading, up and down movement, 90° tilting-lifting, and 90° rotating operations.

Areas of Use

• Lifting glass sheets
• Glass handling and transfer operations
• Loading glasses onto production machines
• Taking glasses from the machine output
• Positioning glass horizontally and vertically
• Glass processing facilities
• Glass production factories
• Internal glass transfer on the production line
• Operator-controlled transportation of heavy glasses
• Glass loading and unloading applications

Technical Specifications

500 Kg Lifting Capacity

The RZM YV500 can be used for lifting and transporting glasses up to 500 kg. It assists the operator in the handling and positioning of heavy glass plates in the production area.

Pneumatic Vacuum System

Vacuum production is provided through a pneumatic ejector venturimeter system. The system requires filtered and conditioned air at 8 bar pressure to operate. A vacuum gauge is provided as standard.

90° Tilting and 90° Rotation

The glass can be tilted and lifted 90° and rotated 90° on the system. This feature helps in bringing the glass to different working positions and positioning it appropriately for subsequent processing on the production line.

Operator Controlled Guiding Handle

The oval guiding handle has the necessary controls for managing the glass. The operator can:

• Capture and release the glass
• Safety control
• Quick unloading
• Up and down movement
• 90° tilting and lifting
• 90° rotation

These operations can be performed from this section.

Adjustable Movement Speed

Tilting-lifting, up-down movement, and rotation speeds are adjustable. This allows for more controlled movement according to the size of the glass and the operation to be performed.

Highlighted Advantages

• 500 kg lifting capacity
• 8 bar pneumatic operating system
• 90° tilting and lifting
• 90° rotation
• Pneumatic ejector venturimeter vacuum system
• Standard vacuum gauge
• Operator controlled guiding handle
• Adjustable movement speeds
• Compatibility with glasses between 1380 x 700 mm and 2500 x 1600 mm
• Suitability for use in glass production and processing lines
• Structure that facilitates the transportation and positioning of heavy glasses

Shipping and Delivery Information

• The product can be prepared for shipment suitable for industrial lifting equipment transportation.
• Transportation is available throughout Turkey.
• Delivery time may vary depending on stock status and delivery address.
• Shipping, loading, and delivery conditions can be clarified with the seller before the order.
