| Advertisement No: | #00087922 |
| Category: | CNC Lathe Machine |
| Brand: | Focus |
| Model Type: | FNL-250Y |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Other |
| Location: | Atatürk Organize Sanayi Mah. / Çiğli / İzmir |
| Sales Detail: | Bank Transfer |
| Delivery Status: | In stock |

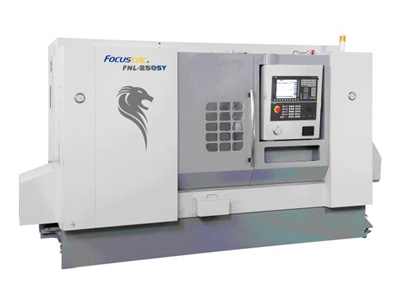

MODEL
FNL-250Y
Kontrol Ünitesi
Fanuc 18i-TB
MACHİNİNG ABİLİTY
Swing Over Bed
mm
Ø600
Swing Over Cover
mm
Ø600
Max.Cutting Diameter
mm
Ø350
Cutting Diameter
mm
Ø280
Max.Cutting Length
mm
558
Max.Bar Material Diameter
mm
Ø65
SPİNDLE
Spindle Nose
ASA
A2--6
Chuck Size
in/mm
8''/210 op(10''/254)
Spindle Hole Diameter
mm
Ø77
Spindle Speed
rpm
4500
Spindle Motor(Cont./30 min)
kw
11/15 (a P22i)
CS/CF Min.İndex Accuracy
0.001°
TRAVEL
X/Z-Axis Travel
mm
260/600
Y-Axis Travel
mm
± 55
X/Z -Axis Rapit Traverse
m/min
24/30
Y -Axis Rapit Traverse
m/min
10
TURRET
Number Of Tools
12
Turning Tool Size
mm
?25
Boring Tool Size
mm
Ø40
Sepcification Of Power Tool
BMT60
Diameter Of Power Tool
mm
Ø20
Speed Of Power Tool
rpm
4000 op(6000)
Tool Change Time
sec
0.2
Tailstok
Tailstok Travel
mm
650
Tailstok Rapid Traverse
m/min
7
Quill Diameter
mm
Ø80
Quill Taper Hole
MT4 opt.(MT5)
Coolant Capacity
L
200
Voltage/Power
KVA
40
Machine Net Weight
kg
5700
