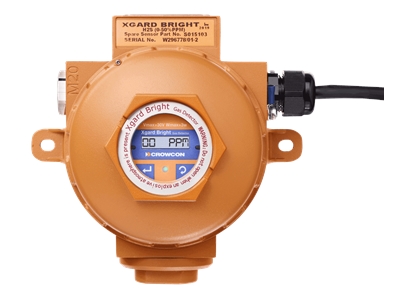

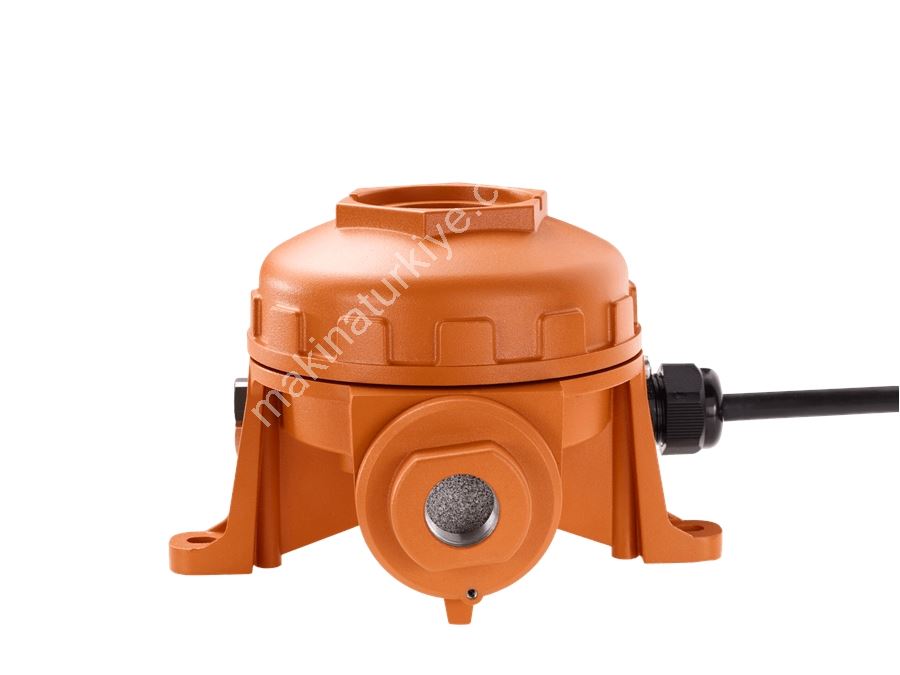

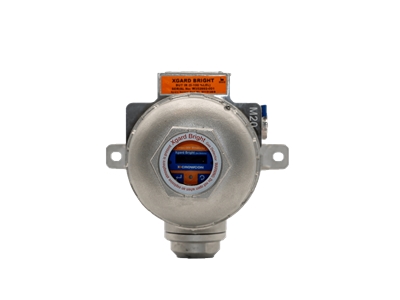

Crowcon Xgard Bright Gas Detector General Features

Equipped with MPS™ technology that eliminates the risk of poisoning and the need for calibration, Xgard Bright is a next-generation multi-gas detection technology.

This fixed detector offers flammable and toxic gas detection and oxygen monitoring features, as well as low installation costs and ease of use.

Xgard Bright is a versatile detector that provides flammable and toxic gas detection and oxygen monitoring, ensuring ease of use and low installation costs.

Choose from durable sensor options suitable for your needs; for example, MPS (10+ years), Long-life O2 ₍ 5 years) and IR sensors (10+ years) minimize operational costs by eliminating the need for frequent sensor replacements.

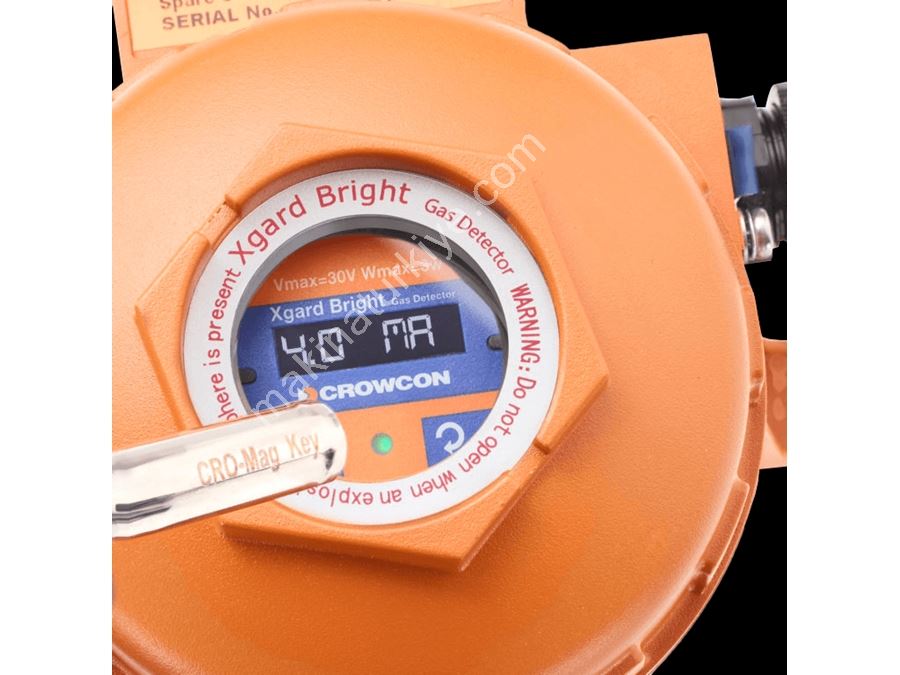

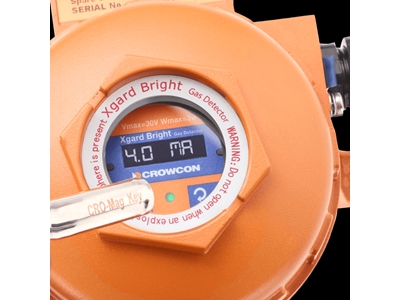

The 4-wire addressable application that reduces installation costs significantly decreases wiring requirements. The large OLED display allows users to easily operate the Xgard Bright without needing to open the enclosure during installation, calibration, and routine maintenance.

Xgard Bright, which provides standard analog 4-20mA and RS-485 Modbus signals, comes standard with Alarm and Fault relays and optional HART communication.

Crowcon Xgard Bright Technical Specifications

Size	Aluminum housing: ATEX/IECEx: 156 x 166 x 109 mm (6.1 x 6.5 x 4.3 inches) UL: 162 x 166 x 110 mm (6.4 x 6.5 x 4.3 inches) Stainless Steel Enclosure: ATEX/IECEx: 165 x 166 x 105 mm (6.1 x 6.5 x 4.1 inches) UL: 162 x 166 x 103 mm (6.4 x 6.5 x 4.1 inches)
Cable Entry	2x M20 or 2x ½” NPT (Stop plug fitted to the left entry)
Operating Voltage	12-30Vdc.
Power	3W maximum
Electrical Output	3-wire 4-20mA (Stack or Source) RS-485 Modbus RTU HART 7 (Optional)
Weight	Aluminum housing: ATEX/IECEx: 1 kg (2.2 lbs) UL: 1.5 kg (3.31 lbs) Stainless Steel Enclosure: ATEX/IECEx: 3.1 kg (6.8 lbs) UL: 3.5 kg (7.72 lbs)

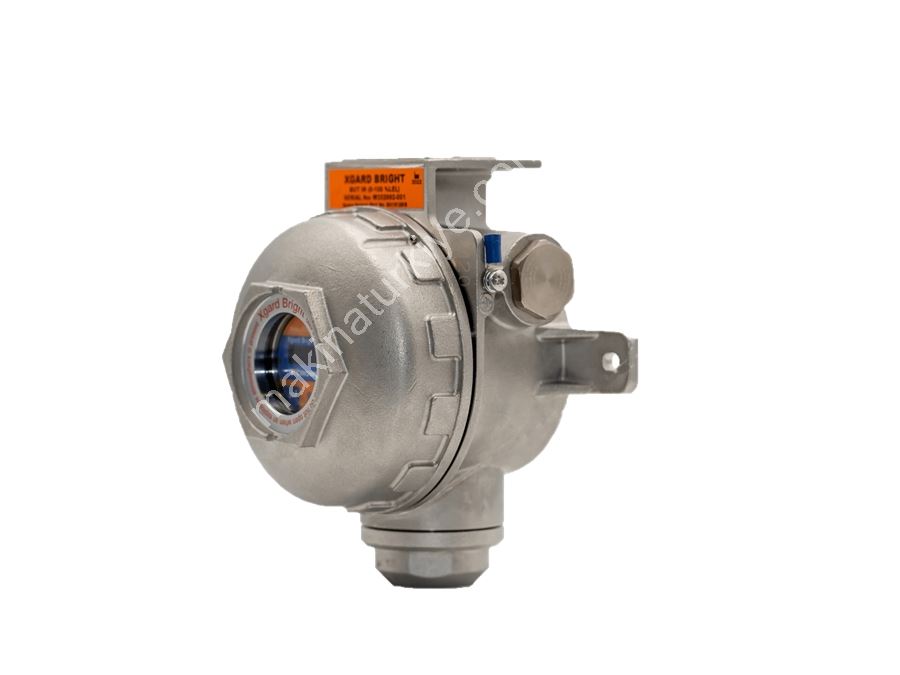

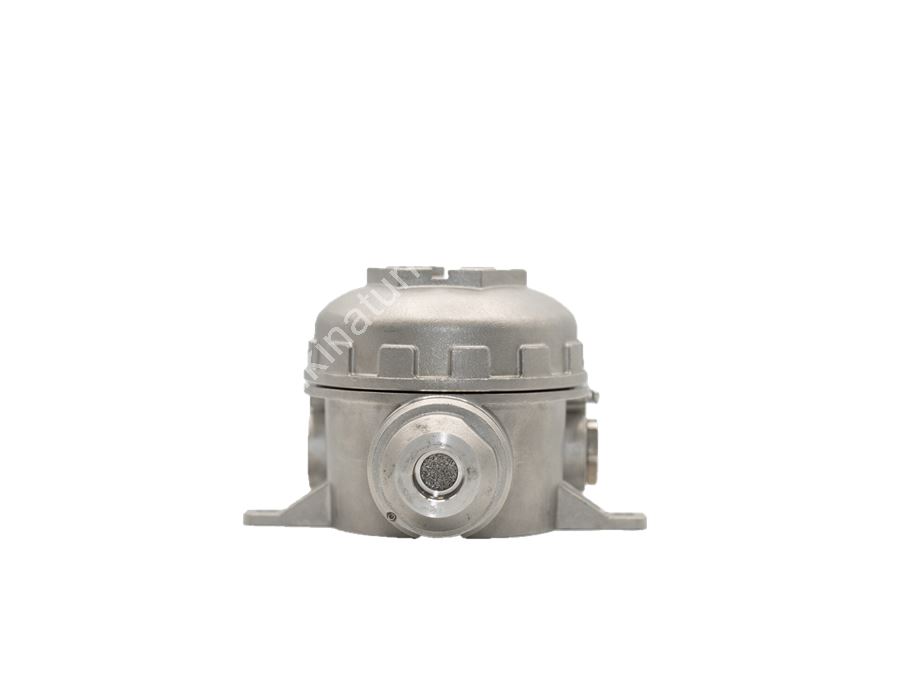

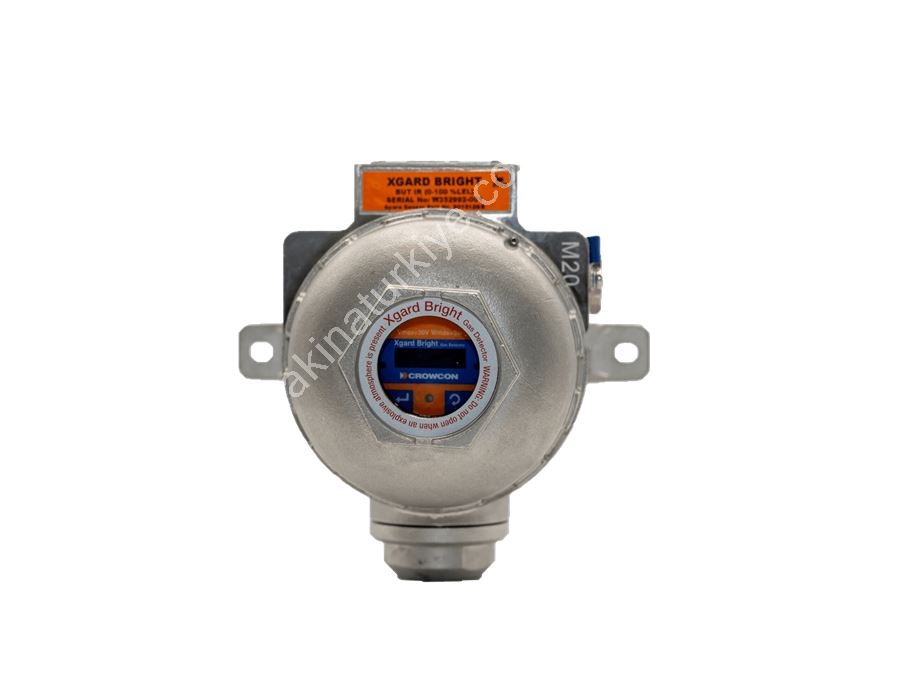

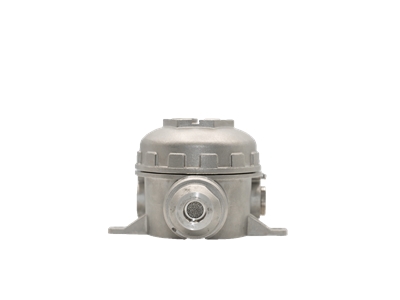

Enclosure Material	ADC 12 aluminum alloy or 316 stainless steel
Relay	Alarm 1, Alarm 2, Fault (SPDT Contacts. Nominal 1A, 24Vdc)
Sounder Out	High Side Switch (24V nominal, 12V minimum, 700mA maximum load)
Operating Temperature	ATEX/IECEx: -40°C to +70°C (-40°F to 158°F) UL: -40°C to +60°C (-40°F to 140°F)
Humidity	0% to 95% RH, non-condensing For the operating humidity range of the sensor, contact Crowcon.
Repeatability	+/- 2% FSD
Zero Drift	Annual maximum +/- 2% FSD
Ingress Protection	IP65/66, EN 60529
Hazloc Standards and Approvals	ATEX: EN IEC 60079-0, EN 60079-1, EN 60079-31 IECEx: IEC 60079-0, IEC 60079-1, IEC 60079-31 Zone 1 and Zone 2 or Zone 21 and Zone 22 Aluminum: Ex II 2 G Ex db IIC T6 Gb Tamb: -40°C≤Ta≤70 °C Ex II 2 D Ex tb IIIC T80°C Db Ex db IIC T6 Gb Tamb: -40°C≤Ta≤70 °C Ex tb IIIC T80°C Db Stainless Steel: Ex II 2 G Ex db IIC T3 Gb Tamb: -40°C≤Ta≤70 °C Ex II 2 G Ex db IIC T4 Gb Tamb: -40°C≤Ta≤50°C Ex II 2 D Ex tb IIIC T80°C Db Ex db IIC T3 Gb Tamb: -40°C≤Ta≤70°C Ex db IIC T4 Gb Tamb: -40°C≤Ta≤50°C Ex tb IIIC T80°C Db UL: UL 1203 -40°C≤Ta≤60 °C Class I, Division 1, Groups B, C, D T6 Class II Division 1, Groups E, F, G T6
Certifications	UL, IECEx, ATEX, CE, ECAS, PESO, CNEx, UC, CCSA TA, MED***
EMC Compliance	EN 50270, EN IEC 61326-1, EN 55011, CISPR 11, EN 61000-4
Performance	UL 60079-29-1***
Zones	Certified for use in Zone 1 and Zone 2 areas

Crowcon Xgard Bright Gases and Ranges

Gas	Sensor Type	Gas Range	Temperature Range °C
Flammable gases*	MPS	0-100% LEL	-40 to +75
Butane (C 4 H 10 )	Infrared	0-100% LEL	-40 to +60
Hydrogen (H 2 )	Catalytic	0-100% LEL	-40 to +70
LPG	Catalytic Infrared	0-100% LEL	-40 to +70 -40 to +60
Methane (CH 4 )	Catalytic Infrared	0-100% LEL 0-100% LEL	-40 to +70 -40 to +60
Pentane (C 5 H 12 )	Catalytic Infrared	0-100% LEL 0-100% LEL	-40 to +70 -40 to +60
Propane (C 3 H 8 )	Catalytic Infrared***	0-100% LEL 0-100% LEL	-40 to +70 -40 to +60
Carbon Monoxide (CO)	Electrochemical	0-25, 50, 100, 200, 250, 300, 1000, 2000 ppm	-30 to +50
Hydrogen Sulfide (H 2 S)	Electrochemical	10, 20, 25, 50, 100, 200 ppm	-40 to +50
Oxygen (O 2 ) Long Life (Lead-free)	Electrochemical	0-25% volume	-40 to +60
Oxygen (O 2 )	Electrochemical	0-25% volume	-20 to +50
Carbon Dioxide (CO 2 )	Infrared	0-5% volume	-40 to +60

Gases and Stoves – XsafeBright

Gas	Sensor Type	Gas Range	Temperature Range °C
Flammable gases*	MPS	0-100% LEL	-40 to +75
Ammonia (NH3)	Electrochemical	0-50, 100 ppm	-40 to +50
Chlorine (CL2)	Electrochemical	0-5, 10 ppm	-20 to +50
Hydrogen Cyanide (HCN)	Electrochemical	0-25 ppm	-40 to +40
Hydrogen Peroxide (H2O2)	Electrochemical	0-5 ppm	-20 to +50
Hydrogen Sulfide (H 2 S)	Electrochemical	10 ppm	-40 to +50
Sulfur Dioxide (S O 2 )	Electrochemical	0-10 ppm	-20 to +50
Volatile Organic Compounds*	PID	0-1000 ppm	-20 to +60
Ozone (O3)	Electrochemical	0-1 ppm	-20 to +40
Carbon Dioxide (CO 2 )	Infrared	0-5% volume	-40 to +60
