Advertisement No: | #00251156 |
Category: | 7 Unit PVC Edge Banding Machine |
Brand: | Mova Press |
Model Type: | KB 75 |
Product Type: | For Sale |
Product Status: | New |
Origin: | Turkey |
Delivery Status: | In stock |
Location: | Mansurlu Mah. / Aladağ(Karsantı) / Adana |
Sales Detail: | Bank Transfer, Negotiated |

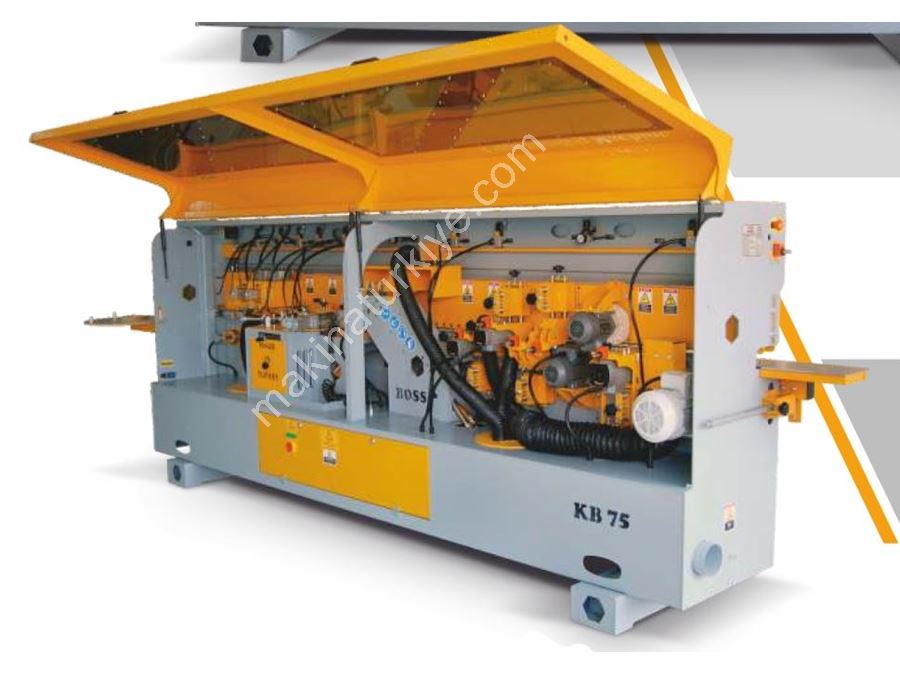

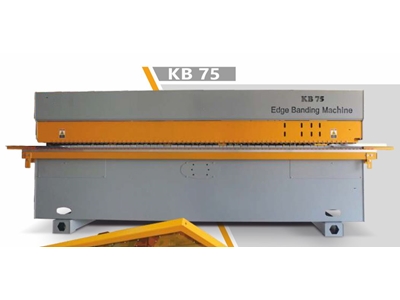

Edge Banding Machine with 14000 mm/min Feed Speed An edge banding machine is a specialized woodworking tool used to apply edge bands—typically made of PVC, ABS, melamine, or wood veneer—to the exposed edges of wood panels such as MDF, chipboard, or plywood. It ensures a smooth, professional, and durable finish, ideal for modern furniture production. Key Features Automatic Gluing & Banding: Trimming & Buffing Units: Corner Rounding (Optional): Polishing Section: Why Use It? Enhances the visual appeal of furniture Protects panel edges from moisture and damage Improves the product's lifespan and durability Ensures a professional and high-end finish Technical Specifications Feature Value Glue heating time 25 min Edge band thickness 0.40 mm - 3 mm Edge band height 45 mm Workpiece dimensions 80 mm - 150 mm Feed speed 14000 mm/min (14 m/min) Pre-milling unit 2x 1.5 kW, 12000 rpm Pre-milling cutter 20x70x50 mm End trimming unit 2x 0.25 kW, 12000 rpm End trimming saws 3.2x20x100 mm Bottom trimming unit 2x 0.37 kW, 12000 rpm Bottom trimming cutter 6 edges R3 Radius scraping thickness 0.40 mm / 2 mm R3 Top polishing unit 2x 0.25 kW, 3000 rpm Channel opening unit 2.2 kW, 12000 rpm Channel opening saw 4.5x20x90 mm Total power 12 kW Network voltage 380 V ~ 50 Hz Reducer revolution 18 rpm Pneumatic bar pressure 8 bar Glue tank volume 5 kg Dust extraction motor 0.75 kW, 3000 rpm Machine Dimensions Dimension Value Length 4500 mm Height 1450 mm Width 700 mm Weight 1190 kg (approx.)
Applies hot melt adhesive and presses the band securely onto the panel edge.
Removes excess banding material and smoothens the edges for a clean finish.
Rounds off sharp corners to enhance both safety and aesthetics.
Provides a final polished and glossy appearance to the edges.
