| Advertisement No: | #00143899 |
| Category: | Roll Sheet Uncoiler Driver Machines |
| Brand: | Teknofinsteel |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Ziya Gökalp Mah. / Başakşehir / İstanbul |
| Warranty Status: | 2 Yıl Guaranteed |
| Sales Detail: | Bank Transfer, Credit Cart, Eligible for Credit, Negotiated |
| Delivery Status: | 7 Gün |
TECHNICAL SPECIFICATIONS ACCESSORIES NOTE:TEKNOFINSTEEL 600

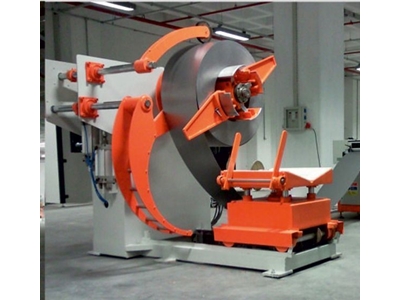

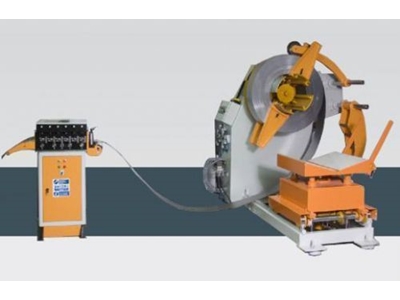

Hydraulic Sheet Uncoiler
MODEL
TEKNOFINSTEEL 600
Belt Width (mm)
110 ~ 600
Belt Thickness (mm)
0.5~4.5
Straightening Performance
Thickness 0.5 ~ 2.3 mm → Width 600 mm
Thickness 2.5 mm → Width 500 mm
Thickness 2.8 mm → Width 400 mm
Thickness 3.2 mm → Width 300 mm
Thickness 4.5 mm → Width 150 mm
Reel Weight
3 TON
Min. Reel Inner Diameter (mm)
Ø 480 - Ø 520
Max Reel Outer Diameter (mm)
Ø 1200
Max.Feeding Speed (m/min)
16
Max. Press Stroke Number
100 strokes / minute (pneumatic limitation)
Feeding Accuracy (mm)
±0.15
Number of Straightening Rolls
Top x 3 pieces Bottom x 4 pieces (Ø 64 mm)
Feeding Height (mm)
1100 - 1300
Feeding Voltage
380 V AC 50 Hz
< td> Pressure Air Supply (kg/cm2)
5
Reel Uncoiler Mandrel Diameter Adjustment Movement
Hydraulic
Main Motor (kw)
AC / 4
Reel Uncoiler Rotation Motor (kw)
AC / 1.5
Optical sensor controlled sheet camber control
Hardened, ground and chrome plated driver and straightening rolls
Pneumatic driven guide arm guiding the initial loading of the sheet at the straightener entry
Electric motor driven wheels pressure arm preventing reel outer bouncing
Motorized infinite gear for feeding height adjustment (+/- 100 mm)
Inverter Controlled Uncoiler Motor
Precise Straightening Adjustment Mechanism and Scale
Gearbox coupled to servo motor
Disk brake system
Adjustable straightener.
1- The performance values specified above are guaranteed for steels with a tensile strength of 400 N/mm².
2- Teknofinsteel reserves the right to change technical specifications without informing other parties for the purpose of development.
3- Teknofinsteel Machinery shall not be liable for malfunctions arising from operation beyond the specified limits.
