| Advertisement No: | #00185112 |
| Category: | Volumetric Liquid Filling Machine |
| Brand: | Elektromag |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Üniversite Mah. / Avcılar / İstanbul |
| Warranty Status: | 2 Yıl Guaranteed |
| Sales Detail: | Bank Transfer, Negotiated |
| Delivery Status: | In stock |
• Advanced easy-to-use Beckhoff PLC control system • Touch screen 7'' or 15'' operator panel • Weight adjustment on the screen with servo • Suction and discharge with servo motor • Very easy to clean Tri-clamp quick connector • Scada screen • Unlimited prescriptions • Remote access, being able to access machine screens from your computer and intervene or see production quantities. • Input full, output full and all sensors on the machine reporting an error on the screen. • Door with safety contact and emergency stop • Low electricity consumption and quiet operation thanks to variable conveyor speed • Thanks to analog cards, all controls are on the screen. • Sensors (photocell) used on the machine SICK, KEYENCE, SONIC • Pneumatic materials used on the machine SMC, FESTO • All gear reducers used on the machine are Bonfiglioli • All 304 and 316 stainless steel materials used on the machine are licensed. • Easy change in a short time • Ease of maintenance and service • Closed enclosure in CE norms to ensure occupational safety and environmental cleanliness Technicial Specifications System: Starred Working Principle: Volumetric, Stop and Go Construction: Chassis steel, product contact surfaces AISI 316, all visible surfaces AISI 304 quality stainless Control Unit: Beckhoff Filling tank: 80lt (with sensitive level control) Packaging: Plastic, glass, metal Cylinder: Shot brand glass or AISI 316 Nozzle: Internal valve Cap type: Threaded cap, Aluminum ROPP (Roll-on pilfer-proof), Press on snap cap Closure system: Servo/Magnetic clamping, Piston snapping and Aluminum ROPP Weight setting: Via touch screen Filling Accuracy: ± 0.3% Electricity Requirement: 380V, 50Hz, 3 Phase Air Requirement: 6-8 Bar Energy Consumption: 6 kW Air Consumption: 500 lt/min Weight: ~740kg Capacity: It varies according to the bottle form and product viscosity.Elektromag M-MDL-A01

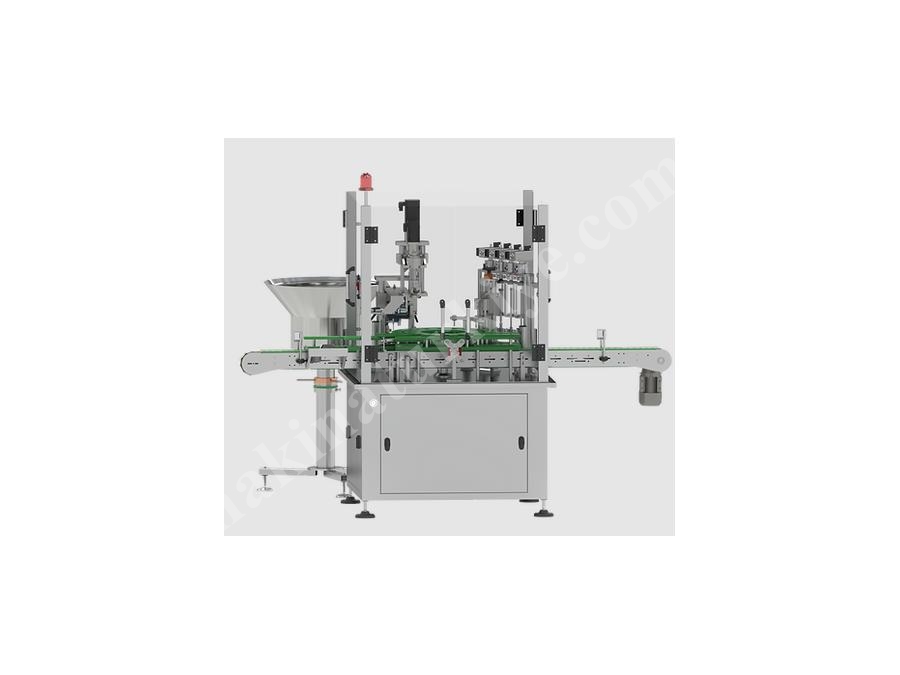

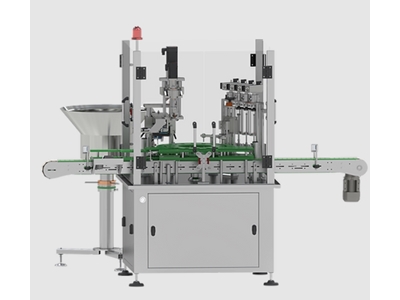

Modular System Volumetric Liquid Filling Machine
