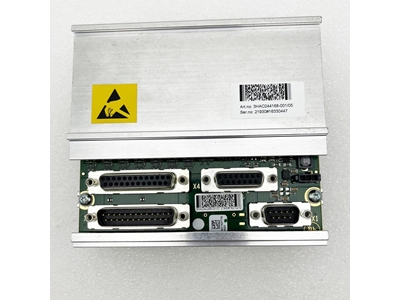

SMB Series Measurement Card

Advertisement No:	#00257289
Category:	SMB Measurement Card
Brand:	ABB
Model Type:	3HAC044168-001
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	Yenişehir Mah. / İzmit / Kocaeli
Warranty Status:	2 Yıl Guaranteed
Sales Detail:	Bank Transfer, Credit Cart, Negotiated
Delivery Status:	In stock

Price:

Ask For Price

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

Mers Robot

Mers Robot Sanayi Ve Otomasyon Limited Şirketi

Advisor : Muratcan Ç.

Go to the store

Add to My Favorite Store

All Ads

+90 534 827 78 **

Send Message

Fast Chat

About ABB 3HACSMB (Series Measurement) Card

The ABB 3HACSMB (Serial Measurement Board) Card is the original measurement card that processes resolver and encoder signals from axis motors in ABB IRC5 robot systems, transmitting the robot's position information to the control system. It contributes to the precise motion control of the robot and the reliable execution of axis coordination.
It converts angle, position, and revolution information received from servo motors into digital data at high speed and transfers it to the axis computer. This supports real-time position tracking and precise trajectory control of the robot.
By working with the SMB Battery, it helps preserve the robot's Revolution Counter and axis calibration data when the main power is cut off. This ensures that the system can safely use its reference information when power is restored.
It is designed to be fully compatible with the SMB connection box located at the base or upper arm section of ABB IRC5 robot manipulators. It allows for easy installation in place of the existing card, enabling maintenance processes to be completed quickly.
Thanks to its durable electronic structure suitable for industrial working conditions, it offers reliable performance in production environments with vibrations, temperature changes, and electromagnetic interference.

Areas of Use

ABB IRC5 robot systems
Serial Measurement Board (SMB) applications
Resolver signal processing systems
Encoder data management
Robot axis calibration
Revolution Counter systems
Robot manipulators
Robot maintenance and service works
Industrial automation systems
Robot revision applications

Technical Specifications

Feature	Value
Product Name	ABB SMB (Serial Measurement) Card
Part Code	3HAC
Brand	ABB
Part Type	SMB (Serial Measurement Board) / Serial Measurement Card
Compatible System	ABB IRC5 Robot Systems
Function	Converts resolver and encoder data into digital signals, manages axis calibration data
Supported Hardware	SMB Battery, resolver and encoder systems
Field of Use	ABB robot manipulators, automation and robotic production lines
Mounting Type	Direct mounting to the original SMB connection box on the robot body (Base or upper arm)

General Features

Precise Position Measurement: Processes resolver and encoder data with high accuracy to create real-time position information of the robot.
Calibration Data Protection: Contributes to the preservation of Revolution Counter and axis reference information with SMB Battery support.
High-Speed Communication: Transfers measurement data to the axis computer with low latency, supporting precise motion control.
Original ABB Compatibility: Offers full hardware compatibility with ABB IRC5 robot systems and SMB infrastructure.
Industrial Durability: Provides reliable operational performance in production environments with high levels of vibration, electromagnetic interference, and temperature changes.
Easy Integration: Can be quickly and securely mounted thanks to original connection sockets.
Protective Maintenance Support: Contributes to the reliable operation of the robot's measurement and calibration system, supporting maintenance processes.
Critical Spare Part: One of the essential electronic components for the accurate positioning of robot axes and reliable motion control.

Shipping and Delivery

The product is shipped with secure packaging.
New and second-hand stock options may be available.
Fast delivery is made to all regions of Turkey.
International shipping options are available.
Delivery time is planned according to stock availability.
Technical support and product consultancy are provided upon request.
