| Advertisement No: | #00116258 |
| Category: | Band Saw Machine |
| Brand: | Beka-Mak |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Başköy Mah. / Nilüfer / Bursa |
| Warranty Status: | 1 Yıl Guaranteed |
| Sales Detail: | Maturity occurs, Guaranteed Sale Available, Suitable for Leasing |
| Delivery Status: | 60 Day |

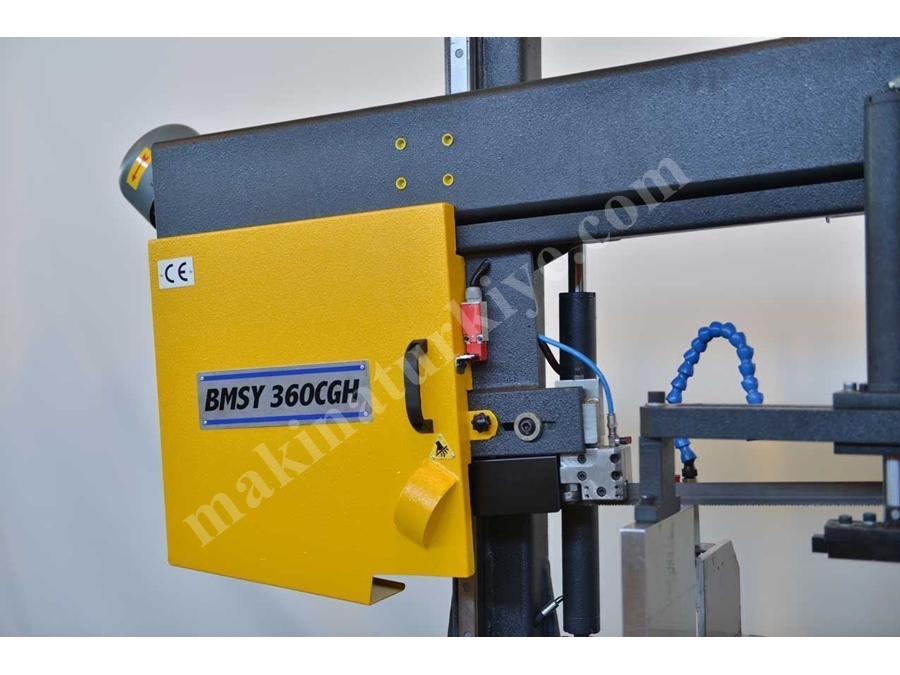

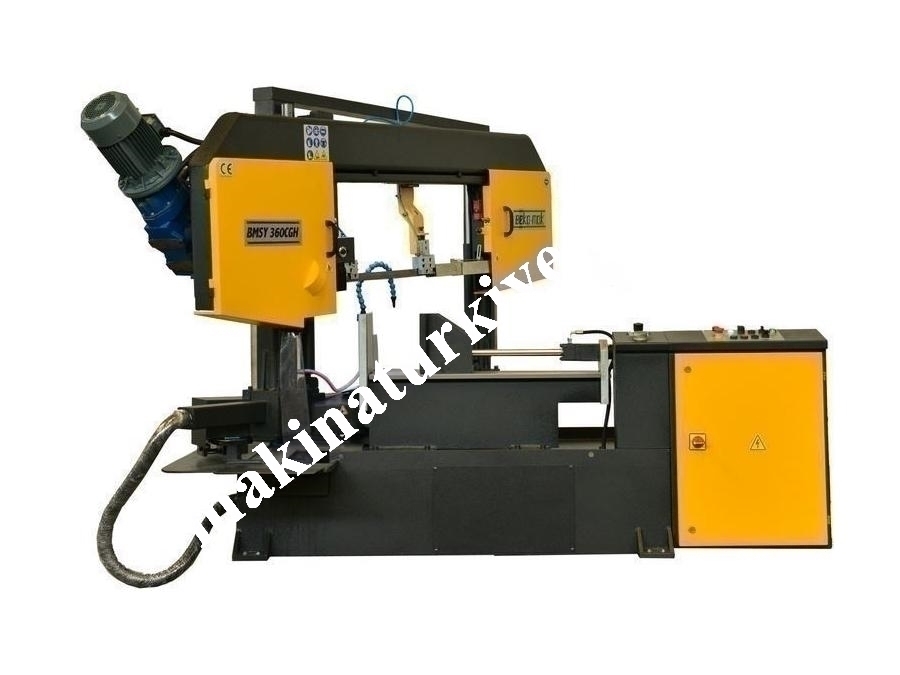

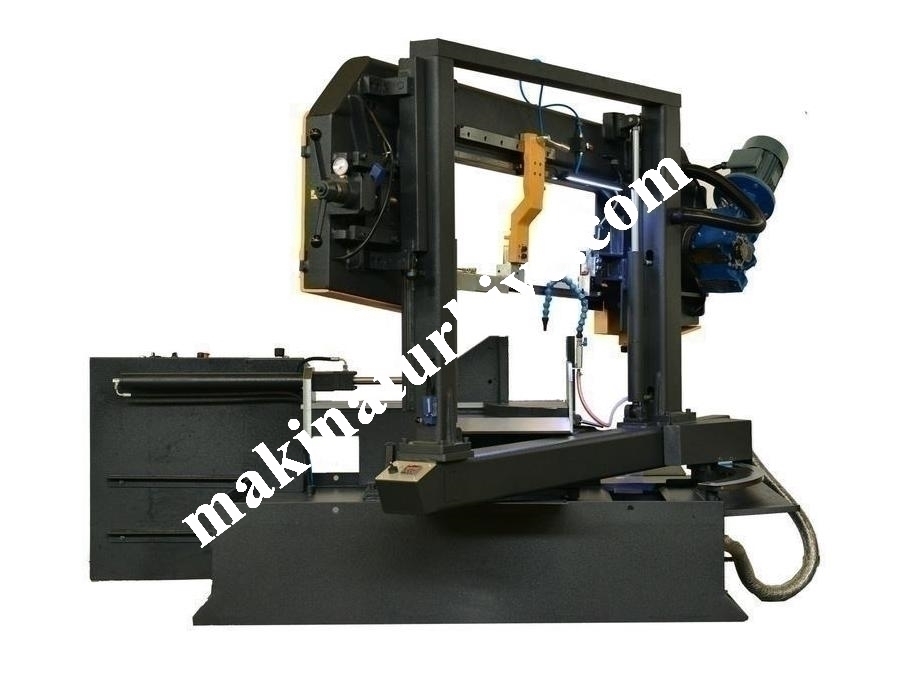

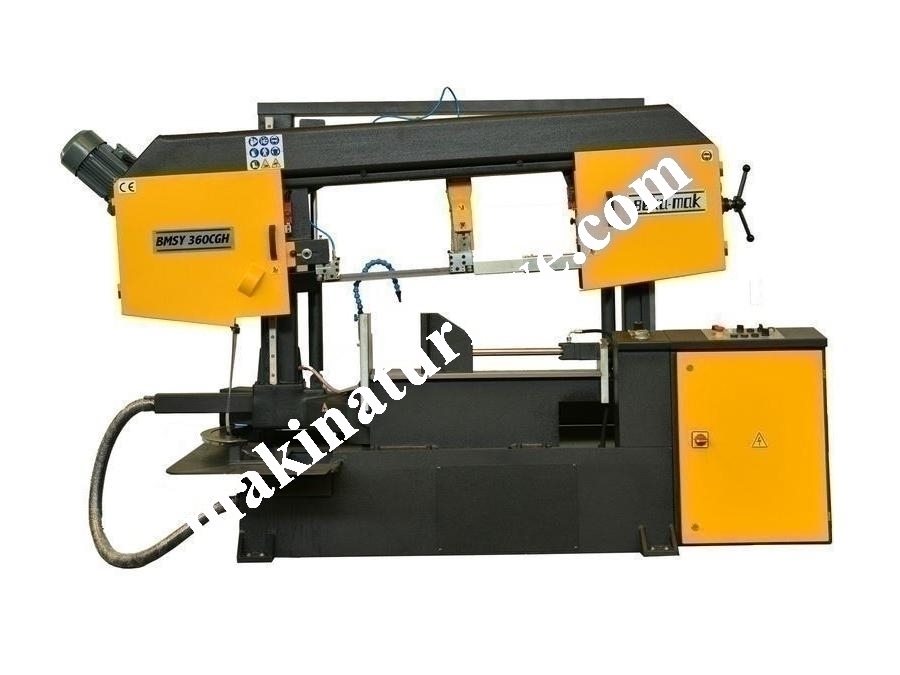

Yarı Otomatik Açılı Kesim Sütunlu Şerit Testere Makinesi Beka-Mak (BMSY-360CGH)
Ürün Açıklaması
Lineer kızaklı şerit testere tezgâhlarımız kesim adedi değişken
olan malzemelerin açılı olarak kesimleri için ideal modelimizdir.
Makinelerimizin üst gövdesine açı verilmek suretiyle 90° ile +30°arası
açılı kesim yapmak mümkündür.
Makinemizin kesim kapasitesi 90° lama kesimlerinde
360mm x 700mm, yuvarlak malzemede Ø360mm’dir.
Makinelerimizde kesim kontrolü hidrolik olarak yapılmakta ve kesim
bittikten sonra kendiliğinden malzeme yüksekliğine kalkmaktadır.
Malzeme yüksekliği testere üzerindeki yükseklik sensörü yardımıyla

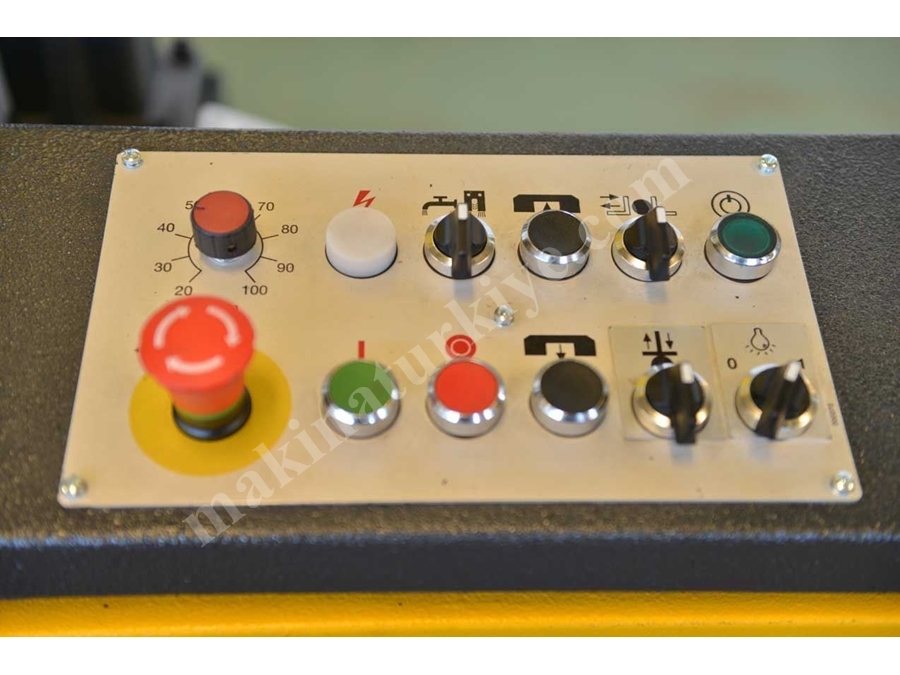

kontrol paneli üzerinden ayarlanıp izlenebilmektedir.
Makinemiz ayarlanan yükseklik seviyesine hızlı iniş sistemiyle yaklaşım
yaparak kesim süresinin azaltılmasını sağlar.
Kesim açısı hidrolik fren tertibatıyla sabitlenmektedir.
Açı üst gövde üzerinden ayarlanıp izlenebilmektedir.
Mekanik ve elektriksel olarak alınan önlemlerle makine ve insan
güvenliği en üst düzeyde tutulmuştur.
Teknik Detaylar
PARAMETRE
BİRİM
DEĞER
Yükseklik
mm
1800
Genişlik
mm
780
Uzunluk
mm
2850
Ağırlık
kg
1460
Malzeme Besleme Yüksekliği
mm
690

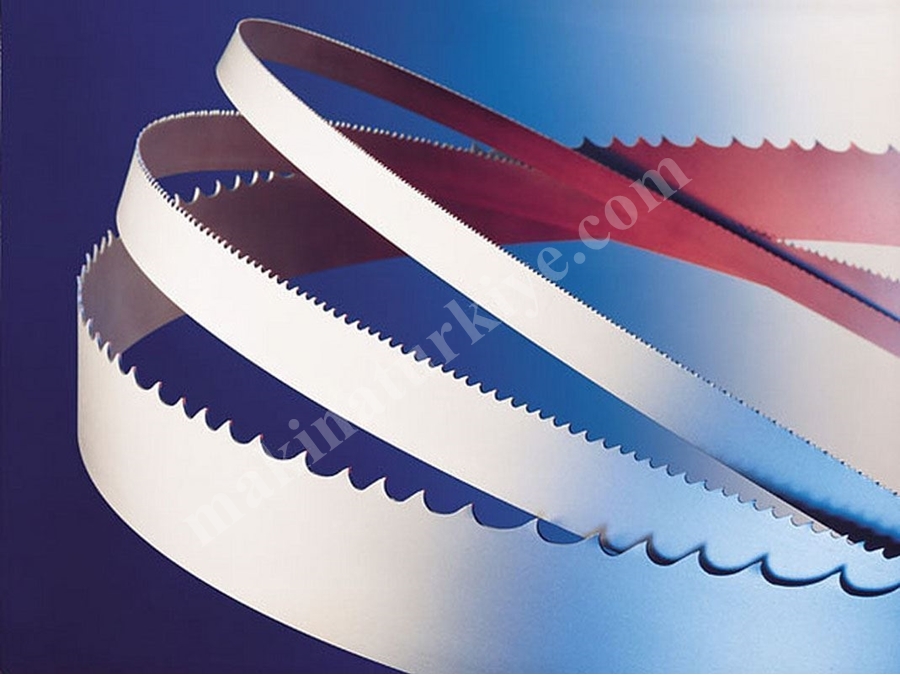

Şerit Testere Ölçüsü
mm
5200x34x1,1
Kesme Hızları
m/min.
20 - 100
Soğutucu Motor
kW
0,12
Hidrolik Motor
kW
0,55

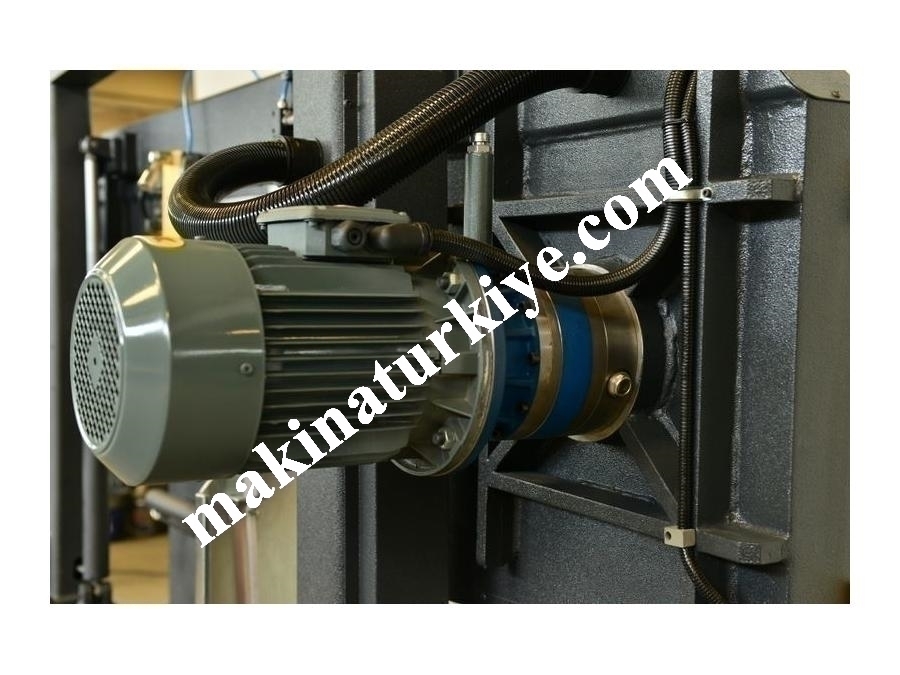

Ana Motor
kW
3
+60° Kare Kesme Kapasitesi
mm
290
+60° Lama Kesme Kapasitesi
mm
280 x 360
+60° Yuvarlak Kesme Kapasitesi
mm
325
+45° Kare Kesme Kapasitesi
mm
360
+45° Lama Kesme Kapasitesi
mm
450 x 360
+45° Yuvarlak Kesme Kapasitesi
mm
360
+30° Kare Kesme Kapasitesi
mm
360
+30° Lama Kesme Kapasitesi
mm
590 x 360
+30° Yuvarlak Kesme Kapasitesi
mm
360
Kare Kesme Kapasitesi
mm
360
Lama Kesme Kapasitesi
mm
700 x 360
Yuvarlak Kesme Kapasitesi
mm
360
Opsiyon Özellikler
Standart Özellikler
