| Advertisement No: | #00235534 |
| Category: | 601-1000 lt Air Compressors |
| Brand: | Aras Air |
| Model Type: | Jumbo 1000 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Kısıkköy / Menderes / İzmir |
| Sales Detail: | Bank Transfer, Negotiated |
| Delivery Status: | In stock |

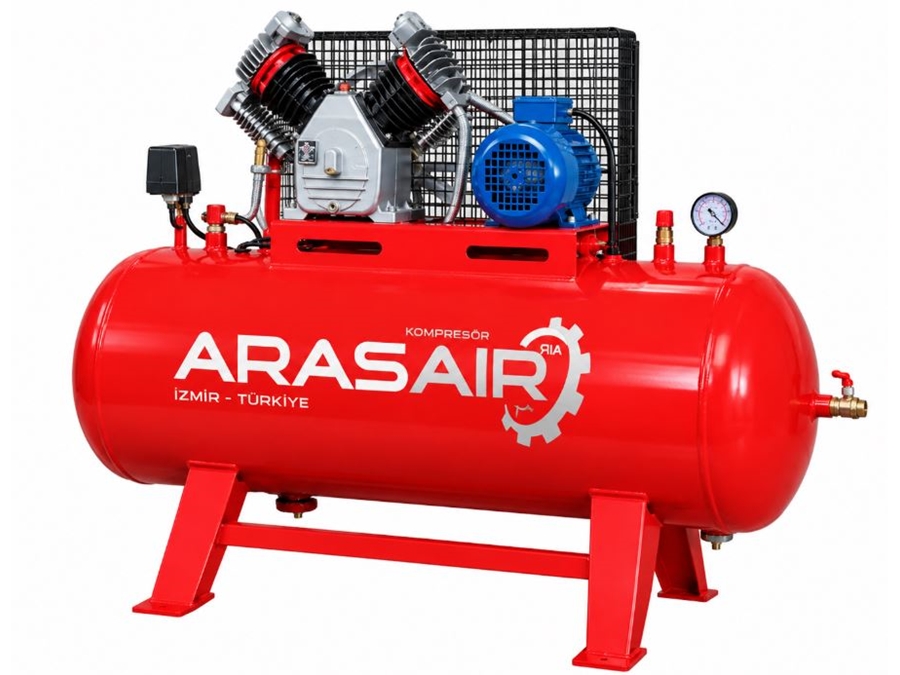

1000 Litre 10-15 Hp 3 Piston Air Compressor Aras Air Jumbo 1000 is a three-piston air compressor with a 1000-liter tank capacity and a motor power of 10-15 Hp. Certified by CE and made from special sheet metal with a thickness of 5 mm that is resistant to pressure, this compressor stands out with its long-lasting and robust structure. The cast iron body crankcases and corrosion-resistant electrostatic powder coating provide superior durability even under harsh working conditions. Equipped with a fixed safety valve that complies with occupational safety standards and a cast check valve system, the Aras Air Jumbo 1000 ensures efficient and safe operation. For models above 10 HP, a star triangle panel must be used, and support is provided to businesses in this regard. The compressor's air intake capacity of 1500-1900 lt/min is designed to meet high-volume air demands. General Features CE CERTIFIED PRESSURE RESISTANT, MANUFACTURED FROM 5 mm SPECIAL SHEET CAST IRON BODY CRANKCASES CORROSION-RESISTANT ELECTROSTATIC POWDER COATING FIXED SAFETY VALVE COMPLIANT WITH OCCUPATIONAL SAFETY STANDARDS CAST CHECK VALVE SYSTEM FOR PRODUCTS ABOVE 10 HP, A STAR TRIANGLE PANEL MUST BE USED. ASSISTANCE IS PROVIDED UPON REQUEST. SINGLE STAGE TYPES DESIGNED FOR 8 BAR, TWO STAGE TYPES FOR 12 BAR PRESSURES In types up to 4 kW, there is a preference for starting with single-phase electric motors. The compressor head, cylinder, valve, and crank are cast. Lubrication is done with the help of a rod integrated into the connecting rod. There is a mini ball valve integrated into the body that allows for easy draining of the compressor oil. A removable blind cap is attached to the outlet of this valve to prevent the risk of oil drainage. Air cooling is provided by the airflow created by the fan and the intercoolers. The condition of the oil can be easily monitored through the sight glass integrated into the compressor head. Pressure monitoring is done with a manometer. Operation control (idle - load operation) is provided by a pressure switch. The safety valve, set to +1 bar above the operating pressure of the compressor, ensures protection against excessive pressure in the system. The air filter element is placed inside a plastic filter housing that allows for easy replacement. The safety of the belt-pulley system is ensured by a closed enclosure in accordance with CE standards. The compressor unit is mounted on the air tank and can also be mounted externally. A ball valve is attached to the air outlet of the air tanks. Additionally, a mini ball valve is used for condensate water drainage at the bottom of the tanks. SAFETY SYSTEMS The compressor is a machine that works with a motor to compress air or other gases to pressures higher than atmospheric pressure. In environments where pressurized air is required, it is used not only to provide air support but also for cooling purposes in systems that operate with ammonia. The working principle of the compressor is to use the air taken from the outside by raising it to high pressures. While the advantages of pressurized air are significant, as the pressure level produced by the compressor increases, the electricity consumption also rises, leading to increased costs. Today, various types of compressors are used in businesses. Although piston compressors were common in the past, due to their noisy operation and the increased demand for larger volumes or pressures, they are being replaced by screw compressors in terms of efficiency. Screw compressors are easier to use and have higher efficiency compared to piston compressors. FACTORS TO CONSIDER WHEN CHOOSING A COMPRESSOR Aras Air Jumbo 1000 Technical Specifications Aras Air Jumbo 1000 is an ideal solution for meeting the air compressor needs in large industrial facilities with its high air intake capacity, durable structure, and CE certification. This model offers a combination of cost advantage and reliability for businesses seeking safe use, high performance, and efficiency.
Feature
Value
Tank Volume
1000 Liters
Voltage
380V
Motor Power
7.5 kW (10 Hp) / 11 kW (15 Hp)
Air Intake
1500 lt/min - 1900 lt/min
Pressure
8 bar
Number of Cylinders
3
Dimensions
195 x 165 x 97 cm
Weight
478 kg
Safety Certificate
CE Certified
