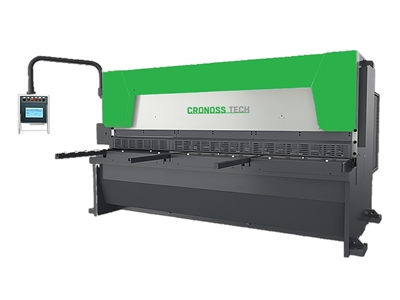

3 Meter X 6Mm - Hydraulic Guillotine Shear

HGM C 06 / 3100 – CNC ANGLE ADJUSTABLE HYDRAULIC GUILLOTINE SHEAR

STANDARD FEATURES

• CNC controlled, angle adjustable hydraulic guillotine shear

• CNC controlled blade gap, stroke and cutting angle adjustment

• Touchscreen CNC control unit (ELGO P40T)

• Automatic cutting angle adjustment according to material type and thickness

• Automatic stroke shortening for short sheet cuts (high speed and efficiency)

• Advanced CNC software infrastructure that reduces user errors

• Stress-relieved, heavy-duty steel construction body

• Hardened slides and roller upper table movement system

• 1000 mm CNC controlled, motorized and programmable back gauge

• Back gauge features:

  • Programmable retract function

  • Rising feature for long pieces

  • ±0.1 mm positioning accuracy

• Ball bearing sheet feeding front table

• Upper blade: 2 cutting edges
  Lower blade: 4 cutting edges

• High alloy special cutting blades

• Special hinge system that reduces maintenance needs

• Ruler, T-channel and stop front support arms (1000 mm)

• Cutting line illumination and shadow wire

• Foldable type front finger guard sheet

• Front and side safety guards

• Foot pedal

• Movable control lever

• Emergency stop buttons

• Safety equipment compliant with CE standards

OPTIONAL FEATURES

• Rear pneumatic sheet support system – Type 1

• Rear pneumatic sheet support system – Type 2 (with forward feature)

• Angle adjustable front bevel (0–180°)

• Front support arms of desired length

• Full-length foldable front finger guard cover

• Front finger safety light curtain

• Rear safety light barrier (compliant with CE standards)

• Special blade options

• Laser cutting line

• Oil heater or oil cooler

• Automatic or manual central lubrication system

• Air conditioning cooling system for electrical cabinet

• CNC controlled front sheet support and feeding arms

• Special throat depth (500 mm)

• Light type enclosure

TECHNICAL SPECIFICATIONS (C 06 / 3100 MODEL)

• Cutting Capacity (450 N/mm²): 6 mm

• Cutting Capacity (700 N/mm²): 4 mm

• Cutting Length: 3100 mm

• Cutting Angle: 0.5° – 2° (CNC controlled)

• Cutting Stroke: Automatically adjustable

• Throat Depth: 250 mm

• Back Gauge Movement Distance (X axis): 1000 mm

• Cutting Speed: 10 – 15 strokes/min

• Motor Power: 10 kW

• Oil Tank Capacity: 200 lt

• Machine Weight: ~6.7 tons

• Machine Dimensions (LxWxH):
  approximately 4830 × 2995 × 1975 mm

🔒 PRODUCTION NOTE (FIXED USE)
This machine is manufactured in Turkey with CRONOSS TECH engineering.
All sales, configuration, and after-sales processes are managed by CRONOSS TECH.
