12-14 Strokes/Minute Fully Automatic Thermoform Packaging Machine

SEAMLESS PACKAGING FOR HIGH CAPACITY BUSINESSES

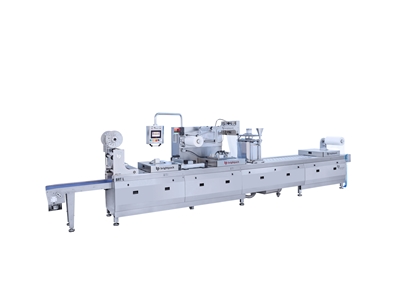

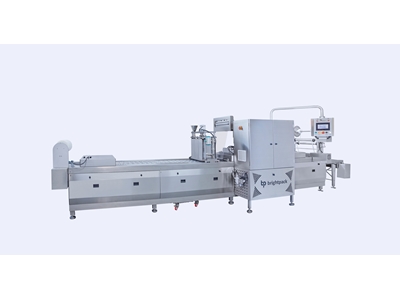

BRT -L/Med FULL AUTOMATIC THERMOFORM PACKAGING MACHINE
In this series we developed for the Medical Industry, you can safely package many different medical products in hygienic and sterile environments. Supported by thermal transfer printers, our machine stands out with its fast capacity values ​​and hygienic structure.

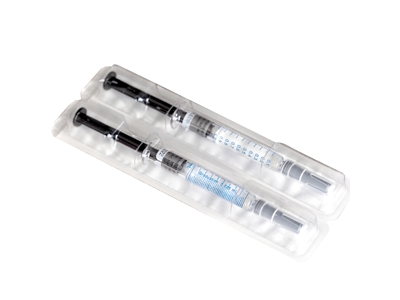

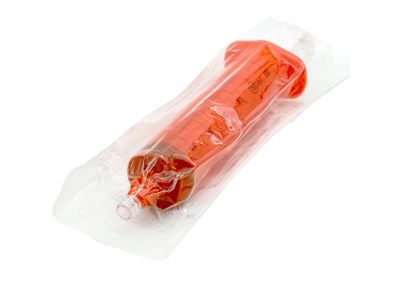

Medical Products - Medical Supplies
TECHNICAL SPECIFICATIONS
- Possibility of using Adhesive Soft FILM, Paper, Tyvek Unprinted, Photocell or Continuous Printed foil
- PLC and Servo motor controlled error monitoring system
- Unit can be added to finishing system such as label, inkjet, scale
- Max. . 5 mold formats
-All stainless steel material
-Both hard and soft foil options
-3 language support (Turkish - English - Arabic)



12-14 Strokes / Minute
Thermoform Packaging Machine
Capacity: 12-14 Strokes / Minute
Pitch: Maximum 250-400 mm
Lower Film: Formable (PA+PE) (PVC+PE) (PET+PE)
Upper Film: Adherable Soft Film( PA+PE)
Medical Paper-Tyvek
Film Width: 360-500 mm
Control Panel: 7” Inc Touch Color Screen
Chain Movement: Servo Motor
Electricity Consumption: 14-16 kW
Control Voltage: 24 Vdc
Machine Length: 5000-7500 mm.
