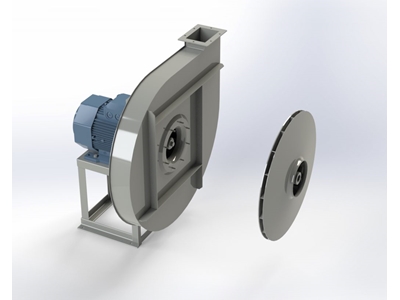

⌀205Mm 2950 Rpm Yüksek Basınçlı Salyangoz Fan

The temperature of the sucked liquid should not exceed 80°C without cooling fan and 150°C with cooling fan.

ErP : These fans are within the scope of Directive 2009/125 / EC. This law does not apply in the following cases:

- Operation in potentially explosive atmospheres (ATEX)

- Operation at high temperatures (fans designed with cooling fan)

- Operation at temperatures below -40 °C
- Working in toxic, corrosive or corrosive environments (use of materials such as AISI 304, AISI 316, manganese steels).
These series are centrifugal forward curved fans and therefore Ntarget = 42 is expected (Reg. UE N.327 / 2011).
Efficiency IE2 motors conforming to IEC 60034-30 are taken into account in ErP calculations.
special rate> In the case of 1.11, please note that Directive 2009/125 / CE applies, but these fans are not subject to the energy efficiency restrictions imposed and thus the verification of these parameters.

Euroofan APG 501/A Technical Specification
