⌀228Mm 3000 Rpm Yüksek Basınçlı Salyangoz Fan
Fiyat Sorunuz
Min. Sipariş 1
Adet
İlan No: | #00226770 |
Kategori: | Salyangoz Fan |
Marka: | Euroofan |
Model Tipi: | APRED 1001/A |
Ürün Tipi: | Satılık |
Ürün Durumu: | Sıfır |
Menşei: | İtalya |
Teslim Durumu: | Stokta Var |
Konum: | Orta Mah. / Bayrampaşa / İstanbul |
Kısa Detay: | 1 Yıl Garantili |
Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur
Danışman : Mübarek B.

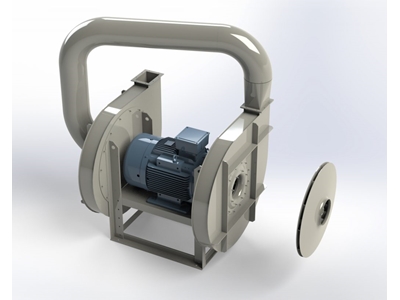

Euroofan APRED 1001/A
⌀228mm 3000 rpm Yüksek Basınçlı Salyangoz Fan
These fans are covered by Directive 2009/125 / EC. This law does not apply in the following cases:
- Operation in potentially explosive atmospheres (ATEX)
- Operation at high temperatures (fans designed with cooling fan)
- Operation at temperatures below -40 °C
- Working in toxic, corrosive or corrosive environments (use of materials such as AISI 304, AISI 316, manganese steels).
special rate> In the case of 1.11, please note that Directive 2009/125 / CE applies, but these fans are not subject to the energy efficiency restrictions imposed and thus the verification of these parameters.
The APRED-APRFD-APRGD series always has a specific ratio greater than 1.11.
- Operation in potentially explosive atmospheres (ATEX)
- Operation at high temperatures (fans designed with cooling fan)
- Operation at temperatures below -40 °C
- Working in toxic, corrosive or corrosive environments (use of materials such as AISI 304, AISI 316, manganese steels).
special rate> In the case of 1.11, please note that Directive 2009/125 / CE applies, but these fans are not subject to the energy efficiency restrictions imposed and thus the verification of these parameters.
The APRED-APRFD-APRGD series always has a specific ratio greater than 1.11.
Euroofan APRED 1001/A Technical Specification
AIR FLOW | 20 – 40 m3/min |
INPUT PRESSURE | 2850 – 2888 kg/m2 |
OUTPUT PRESSURE | 4000 – 4068 kg/m2 |
ENGINE BOARD | 225 M – 2 poles |
INSTALLED POWER | 45 kW |
ROTATION SPEED | 2950 rpm |
SPEED LIMIT | 3000 rpm |
LIQUID TYPE | Clean |
INLET FLANGE | ⌀228mm |
OUTLET FLANGE | 180x125mm |
WEIGHT WITHOUT MOTOR | 810 Kg |
SE 2 | 35 Kgm2 |
