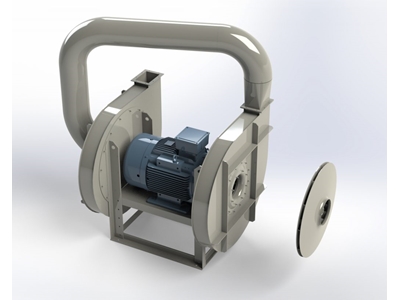

⌀320Mm 3000 Rpm Yüksek Basınçlı Salyangoz Fan



These fans are covered by Directive 2009/125 / EC. This law does not apply in the following cases:
- Operation in potentially explosive atmospheres (ATEX)
- Operation at high temperatures (fans designed with cooling fan)
- Operation at temperatures below -40 °C
- Working in toxic, corrosive or corrosive environments (use of materials such as AISI 304, AISI 316, manganese steels).
special rate> In the case of 1.11, please note that Directive 2009/125 / CE applies, but these fans are not subject to the energy efficiency restrictions imposed and thus the verification of these parameters).
The APRED-APRFD-APRGD series always has a specific ratio greater than 1.11.



AIR FLOW	71 – 90 m3/min
INPUT PRESSURE	3020 – 3050 kg/m2
OUTPUT PRESSURE	4330 – 4380 kg/m2
ENGINE BOARD	280 M – 2 poles
INSTALLED POWER	90 kW
ROTATION SPEED	2950 rpm
SPEED LIMIT	3000 rpm
LIQUID TYPE	Clean
INLET FLANGE	⌀320mm
OUTLET FLANGE	250x180mm
WEIGHT WITHOUT MOTOR	1250 Kg
SE 2	60 Kgm2
