⌀321Mm 3020 Rpm Yüksek Basınçlı Salyangoz Fan
İlan No: | #00226757 |
Kategori: | Salyangoz Fan |
Marka: | Euroofan |
Model Tipi: | APRF 1001/A |
Ürün Tipi: | Satılık |
Ürün Durumu: | Sıfır |
Menşei: | İtalya |
Teslim Durumu: | Stokta Var |
Konum: | Orta Mah. / Bayrampaşa / İstanbul |
Kısa Detay: | 1 Yıl Garantili |
Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur

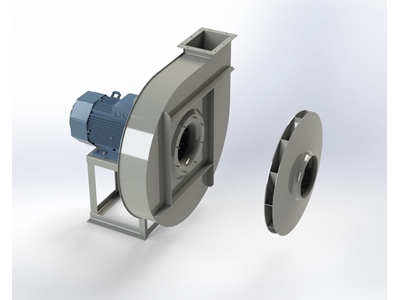

Euroofan APRF 1001/A
⌀321mm 3020 Rpm Yüksek Basınçlı Salyangoz Fan
The temperature of the sucked liquid should not exceed 80°C without cooling fan and 150°C with cooling fan.
ErP : These fans are within the scope of Directive 2009/125 / EC. This law does not apply in the following cases:
- Working in potentially explosive atmospheres (ATEX)
- Operation at high temperatures (fans designed with cooling fan)
- Operation at temperatures below -40°C
- Working in toxic, corrosive or corrosive environments (use of materials such as AISI 304, AISI 316, manganese steels).
These series are centrifugal backward curved fans and therefore Ntarget = 61 is expected (Reg. UE N.327 / 2011).
Efficiency IE2 motors conforming to IEC 60034-30 are taken into account in ErP calculations.
special rate> In the case of 1.11, please note that Directive 2009/125 / CE applies, but these fans are not subject to the energy efficiency restrictions imposed and thus the verification of these parameters.
Euroofan APRF 1001/A Technical Specification
AIR FLOW | 50 – 71 m3/minute |
INPUT PRESSURE | 1618 – 1644 kg/m2 |
OUTPUT PRESSURE | 2035 – 2061 kg/m2 |
ENGINE BOARD | 200 L – 2 poles |
INSTALLED POWER | 37 kW |
ROTATION SPEED | 2970 rpm |
SPEED LIMIT | 3020 rpm |
LIQUID TYPE | Clean |
INLET FLANGE | ⌀321mm |
OUTLET FLANGE | 250x180mm |
WEIGHT WITHOUT MOTOR | 290 Kg |
SE 2 | 30 Kgm2 |
