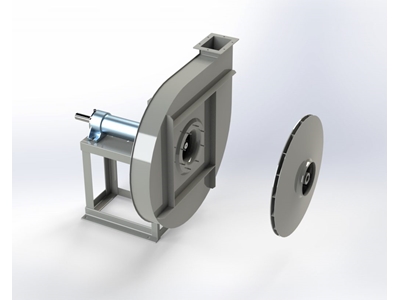

⌀638Mm 2600 Rpm Yüksek Basınçlı Salyangoz Fan



ErP : These fans are within the scope of Directive 2009/125 / EC. This law does not apply in the following cases:
- Operation in potentially explosive atmospheres (ATEX)
- Operation at high temperatures (fans designed with cooling fan)
- Operation at temperatures below -40 °C
- Working in toxic, corrosive or corrosive environments (use of materials such as AISI 304, AISI 316, manganese steels).
These series are centrifugal backward curved fans and therefore Ntarget = 61 is expected (Reg. UE N.327 / 2011).
Efficiency IE2 motors conforming to IEC 60034-30 are taken into account in ErP calculations.
special rate> In the case of 1.11, please note that Directive 2009/125 / CE applies, but these fans are not subject to the energy efficiency restrictions imposed and thus the verification of these parameters.



AIR FLOW	120 – 500 m3/min
INPUT PRESSURE	247 – 435 kg/m2
OUTPUT PRESSURE	250 – 460 kg/m2
ENGINE BOARD	N/A – N/A poles
INSTALLED POWER	N/A KW
ROTATION SPEED	1450 rpm
SPEED LIMIT	2600 rpm
LIQUID TYPE	Clean
INLET FLANGE	⌀638mm
OUTLET FLANGE	560x400mm
WEIGHT WITHOUT MOTOR	620 Kg
SE 2	38 Kgm2
