⌀638Mm 3000 Rpm Yüksek Basınçlı Salyangoz Fan
İlan No: | #00226760 |
Kategori: | Salyangoz Fan |
Marka: | Euroofan |
Model Tipi: | APRI 1001/A |
Ürün Tipi: | Satılık |
Ürün Durumu: | Sıfır |
Menşei: | İtalya |
Teslim Durumu: | Stokta Var |
Konum: | Orta Mah. / Bayrampaşa / İstanbul |
Kısa Detay: | 1 Yıl Garantili |
Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur

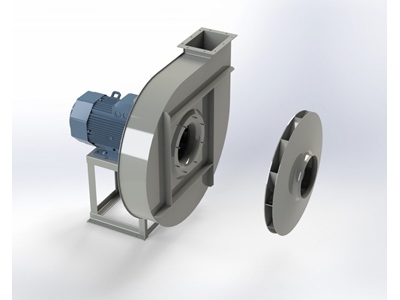

Euroofan APRI 1001/A
⌀638mm 3000 rpm Yüksek Basınçlı Salyangoz Fan
The temperature of the fluid should be above 80 °C without cooling to 150 °C by fan and cooling fan not sucked. ErP : These fans are within the scope of Directive 2009/125 / EC. This law does not apply in the following cases:
- Working in potentially explosive atmospheres (ATEX)
- Operation at high temperatures (fans designed with cooling fan)
- At temperatures below -40°C
work - Working in toxic, corrosive or corrosive environments (use of materials such as AISI 304, AISI 316, manganese steels).
These series are centrifugal backward curved fans and therefore Ntarget = 61 is expected (Reg. UE N.327 / 2011).
Efficiency IE2 motors conforming to IEC 60034-30 are taken into account in ErP calculations.
special rate> In the case of 1.11, please note that Directive 2009/125 / CE applies, but these fans are not subject to the energy efficiency restrictions imposed and thus the verification of these parameters.
Euroofan APRI 1001/A Technical Specification
AIR FLOW | 355 – 800 m3/minute |
INPUT PRESSURE | 1270 – 1560 kg/m2 |
OUTPUT PRESSURE | 1440 – 1880 kg/2 |
ENGINE BOARD | 355 L – 2-pole |
INSTALLED POWER | 250 kW |
ROTATION SPEED | 2950 rpm |
SPEED LIMIT | 3000 rpm |
LIQUID TYPE | Clean |
INLET FLANGE | ⌀638mm |
OUTLET FLANGE | 560x400mm |
WEIGHT WITHOUT MOTOR | 535 Kg |
SE 2 | 38 Kgm2 |
