| İlan No: | #00241585 |
| Kategori: | Asfalt Distribitörü |
| Marka: | Rotek Global Makina |
| Model Tipi: | RTK - 3600AD |
| Ürün Tipi: | Satılık |
| Ürün Durumu: | Sıfır |
| Menşei: | Türkiye |
| Teslim Durumu: | Stokta Var |
| Konum: | Ostim OSB Mah. / Yenimahalle / Ankara |
| Satış Detayı: | Havale / EFT, Görüşülür |

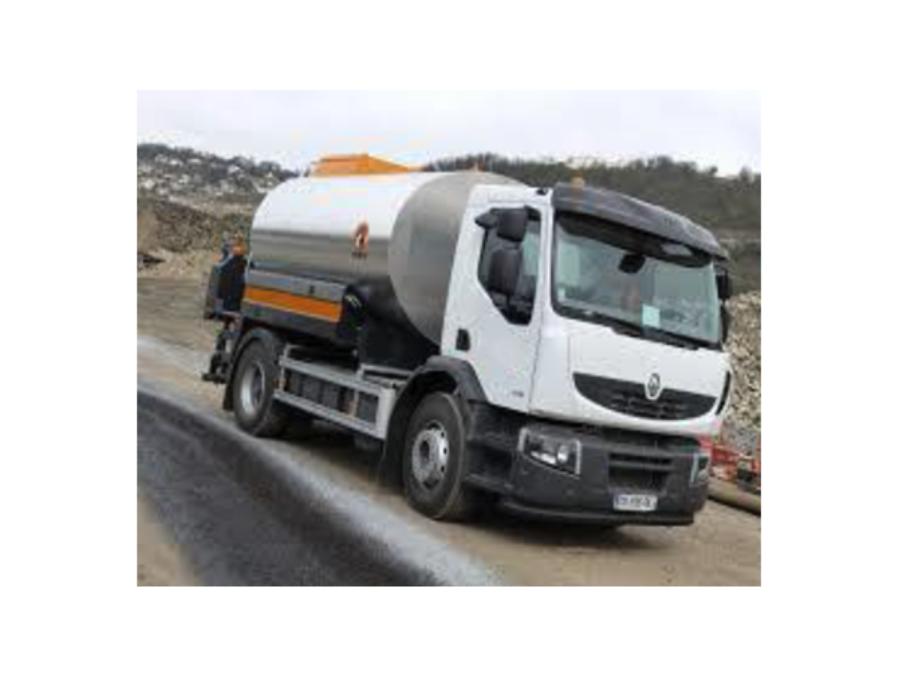

Rotek Global Makina RTK - 3600AD 3600 mm Asphalt Distributor Asphalt Distributor is a vehicle-mounted machine designed for efficient road construction and repair operations. It is used to spray bituminous binders, primers, and adhesives in controlled amounts and widths, ensuring the proper application of materials for smooth and durable road surfaces. This advanced machine is equipped with a highly insulated bitumen tank that can hold between 6,000 and 17,000 liters, making it versatile for different road construction needs while adhering to country-specific regulations and vehicle capacity requirements. The system's cutting-edge design ensures durability and reliability, making it an essential tool for modern paving and resurfacing projects. The bitumen tank is insulated with 50 mm rock wool and protected by a 1 mm aluminum plate, ensuring effective temperature control for bitumen during transport and application. This insulation not only maintains the optimal temperature of the bitumen but also reduces heat loss during longer operational hours, leading to greater efficiency. The diesel-powered heating system includes two high-capacity burners connected to U-type flame tubes, providing rapid and safe heating for the bitumen. With a burner capacity ranging from 190 kW to 310 kW, this system ensures consistent and fast heating even in cold weather conditions, allowing the machine to operate efficiently in various environmental conditions. The asphalt pump capacity ranges from 36 m³ (450 rpm) for the 3600 model to 50 m³ (1000 rpm) for the 5400 model, ensuring sufficient flow for large-scale projects. The spray bar lengths also vary, from 3,000 mm (6 groups) for the smaller model to 5,400 mm (15 groups) for wider application needs. The spraying range can be adjusted from 0.25 kg/m² to 3.0 kg/m², providing flexibility in bitumen application, whether for thin or thick coatings. Rotek Global Makina RTK - 3600AD 3600 mm Asphalt Distributor TECHNICAL SPECIFICATIONS DESCRIPTION RTK - 3600AD RTK - 5400AD 4X2 Vehicle Bitumen Tank Capacity (liters) 8000 8000 6X2, 6X4 Vehicle Bitumen Tank Capacity (liters) 13000 13000 8X2 Vehicle Bitumen Tank Capacity (liters) 17500 17500 Insulation Plate 1 mm Aluminum 1 mm Aluminum Insulation Material 50 mm Rock Wool 50 mm Rock Wool Drive Type Vehicle PTO Vehicle PTO Hydraulic System (Bitumen Pump) Hydrostatic Hydrostatic Hydraulic System (Equipment) - Open Hydraulic Circuit Hydraulic Oil Tank (liters) 50 50 Spray Bar Movement Pneumatic Hydraulic Heating System Diesel Burner, 2 Units Diesel Burner, 2 Units Burner Capacity (kW) Min. 190 - Max 310 Min. 190 - Max 310 Fuel Tank (liters) 140 140 Cleaning Tank (liters) 70 70 Control 7'' Color Panel, PID & Proportional 7'' Color Panel, PID & Proportional Asphalt Pump Capacity (m³) 36 (450 rpm) 50 (1000 rpm) Spray Bar Length (mm) 3000 (6) 5400 (15) Minimum Spreading Width (mm) 600 (6 Groups) 300 (18 Groups) Spraying Range (kg/m²) 0.25 - 3.0 0.25 - 3.0 Valve Controls Pneumatic Pneumatic
