3-4-6 Points (DNCR 150) Box Folding and Gluer Machine

‹ ›

Fiyat Sorunuz

Min. Sipariş 1 Adet

İlan No:	#00197805
Kategori:	Kutu Yapıştırma Makinesi
Marka:	Dinçer Makine
Model Tipi:	DNCR 150
Ürün Tipi:	Satılık
Ürün Durumu:	Sıfır
Menşei:	Türkiye
Teslim Durumu:	Stokta Var
Konum:	İkitelli OSB Mah. / Başakşehir / İstanbul
Kısa Detay:	2 Yıl Garantili
Satış Detayı:	Leasing'e Uygun, Havale / EFT, Görüşülür

Satıcıyla iletişim kur

DNCR Group Makina

DNCR Group Makina Dış Tic. Ltd. Şti.

Danışman : Ümit D.

+90 533 928 53 88

Şifre

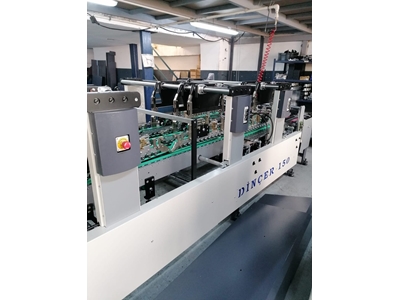

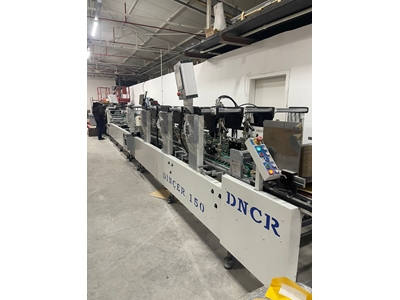

Dinçer Makina DNCR 150

In addition to box/carton folding, the machine is also compatible with corrugated boxes. (A 50 mm belt is available as an option.)
Machine general belt dimensions-Lower group: 40 mm & Upper pressure group: 24 mm
Easy belt replacement without the need for pulley or shaft removal.
Graphite bearing system that provides easy movement of the lower blades.
Top pressure system that can be easily adjusted according to the box thickness.
Chromed shafts and graphite bushings that enable the blade groups to be moved easily.
Roller bearings on the pulleys of the specially designed, long-lasting, specially designed lower conveyor belt system that will operate without any problems in the most difficult conditions.
Support profiles in the dimensions of 15x15 and 20x20.
Large disc, wide chamber lower arm cup and scrapers that do not require adjustment. 3mm and 6mm stainless disc and scraper group.
Digital location counters.
Types of material to be processed: 150-650 /m2 + E, F, C, B, EB, BC, EF, EC, wave corrugated.
Machine length: 18 m.
Carrier blade group that provides the lower blade movement manually-electrically.

Feeding / Loading Section:

12 pieces (1300mm x 8mm x 40mm) right and left independent and easily adjustable loading straps.
Adjustable vibration motor.
Diamond tongues group (2+1 pieces)
Independent belt tensioning.
Easy assembly-disassembly belt system.

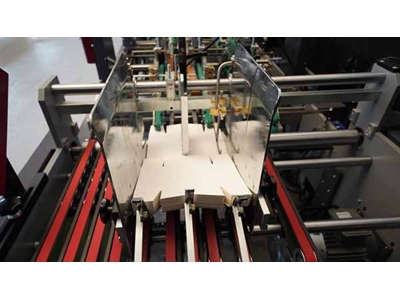

Pre-Fold Section:

Bottom Lock Application:

3-line lower conveyor belt and 3-line upper pressure group. (with scrollable setting)
2 flat ladles in 3 different sizes.
2 reverse scoops in 3 different sizes.
Folding nail group. (6 for 3 point machine / 8 for 4-6 point machine)
Folding nail steels in different sizes and structures that can be changed according to various boxes.
This application is carried out in pre-folding units.

Servo Fold Back Option for 4 & 6 Points:

DINCER Servo Fold-back System provides a continuous and regular 4-Point fold-back function. Thanks to the servo system, after the box ear length is entered into the system, all settings are automatically determined and folding of all box types within the machine size is provided without the need for any other data. The operator can easily make parameter changes depending on different types and weights thanks to the touch setting screen, and all box settings are stored in the electrical value memory for future use.
2 inverted ear wooden scoops in 2 different sizes
2 flat ear wooden scoops in 2 different sizes
Stainless bars in various sizes for 4 Point cans with lids.
2 servo motors for folding back.
This application is carried out in pre-folding units.
System group that can be adjusted automatically with elevator.
Different from each other, 2 types of 3-nail body 8 pieces and nails 24 pieces
1 kind of 2 nail body 6 pcs and nails 12 pcs

Final Folding Section:

Final folding unit designed for easy and convenient flow of boxes.
Chromed, easy-adjust chrome folding belt rollers that can be placed at progressively varying angles across the unit.
Folding belts with adjustable speeds independently of each other.
Tilt straps 3 pcs 40mm and 3 pcs 50 mm
Easily adjustable polyamide guides for box tilting.
Retrievable final sewing reel for special boxes.
Sword system in 2 different sizes, interchangeable for boxes of different sizes and ears.
Small coat (1 piece)

Decline Division :

Mechanism group that can be adjusted in all directions according to box size and shape.
Belt adjustment possibility while the machine is running.
Adjustable counter & striker device that displays the amount of boxes pasted.
4 KW AC droop motor.
Eccentric adjustment mechanism that can be adjusted up and down easily.
40 mm lower - 24 mm upper belt group
Electric moving carrier blade group.

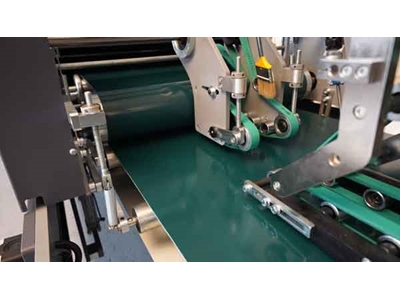

Press Section:

110 cm wide conveyor belt.
810 cm Press top press belt length. (2.5mm thickness)
1272 cm Press bottom press belt length. (2.5mm thickness)
Belt correction group, which prevents the belts from escaping to the right and left, separately from the bottom and top.
Pressure adjustable rollers.
A group of 12 pistons that create pressure between the rollers.
Non-marking, adjustable, special flexible material press top pressure belt. (30mm x 5mm x 815cm)
Front lower entry roller group that can be adjusted up and down according to the need.
Time regulator ensuring that the press speed is compatible with the can transfer from the machine.
Transport wheels for easy movement of the whole unit.
Press length: 7 m.
1.5 KW press motor

Overprint Group :

Box Correction System Group:

Provides edge alignment of folded boxes before entering the drop section.
It is a system applied beforehand for a more rigid adhesion of the boxes in the press section.
It transmits the circular movement to the striking nails with its pneumatic valve system.

Slapping System Group:

It straightens the folded boxes on the horizontal axis after falling into the press section.
It provides orderly sorting of boxes at the exit of the press section.

ELECTRICAL-ELECTRONIC AND AUTOMATION SYSTEM:

Electrical cabinet located separately from the machine for all electrical equipment.
Siemens automation control system S7-1200 PLC,
KTP-700 ( 7”) Siemens sensitive touch screen that provides access to all functions of the machine.
1 remote control.
Auxiliary control buttons on loading, falling and pressing.
Programmable alarm horn for security situations.
4 synchronized AC motors and Siemens drives (V20 Series).
Belt speed: 400 m/min
