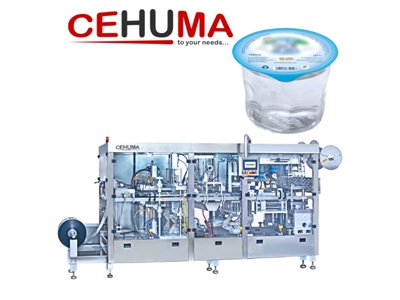

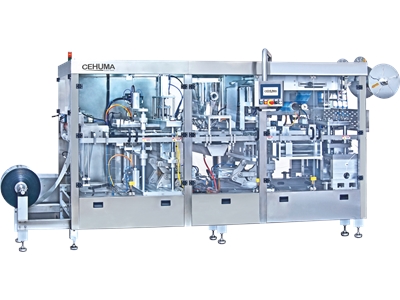

High Quality Best Standard Thermoform Cup Water And Juice Fill Seal Machine

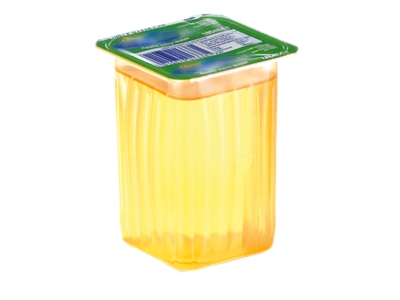

YZ thermoformers are mainly for automatic form fill seal applications and very often used for filling and sealing of water, juices, ketchup, mayo, honey, jam, chocolate paste, nut paste, cream cheese, coffee, milk, yogurt . The machine is a cam driven machine which means the plastic film forward move is done by a mechanical cam system leading a very high output preformance up 35 cycles per minute.

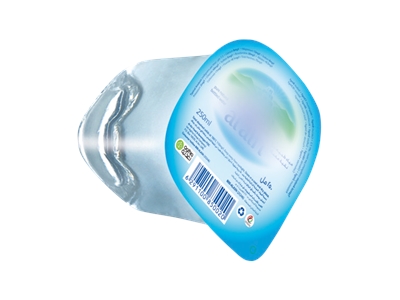

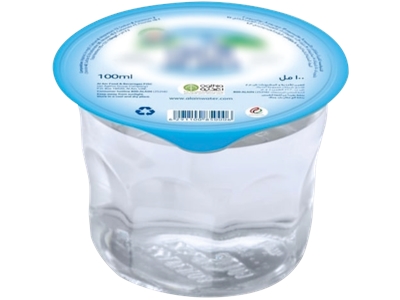

Cehuma YZ Series ,also called as horizontal form fill seal machines, very good for automatic filling of water, juice, carbonated and non-carbonated drinks, soda water, salt soda water and so on…

Since the package design is as important as the filling product itself, Cehuma offers a very wide range of attractive standard and non-standard package designs that can differantiate your product range at market shelves, make you one step ahead of your competetors. Further, hygienic filling is one of the most critical issue in HFFS machines where Cehuma focuses on each single project. With the special finishing process, Cehuma YZ series form fill seal machines has extra smooth surfaces on filling units that eliminates the growth of any microbic particles on the surface and makes the product safer than ever.

We also offer a complete solution to our customers including end of line robots for putting each product in the carton boxes, wrap and shrink them to make ready for shipment.

Finally, it is quite common to use PET or relevant films for in bottom of cup water, cup juices or other similar products and aliminium foils on top.



Technical specifications

• Capacity (Cyc/min) | 15-35
• Index (mm) | 70-200
• Web Width (mm) | 150-500
• Bottom Web Thickness (μm) | 550-1200
• Bottom Web Material | PVC/PET/PS/PP
• Top Web Material | AL+PET
• Machine Length (mm) | 5.500-11.000
• Energy Consumption (kW) | 8-25
• Electric Supply | 3 x 380V. 50 Hz.
• Air Pressure (Bar) | 6-8
• Cooling Water (C) | 10-16
