High Standard Full Automatic Thermoform Fill Seal Machine for Ketchup & Mayoinnase

High Standard Full Automatic Thermoform Fill Seal Machine for Ketchup & Mayoinnase

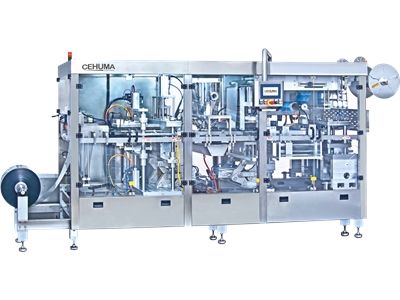

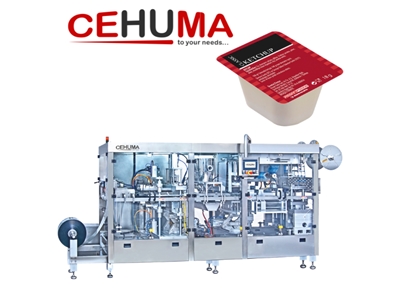

High Standard Full Automatic Thermoform Fill Seal Machine for Ketchup & Mayonnaise is designed to deliver precise, hygienic, and efficient filling and sealing of viscous condiments like ketchup and mayonnaise. This fully automatic machine meets the highest industry standards, ensuring consistent product quality and secure seals that preserve freshness. Ideal for large-scale production, it offers reliable performance with high-speed operation, making it an essential tool for manufacturers. With advanced technology and robust construction, this machine enhances production efficiency and ensures every package of ketchup or mayonnaise is perfectly filled and sealed, ready for distribution.

YZ Thermoformers are primarily designed for automatic form fill seal applications, making them ideal for filling and sealing a variety of products such as water, juices, ketchup, mayonnaise, honey, jam, chocolate paste, nut paste, cream cheese, coffee, milk, and yogurt. These machines are cam-driven, meaning that the plastic film's forward movement is controlled by a mechanical cam system, ensuring a very high output performance of up to 35 cycles per minute.

Advanced Solution for Viscous Fluids

The Cehuma YZ Series, also known as horizontal form fill seal machines, are particularly well-suited for the automatic filling of viscous fluids like ketchup, mayonnaise, honey, jam, yogurt, cream cheese, chocolate paste, marmalade, sauces, and sesame oil. Viscous fluids are especially prone to microbial growth due to minimal processing before packaging, making food safety a critical consideration. Choosing the right thermoform fill seal machine is vital for these types of products. The Cehuma horizontal form fill seal machines ensure optimal performance with high hygienic standards, making them the ideal choice for filling and sealing viscous fluids.

Additionally, Cehuma offers a complete turnkey solution, including end-of-line robots for placing products in cartons, wrapping, and shrinking them to prepare for shipment. It is common to use PS or similar films for the bottom web and aluminum foils on the top web.

Technical Specifications

• Capacity (Cyc/min): 15-35

• Index (mm): 70-200

• Web Width (mm): 150-500

• Bottom Web Thickness (μm): 550-1200

• Bottom Web Material: PVC/PET/PS/PP

• Top Web Material: AL+PET

• Machine Length (mm): 5,500-11,000

• Energy Consumption (kW): 8-25

• Electric Supply: 3 x 380V, 50 Hz

• Air Pressure (Bar): 6-8

• Cooling Water (C): 10-16

Advantages

• Entire Stainless Steel Structure: Ensures durability and hygiene.

• Safety Standards According to EC Regulations: Compliance with European safety regulations.

• Large Touch Screen: User-friendly interface for easy operation.

• Wide Range of Cup Design Possibilities: Flexibility to accommodate various packaging designs.

• Advanced Punching Technology: Ensures precise cutting and sealing.

• Servo Technology: Enhances precision and efficiency in operations.

• Programmable Advance Speed: Allows for customizable production speeds.

• Multi-language Selection: Accommodates global use with multiple language options.

• Precise Dosing: Guarantees accurate filling for every product.

Options

• Automatic Dosing: Customizable dosing systems for different products.

• Water Dosing: Specialized dosing for water products.

• Juice Dosing: Precise dosing systems for juice products.

• Viscous Fluids Dosing: Optimized for thick, viscous liquids like sauces and pastes.

• IP65 Level of Protection: Enhanced protection against dust and water.

• UV Lights Sterilization: Ensures products are sterilized during packaging.

• Hepa Filter: Maintains air purity during the production process.

• CIP (Clean In Place) Integration: Automated cleaning system for easy maintenance.

• Labeling Systems: Integrated systems for applying labels to packaged products.

YZ Thermoformers provide an advanced, reliable solution for automatic form fill seal applications, especially in handling viscous fluids where hygiene and precision are paramount. With a robust stainless steel structure, compliance with EC safety standards, and a wide range of customizable options, these machines are designed to meet the demands of modern packaging operations.
