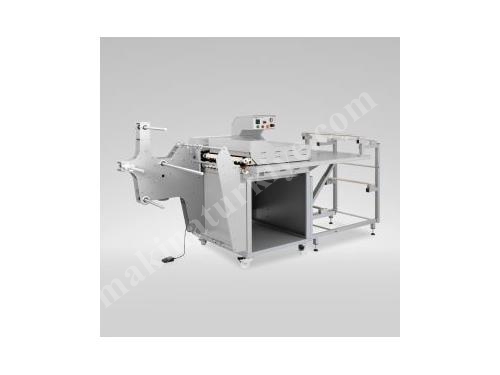

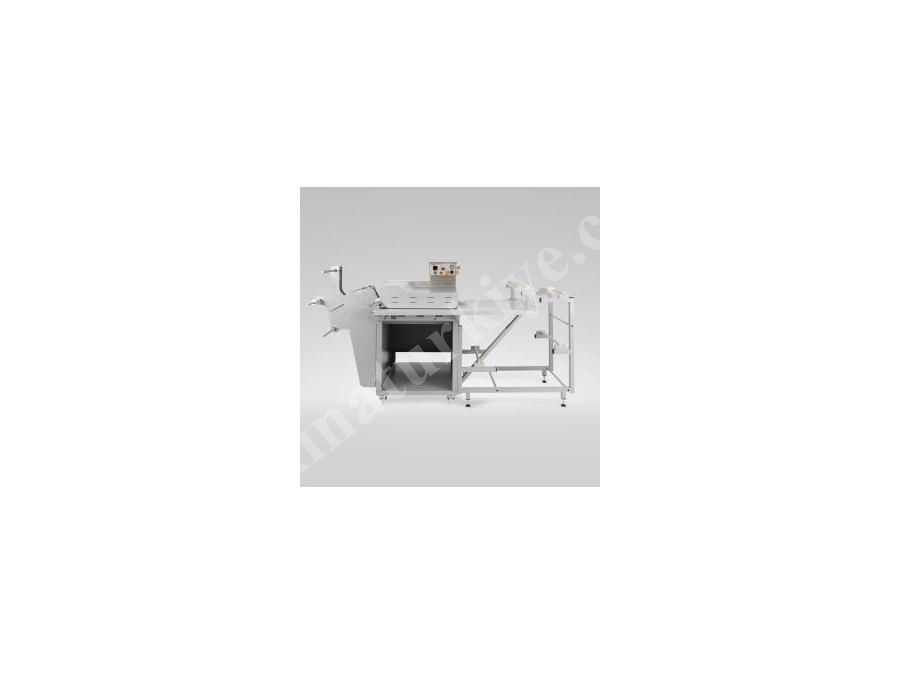

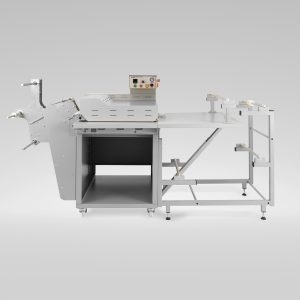

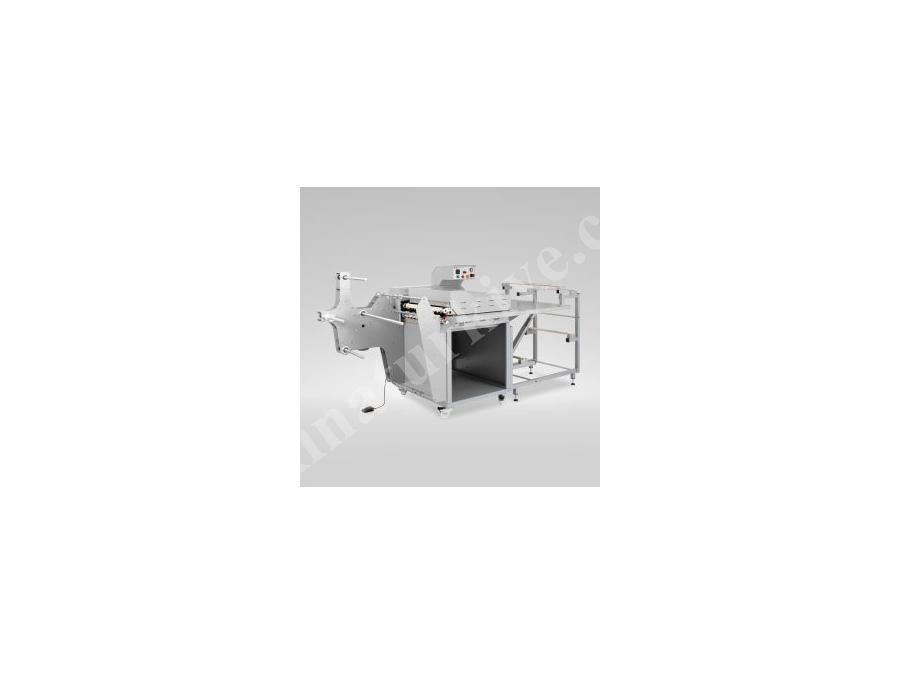

STP 600 TKM 60 Cm Fusing Machines

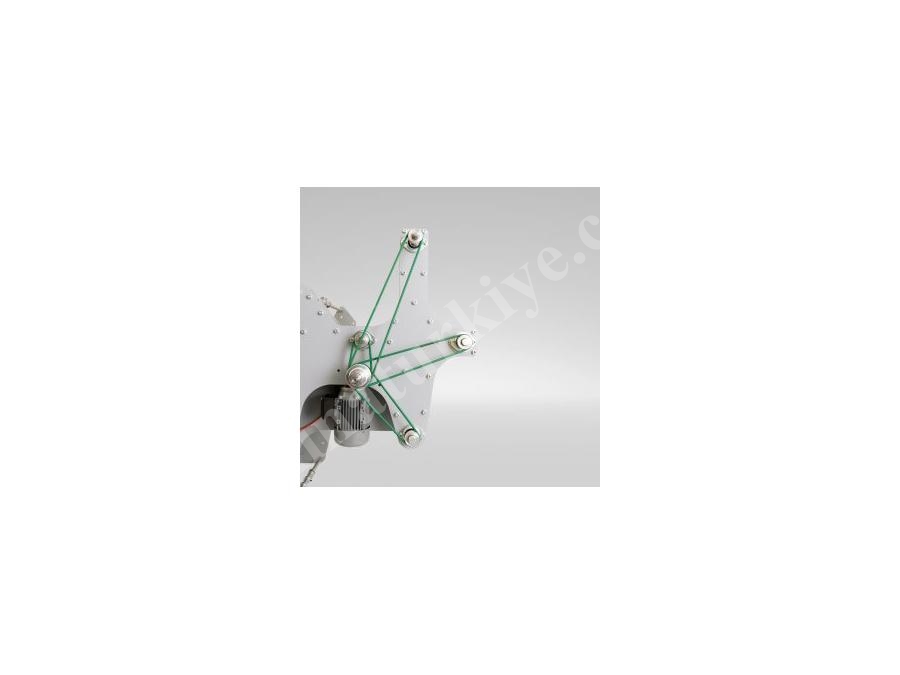

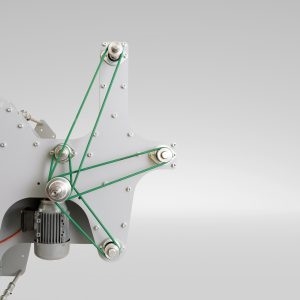

It is used for fusing and ironing in the ready-made clothing industry. Its area of application generally relates to the smooth and rapid fusing of continuous interlining fused on the trouser waistbands. Winding is possible at 4 or 5 controlled speeds depending on the machine width. It is equipped with a nonslip tape control system and the pneumatic pressure offers a better quality fusing. The special splicing tapes used in our machines eliminates the trace problem on the product worked and doubles the tape lifetime. Tape width varies between 40 cm and 60 cm depending on models. Our machines are equipped with two resistance groups; i.e., upper and lower resistance systems. Precise heat adjustment is possible by means of the electronic thermostat. Tape is cleaned and fused products are taken by means of the rotary silicone scrapers of machines

MCN Machine STP 600 TKM Technical Specification



TECHNICAL CHARACTERISTICS	STP 400 TKM	STP 600 TKM
RESISTANCE POWER	5 KW	7 KW
FUSING DURATION	5 – 30 SEC	5 – 30 SEC
PRESSURE	0 – 6 KG	0 – 6 KG

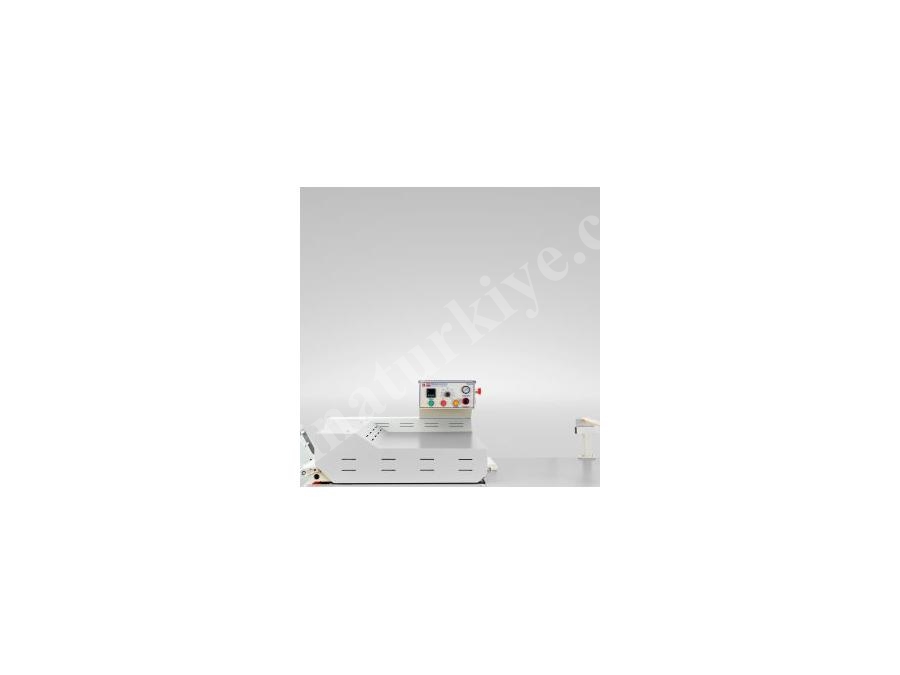

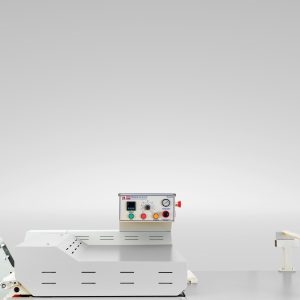

MAX TEMPERATURE	0 – 200 °C	0 – 200 °C
MAX TAPE SPEED	0 – 10 m/min	0 – 10 m/min
VOLTAGE	380V AC 50 HZ	380V AC 50 HZ
DIMENSIONS	90 x 290 x 140 cm	110 x 290 x 140 cm
WEIGHT	287 kg	335 kg
