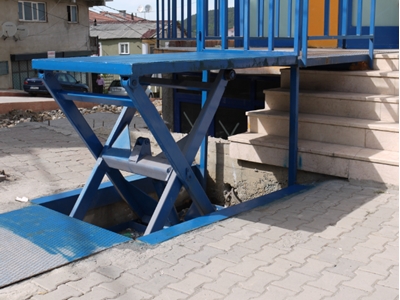

Tek Makaslı Platform - Hidrolik Yük Platformu

Miles 1021

1 Ton Tek Makaslı Platform - Hidrolik Yük Platformu

Single Scissor Lift - Hydraulic Load Lift

Miles 1021 Tek Makaslı Platform Teknik Özellikleri:

Kaldırma Kapasitesi (kg):                           1000 kg

Platform Ölçüleri (mm):                              1100x1700

Pompa (cc):                                                 8,2

Motor (kW):                                                  2,2

Valf Grubu:                                                  LUEN

Seyir Mesafesi (Min/Max) (mm):                 0-750

Motor Besleme Voltajı (V/AC):                    380

Kuyu Ölçüleri (L x W mm):                          1200x1800

Kuyu Derinliği (mm):                                   400

Miles 1021 Single Scissor Lift Technical Specifications:

Lifting Capacity (kg): 1000 kg

Platform Dimensions (mm): 1100x1700

Pump (cc): 8.2

Engine (kW): 2.2

Valve Group: LUEN

Travel Distance (Min/Max) (mm): 0-750

Motor Supply Voltage (V/AC): 380

Well Dimensions (L x W mm): 1200x1800

Well Depth (mm): 400
