50X40 Automatic Transfer Heat Press And Sequin Application Machines

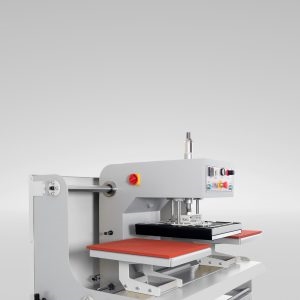

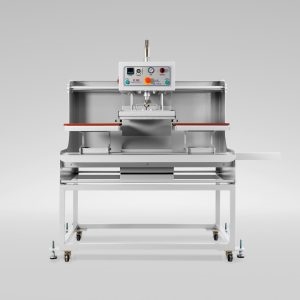

It is used in transfer heat press, sequin application, and printing processes of especially sewn products. Transfer heat press operates via a pneumatic system. The head on the upper heater table is loaded onto the induction shaft and it can; thus, very easily moves automatically rightward and leftward. This body is also equipped with a control panel. Heat, time, and pressure can be adjusted on the control panel. Transfer heat pressure can be adjusted between 0 to 6 bars depending on the assignment. The upper heater table is coated with a special Teflon tape that prevents any damage to the products worked. The lower tables have; on the other hand, rubber sponges with special silicon resistant against heat and pressure.

TECHNICAL CHARACTERISTICS	UBP 50×40	UBP 50×70
RESISTANCE POWER	6 KW	8 KW
FUSING DURATION	10 – 60 SEC	10 – 60 SEC
PRESSURE	0 – 10 KG	0 – 10 KG
MAX TEMPERATURE	0 – 200 °C	0 – 200 °C
VOLTAGE	380V AC 50 HZ	380V AC 50 HZ
DIMENSIONS	100 x 180 x 170 cm	100 x 180 x 170 cm
WEIGHT	450 kg	550 kg
