Full Automatic Concrete Blocks Curbstone and Paver Machine Briket Parke Taşı Makinası

Aradsan TPRN 3036

 Full Automatic Concrete Blocks Curbstone and Paver Machine

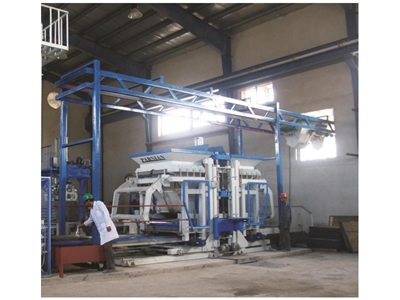

Fully Automatic Concrete Block Machine TP.RN3036 is produced by Aradsan Machine This system can produce different types of concrete parts such as curbstone, cement block, pavers and flower box.

It is possible just by changing the mould.

The production line of Fully Automatic concrete block machine TP.RN3036 from the basic to advance phase (weighing material , mixing materials ,production ,curing system and packing) is done by machine and without human interposition.

According to advancement of science and technology, updated production of urban and industrial material and every day progress in concrete production, Aradsan Machine present it’s products to markets based on the internal and international standards.

The aim of this system Fully Automatic Concrete Block Machine TP.RN3036 is improving the quality of concrete parts, producing more products, reducing the labor and production expenses.

Facing problems such as lack of experts, impossibility of quality control in traditional products because of lack of using well equipped laboratories and modern machinery for good concrete, lack of knowledge of materials used in traditional methods and other problems has made this company to design and manufacture machines capable of producing curbstone,Cement block, Hollow Block, Canivo ,pavers and flower box for the first time in Turkey.

1/1: Heavy machine frame was made from special industrial box that can tolerate pressure from jacks and shakes of vibrators.

1/2: Specification of tools that was used in TP.RN 3036

--pump generator : VEM or WAT

--Vibrate generator : WAT

--All of electromotor regulation : GAMAK or WAT

-- Jacks piston tubes : Germany type (BOSH OR BOHLER Mark )

--Moulds are made from integrated sheet (STD 52)

-- Hydraulic hoses : FLEX or SEL

--Machine control taps : Italian mark - DEPLOMAT

-- Moulds are made of ST52 sheets. types and parts that are exposed for corrosion will be made from non corrosion sheets

-- control panel includes (TELE- SIEMENS) made in Germany, France TELE pieces and touch screen 15 inch monitor

-- All of micro switches and telemechanic sensors are of France or Muller Germany Mixer internal sheets are made of Sweden Hradox OR Dillidur Germany
