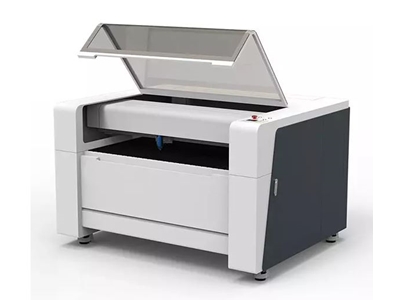

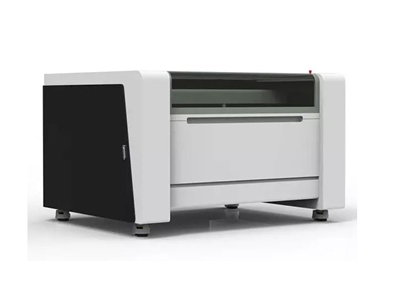

150 W Non-Metal Laser Cutting Machine

Compared with CO2 laser engraving machine, Metal and non-metal desktop CO2 laser cutting machine has more processing range, it can not only cut non-metal materials such as acrylic, leather, rubber, but also realize what you want metal material about 1.2mm stainless steel and carbon steel like. CO2 laser cutter is widely used in advertising industry, handicraft production, decoration, rubber sheet furniture and other industries. It is the most suitable machine for customers who want to cut metal and nonmetal materials.

CO2 laser tube

THE LASER TUBE POWER OF THE CO2 LASER CUTTING MACHINE IS OPTIONAL BETWEEN 40W AND 280W AND CUT MATERIALS OF DIFFERENT THICKNESS WITH DIFFERENT POWERS ARE AVAILABLE.

KNIFE COUNTER

CAN BE USED TO CUT HARD MATERIALS WITHOUT A RELATIVELY LONG SERVICE TIME

METAL AND NONMETAL CUTTING LASER HEAD

IT CAN BE USED TO CUT METAL AND NON-METAL MATERIALS. AT THE SAME TIME AUTOMATIC FOCUSING CAN BE PERFORMED.

TECHNICAL DATA

WORKING AREA 1300X900

LASER POWER 150W

POSITIONING ACCURACY 0.01+0.01MM

CUTTING SPEED 0-40000MM/MIN

ENGRAVING SPEED 0-20000MM/MIN

COOLING TYPE WATER COOLING

COOLING SOFTWARE DSP CONTROL SYSTEM

HIGHEST SCANNING SENSITIVITY 2500DPI

CO2 Laser Cutter and Engraver Features

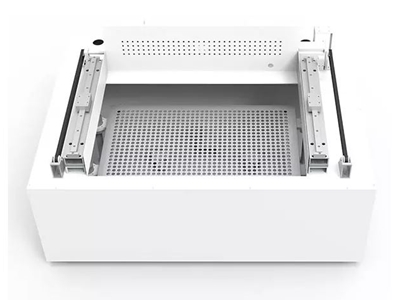

KNIFE BENCH

CO2 LASER ENGRAVING MACHINE CAN BE USED WITH TWO CUTTING TABLES. ONE OF THEM IS THE CELLULAR MACHINE, ESPECIALLY FOR CUTTING FLEXIBLE MATERIALS SUCH AS LEATHER; THE OTHER IS THE KNIFE TABLE, MAINLY MADE OF WOOD, MDF, ACRYLIC ETC. CUTS HARD MATERIALS. USERS CAN CHOOSE TWO TYPES OF COUNTERTOPS AT THE SAME TIME AND CHANGE THE COUNTERTOP FROM DIFFERENT MATERIALS TO GET BETTER RESULTS.

SLIDE RAIL

THE MOST ADVANCED GRINDING AND THREADING PROCESS USES ONE-TIME FACE GRINDING TECHNOLOGY FOR HIGHER PARALLELABILITY WITH THE HIGHEST LEVEL OF PRECISION.

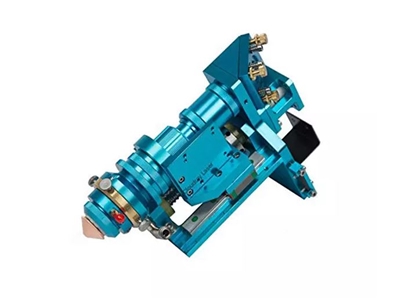

METAL AND NONMETAL LASER HEAD

A MULTIPURPOSE MACHINE CAN CUT METAL MATERIALS AND NON-METAL MATERIALS AND CAN ALSO HAVE AUTOFOCUS WHILE CUTTING METAL MATERIALS

WATER COOLER

DUAL TEMPERATURE DUAL PUMP CHILLER, TWO-WAY WATER COOLING, CAN COOL THE LASER MAIN BODY AND LASER HEAD AT THE SAME TIME FOR MULTIPLE USE, SAVING COST AND REDUCING SPACE WASTE.

CO2 LASER CUTTER AND ENGRAVING UPGRADES

CCD

THE CCD CAMERA HAS 1.3 MILLION PIXELS THAT CAN CAPTURE THE CONTOUR OF THE CUT OBJECT AND AUTOMATICALLY CUT THE EDGE. IT IS COMMONLY USED IN THE TRADEMARK SECTOR. WITH THE PERSONALIZED DEVELOPMENT OF THE READY-TO-WEAR INDUSTRY, THE DEMAND FOR SPECIALLY SHAPE TRADEMARKS IS INCREASING. TRADITIONAL CUTTING PROCESSES COULD NOT MEET THE NEEDS, BUT THE CAMERA LASER CUTTING MACHINE IS PERFECT TO CUT SPECIAL SHAPE BRANDS WITH ADVANCED TECHNOLOGY CONFIGURATION, STABLE PERFORMANCE AND FASTER.

ROTATING AXIS

THE CO2 LASER ENGRAVING MACHINE IS EQUIPPED WITH TWO ROTARY SHAFT; ONE OF THESE IS A 50 MM DIAMETER ROTARY SHAFT WIDELY USED TO MARK RINGS AND METAL PENS.

LIFTING TABLE

TO MAKE IT EASIER FOR THE USER TO CARVE OR CUT LARGER MATERIALS, THE MACHINE CAN BE EQUIPPED WITH A LIFTING PLATFORM. WHEN PLACING LARGE OBJECTS, THE MATERIAL IS ALSO CUT AND CARVED IN HIGH QUALITY.

ROTARY AXIS - THREE-WHEEL ROTARY AXIS, FOUR-WHEEL ROTARY AXIS

A LASER ENGRAVING MACHINE REQUIRES ROUND, CYLINDRICAL AND CONICAL OBJECTS SUCH AS GLASSES OR BOTTLES. THEREFORE, OREE LASER HAS CUSTOMIZED TWO ROTARY SHAFT FORMS, THREE CLAW ROTARY AXES AND FOUR-WHEEL ROTARY SHAFT FOR YOU.

THE TRIPLE CLAW ROTARY AXIS HAS A CLAMPING DIAMETER OF 80 MM AND IS COMMONLY USED FOR ENGRAVING PROTOTYPE OBJECTS SUCH AS PENS;

THE FOUR-WHEEL ROTATING AXIS CAN ENJOY CYLINDRICAL OBJECTS SUCH AS GLASSES MADE UP OF DIFFERENT MATERIALS.

THEREFORE, OREE LASER HAS CUSTOMIZED THE TWO ROTARY SHAFT FORM, THREE CLAW ROTARY AXES AND FOUR-WHEEL ROTARY SHAFT FOR YOU
