50X70 Automatic Transfer Heat Press And Sequin Application Machines
İlan No : | #00188755 |
Kategori: | Gezer Kafa Transfer Baskı Presi |
Marka: | MCN Saben |
Model Tipi: | UBP 50x70 |
Ürün Tipi: | Satılık |
Ürün Durumu: | Sıfır |
Menşei: | Türkiye |
Teslim Durumu: | Stokta Var |
Konum: | Yenibosna (Merkez) Mah. / Bahçelievler / İstanbul |
Satış Detayı: | Takas Olur, Vade Olur, Leasing'e Uygun, Kredi Kartına Taksit, Çekle Şatış, Havale / EFT, Kredi Kartı, Krediye Uygun, Kosgeb Destekli |
Fiyat Sorunuz
Min. Sipariş 1
Adet
MCN Makina
|
MCN Machine UBP 50×70

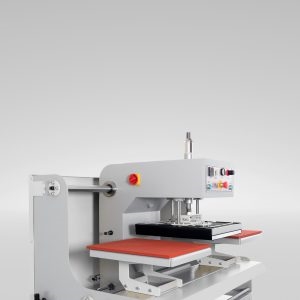

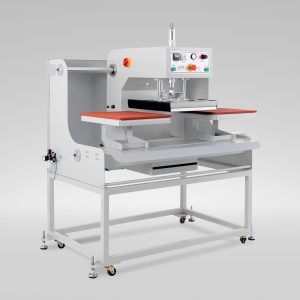

50X70 Automatic Transfer Heat Press And Sequin Application Machines
It is used in transfer heat press, sequin application, and printing processes of especially sewn products. Transfer heat press operates via a pneumatic system. The head on the upper heater table is loaded onto the induction shaft and it can; thus, very easily moves automatically rightward and leftward. This body is also equipped with a control panel. Heat, time, and pressure can be adjusted on the control panel. Transfer heat pressure can be adjusted between 0 to 6 bars depending on the assignment. The upper heater table is coated with a special Teflon tape that prevents any damage to the products worked. The lower tables have; on the other hand, rubber sponges with special silicon resistant against heat and pressure.
MCN Machine UBP 50×70 Technical Specification
TECHNICAL CHARACTERISTICS
|
UBP 50×40
|
UBP 50×70
|
RESISTANCE POWER
|
6 KW
|
8 KW
|
FUSING DURATION
|
10 – 60 SEC
|
10 – 60 SEC
|
PRESSURE
|
0 – 10 KG
|
0 – 10 KG
|
MAX TEMPERATURE
|
0 – 200 °C
|
0 – 200 °C
|
VOLTAGE
|
380V AC 50 HZ
|
380V AC 50 HZ
|
DIMENSIONS
|
100 x 180 x 170 cm
|
100 x 180 x 170 cm
|
WEIGHT
|
450 kg
|
550 kg
|
